20340 - Toro 22" Recycler Walk-Behind Mower with SmartStow (SN: 316000001 - 316999999) (2016) HANDLE AND CONTROL ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower with SmartStow

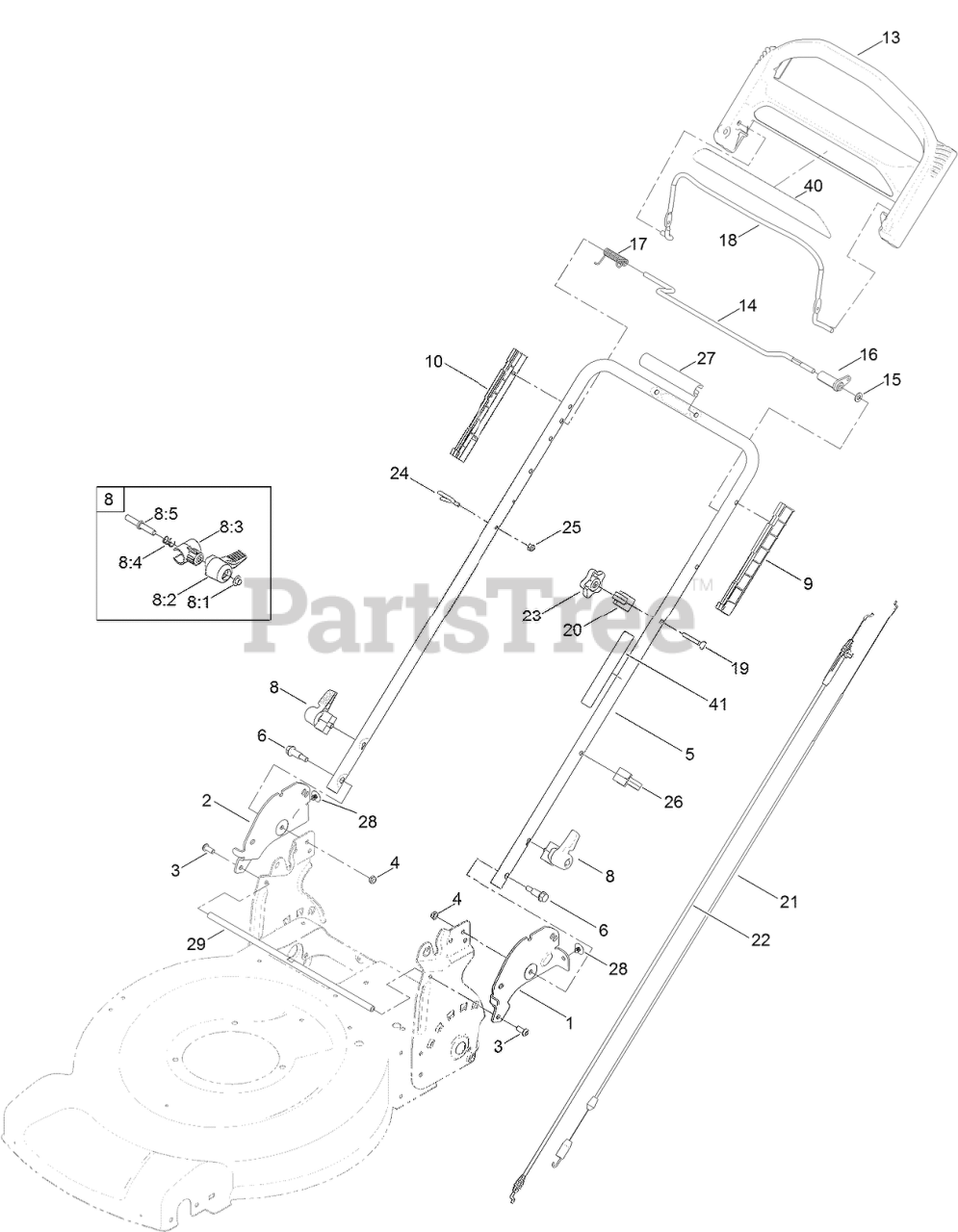

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 132-4453-03

PLATE-HANDLE, LH

$9.99

$

Usually ships in 3-6 days

0

2

Toro 132-4454-03

PLATE-HANDLE, RH

$9.99

$

Usually ships in 3-6 days

0

3

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

0

4

Toro 133-1980

NUT-LOCK, NI

$

$

Currently unavailable

5

Toro 132-4471-05

HANDLE

$60.99

$

In Stock, only 2 left!

0

6

Toro 130-2344

BOLT-SHOULDER
(Superseded to 140-3759)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:1

Toro 109-0917

NUT-PUSH
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 16

0

8:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

8:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 4 left!

0

8:5

Toro 114-2675

ROD-RELEASE
(Superseded to 138-3243)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

10

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

13

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

14

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 19

0

17

Toro 121-9118

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

18

Toro 131-0880-03

BAIL-BRAKE

$15.99

$

In Stock, Qty 20+

0

19

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

20

Toro 99-5239

ANCHOR-CABLE
(Superseded to 136-5864)

$2.99

$

In Stock, Qty 19

0

21

Toro 115-8435

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

22

Toro 115-8437

CABLE-BRAKE

$34.99

$

In Stock, Qty 20+

0

23

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 9

0

24

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

25

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

26

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

27

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

28

Toro 130-6721

CLIP-TREE

$0.99

$

Usually ships in 3-6 days

0

29

Toro 133-1980-03

Rod-Stiffener

$23.99

$

Usually ships in 3-6 days

0

40

Toro 132-4513

DECAL

$5.99

$

Usually ships in 3-6 days

0

41

Toro 132-4470

DECAL-TRACTION, ADJUST

$1.99

$

In Stock, only 3 left!

0
