20370 - Toro 22" Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) HANDLE ASSEMBLY Parts Diagram

22" Recycler Walk-Behind Mower

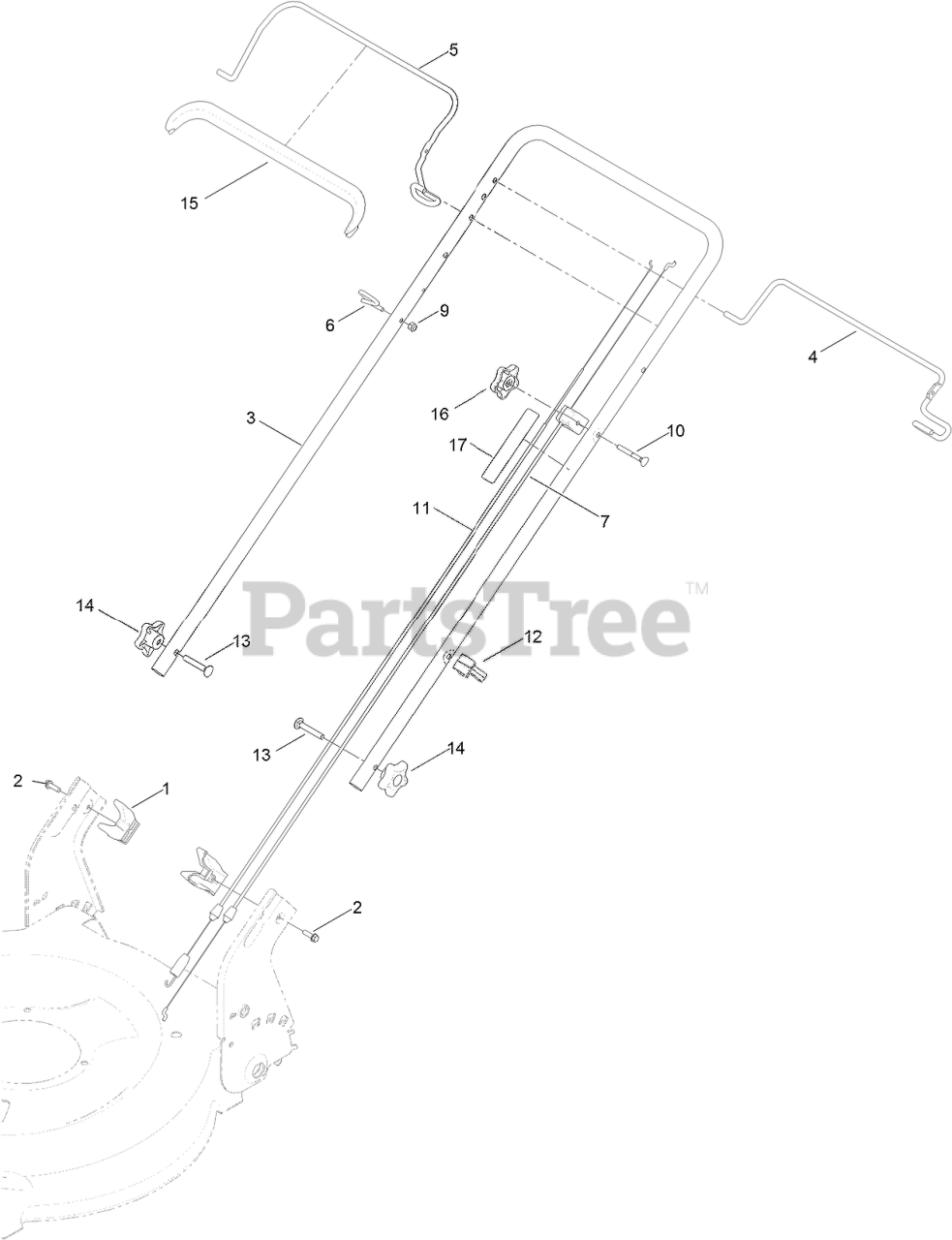

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2866

ANCHOR-BAG

$3.99

$

In Stock, Qty 6

0

2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Toro 131-0818-05

HANDLE

$52.99

$

In Stock, Qty 7

0

4

Toro 131-0835-03

BAIL-TRACTION

$15.99

$

In Stock, Qty 5

0

5

Toro 131-0821-03

BAIL-BRAKE
(Superseded to 138-3269-03)

$14.99

$

In Stock, Qty 7

0

6

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

7

Toro 112-8818

CABLE-BRAKE

$33.99

$

In Stock, Qty 20+

0

9

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

10

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, Qty 7

0

11

Toro 119-2379

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

12

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

13

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 20+

0

15

Toro 127-6847

COVER-BAIL

$4.49

$

In Stock, Qty 11

0

16

Toro 131-0897

KNOB-HANDLE, LOCKING

$4.49

$

In Stock, Qty 9

0

17

Toro 131-0894

DECAL-TRACTION, ADJUST
(Superseded to 132-4470)

$1.99

$

In Stock, only 3 left!

0
