20431 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

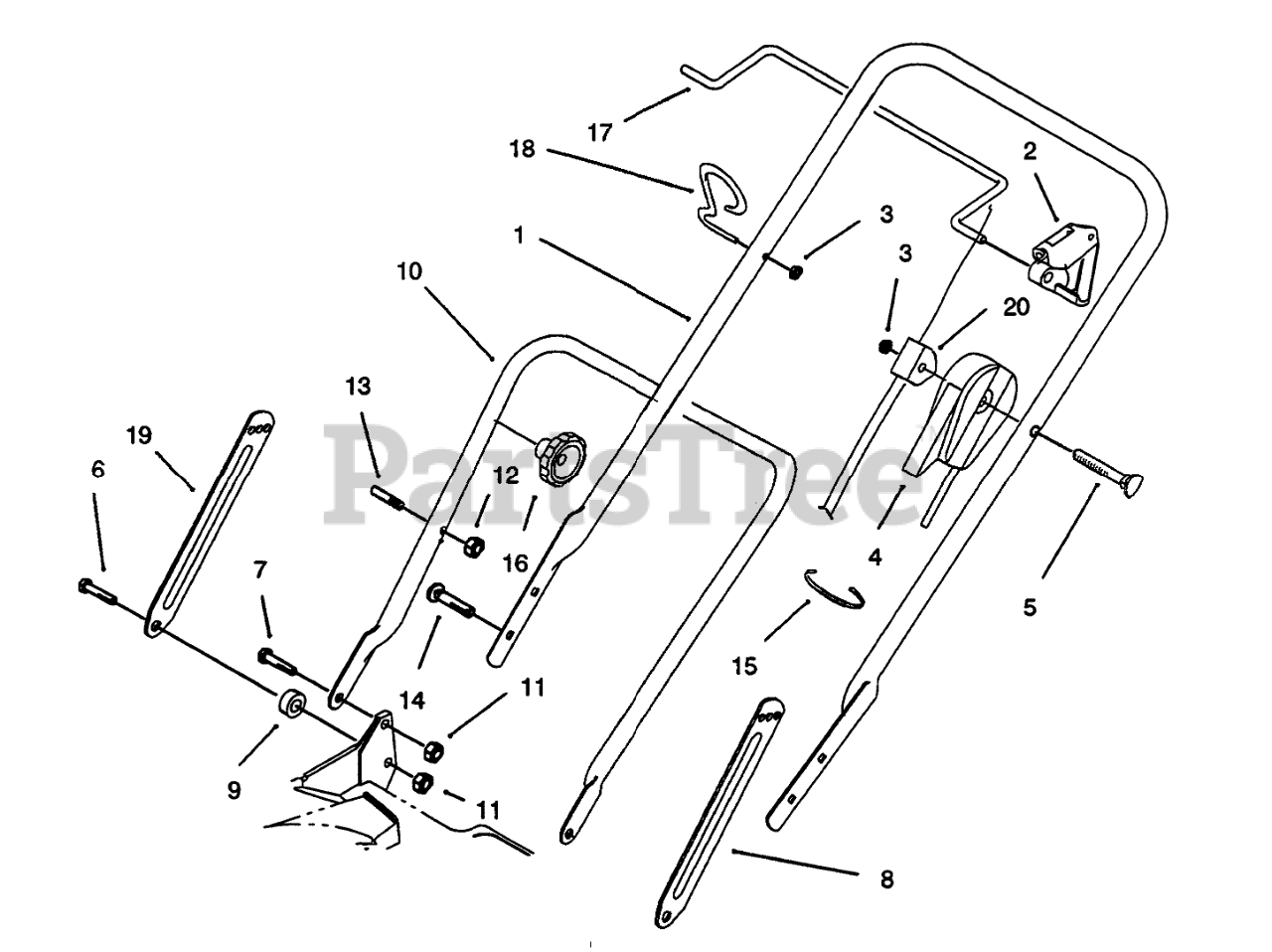

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-3136

UPPER HANDLE

$

$

Not available

2

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

3

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

4

Toro 92-4068

THROTTLE CONTROL

$46.99

$

In Stock, only 1 left!

0

5

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

6

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

7

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

8

Toro 84-8360

LH HANDLE LATCH

$17.99

$

Usually ships in 3-6 days

0

9

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

10

Toro 82-5530

LOWER HANDLE ASM

$

$

Not available

11

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

13

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

14

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

16

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

17

Toro 92-3134

Bar-Control
(Superseded to 92-3134-03)

$

$

Not available

18

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 19

0

19

Toro 84-8400

RH HANDLE LATCH

$

$

Not available

20

Toro 92-4064

BRAKE CONTROL

$49.99

$

Usually ships in 3-6 days

0
