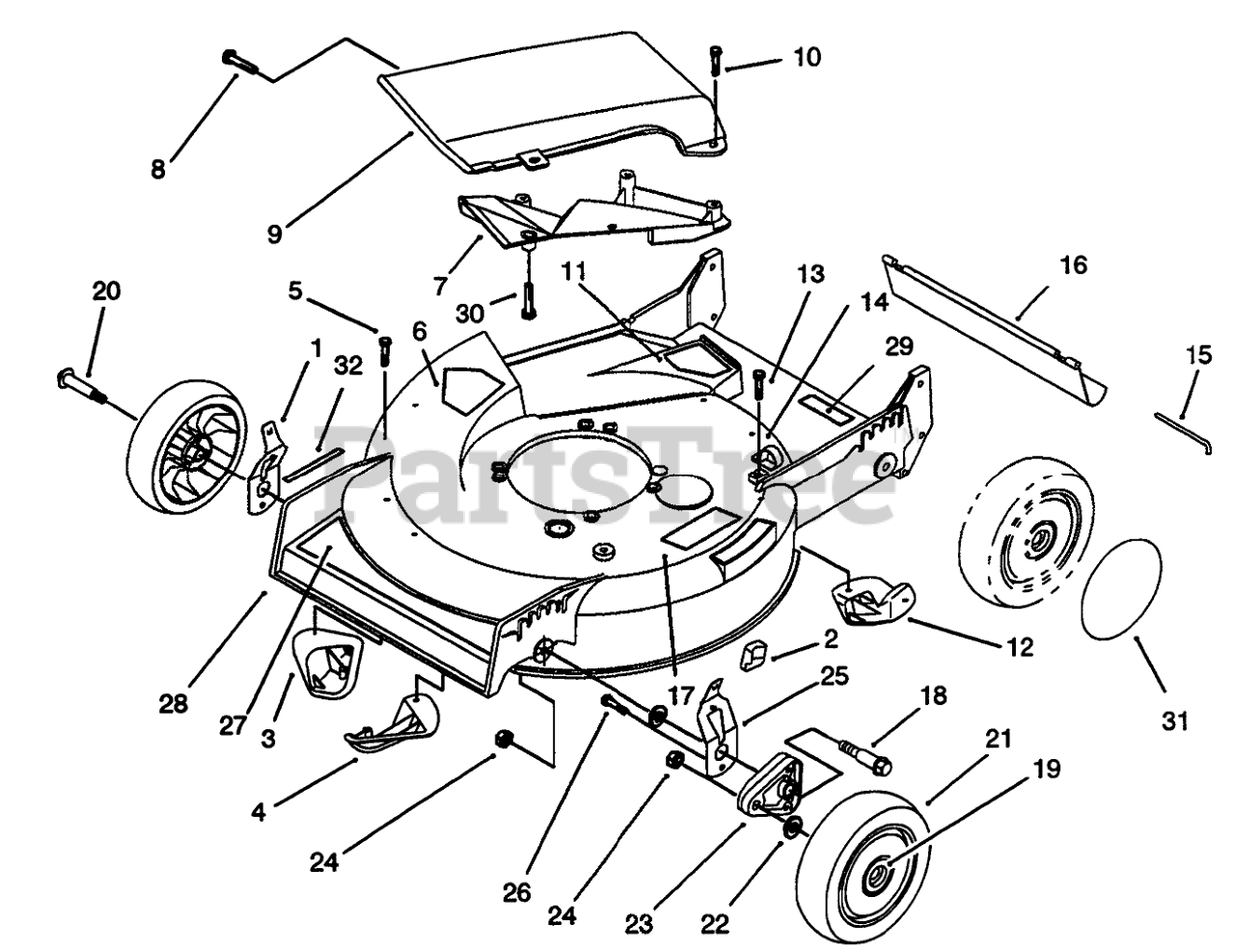

20433 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

3

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 1 left!

0

5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

9

Toro 14-4069

Cover Assembly (Incl. Ref #7 & 19)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

11

Toro 82-8450

DECAL - DANGER

$6.99

$

Usually ships in 3-6 days

0

12

Toro 92-1660

KICKER-REAR

$19.99

$

Usually ships in 3-6 days

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

15

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

17

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

18

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

20

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 14

0

21

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #19)
(Superseded to 51-2751)

$30.99

$

In Stock, only 4 left!

0

22

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Toro 92-2283

DECAL - DECK

$

$

Not available

28

Toro 16-1579

Housing Assembly (Incl.Ref.#3-6,11,12,117,29,&31)

$998.99

$

Usually ships in 3-6 days

0

29

Toro 92-1779

DECAL-WARNING

$8.49

$

Usually ships in 3-6 days

0

30

Screw-Pan Hd.

$

$

Not available

31

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$20.99

$

Usually ships in 3-6 days

0

32

Toro 92-2279

DECAL - HOC

$

$

Not available
