20436 WF - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

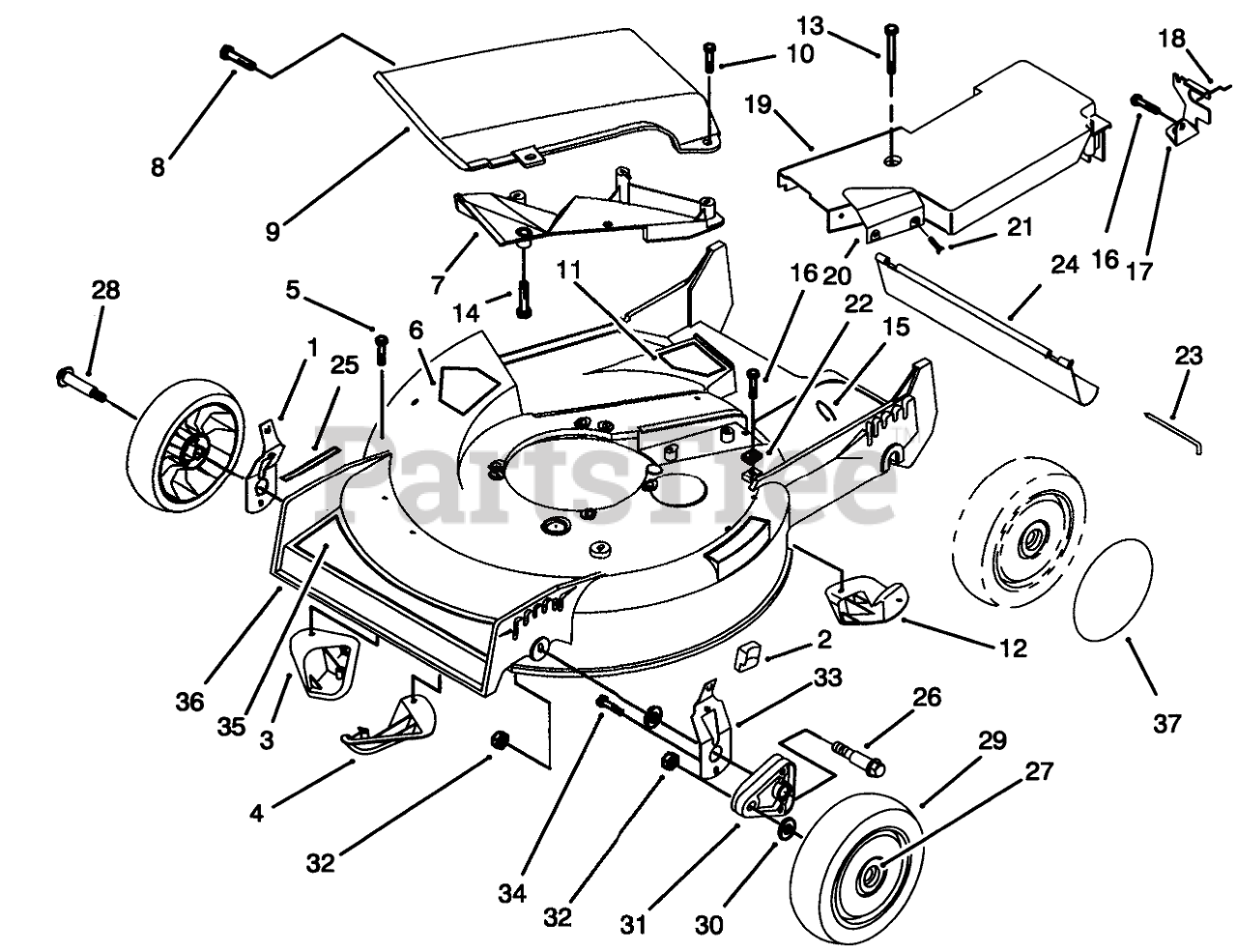

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

3

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 1 left!

0

5

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

6

Toro 56-6270

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, only 3 left!

0

9

Toro 14-9979

Cover Assembly (Incl. Ref. #7 & 14)
(Superseded to 100-2859)

$97.99

$

Usually ships in 3-6 days

0

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

11

Toro 92-1703

DECAL - DANGER

$9.99

$

Usually ships in 3-6 days

0

12

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, Qty 5

0

13

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 6

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

18

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 3 left!

0

19

Toro 52-7406

Belt Cover Assembly (Incl. Ref. #20 & 21)

$

$

Not available

20

Toro 77-0280

HEAT SHIELD

$

$

Not available

21

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

22

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 4 left!

0

23

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

24

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

25

Toro 92-2279

DECAL - HOC

$

$

Not available

26

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 20+

0

27

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

28

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 14

0

29

Toro 14-9989

Wheel & Tire Assembly (Incl. Ref. #27)

$42.99

$

In Stock, only 2 left!

0

30

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

31

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, only 1 left!

0

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 71-0571

LH SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

Toro 92-2281

DECAL - DECK

$

$

Not available

36

Toro 16-2119

Housing Assembly (Incl. Ref. #3-6, 8, 12, 16, & 25, pg.1-2) (Incl. Ref. #6, & 7 pg. 3)

$

$

Not available

37

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$20.99

$

Usually ships in 3-6 days

0
