20441 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) SHROUD & BLOCK ASSEMBLY (MODEL NO. 20441 ONLY) Parts Diagram

Walk-Behind Mower

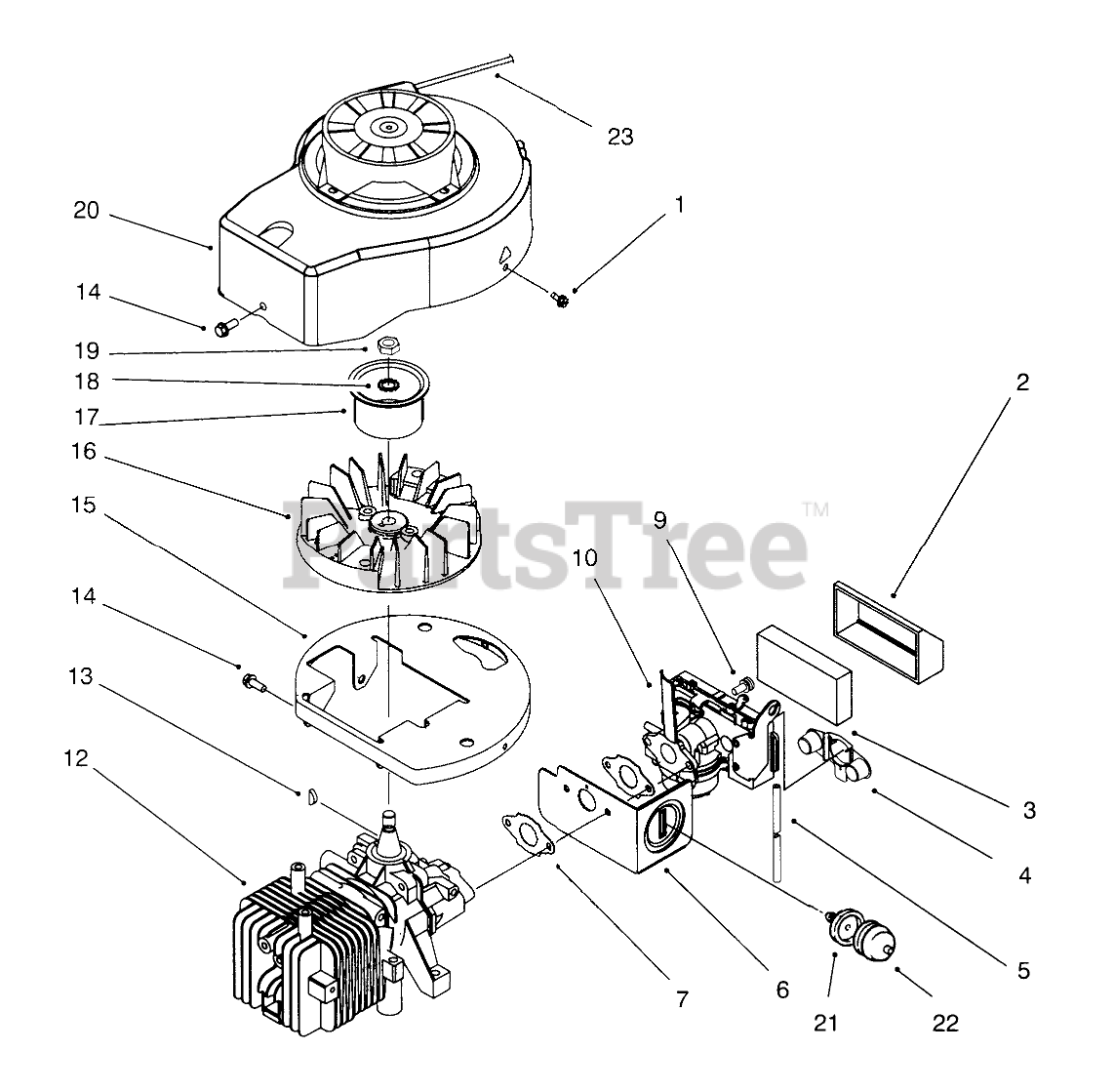

SHROUD & BLOCK ASSEMBLY (MODEL NO. 20441 ONLY) Parts Diagram

  • Title

1

Toro 614699

SCREW VF

$1.99

$

In Stock, Qty 11

0

2

Toro 93-1231

COVER-AIR FIL. V

$

$

Not available

3

Toro 609493

ELEMENT-AIR FIL VF
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

4

Toro 93-4320

SHIELD-FUEL V

$

$

Not available

5

Toro 44-3172

HOSE-PRIMER

$5.49

$

In Stock, Qty 8

0

6

Toro 93-1227

SHIELD - CARB. V

$

$

Not available

7

Toro 92-4948

GASKET-CARB VF

$1.99

$

In Stock, Qty 20+

0

9

Toro 609482

SCREW

$2.49

$

In Stock, Qty 8

0

10

Toro 93-4331

CARBURETOR ASM

$242.99

$

Usually ships in 3-6 days

0

12

Toro 94-5731

SHORT BLOCK

$

$

Not available

13

Toro 607199

KEY

$4.99

$

In Stock, Qty 12

0

14

Toro 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

15

Toro 93-1216

Base-Shroud
(Superseded to 93-1216-03)

$

$

Not available

16

Toro 684743

FLYWHEEL(MACH) V

$

$

Not available

17

Toro 614640

HUB-STARTER V

$34.99

$

Usually ships in 3-6 days

0

18

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

19

Toro 130743

NUT

$2.99

$

In Stock, Qty 7

0

20

Toro 93-1248

SHROUD/START

$

$

Not available

21

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

22

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

23

Toro 93-4304

SHROUD
(Superseded to 107-4605)

$

$

Not available
