20444 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) BRAKE AND MUFFLER ASSEMBLY (MODEL NO. 20442 ONLY) Parts Diagram

Walk-Behind Mower

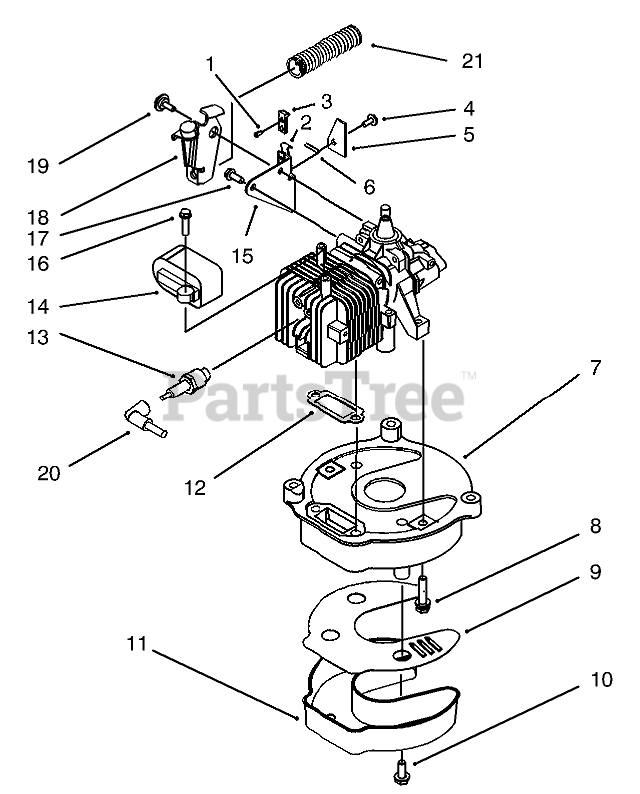

BRAKE AND MUFFLER ASSEMBLY (MODEL NO. 20442 ONLY) Parts Diagram

  • Title

1

Toro 3290-459

RIVET-PLASTIC

$1.99

$

Usually ships in 3-6 days

0

2

Toro 60-9010

STRAP-GROUND

$11.99

$

Usually ships in 3-6 days

0

3

Toro 92-2925

STRAP-INSULATION

$1.99

$

Usually ships in 3-6 days

0

4

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

5

Toro 53-4690

STOP-GROUND STRAP

$3.99

$

Usually ships in 3-6 days

0

6

Toro 92-1156

ELECTRICAL LEAD ASM

$7.99

$

Usually ships in 3-6 days

0

7

Toro 614654

PLATE-MUFFLER V

$103.99

$

Usually ships in 3-6 days

0

8

Toro 607601

SCREW V

$3.99

$

In Stock, Qty 5

0

9

Toro 93-1217

BAFFLE-MUFFLER

$7.99

$

Usually ships in 3-6 days

0

10

Toro 609471

SCREW

$4.99

$

In Stock, Qty 20+

0

11

Toro 93-1108

Cover-Muffler
(Superseded to 93-1108-03)

$

$

Not available

12

Toro 93-1233

GASKET-EXH. VF

$1.99

$

In Stock, Qty 20+

0

13

Toro 614009

SPARK PLUG

$5.49

$

In Stock, Qty 20+

0

14

Toro 684049

Ignition Assembly (Incl. Ref. #20)
(Superseded to 99-2916)

$78.99

$

In Stock, Qty 9

0

15

Toro 84-7820

PLATE-BRAKE

$12.99

$

Usually ships in 3-6 days

0

16

Toro 613208

SCREW

$1.99

$

In Stock, only 2 left!

0

17

Toro 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

18

Toro 66-5380

BRAKE PLATE ASM

$67.99

$

Usually ships in 3-6 days

0

19

Toro 92-9698

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

20

Toro 681678

HT LEAD&COVER XEV

$23.99

$

Usually ships in 3-6 days

0

21

Toro 66-5370

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0
