20522 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

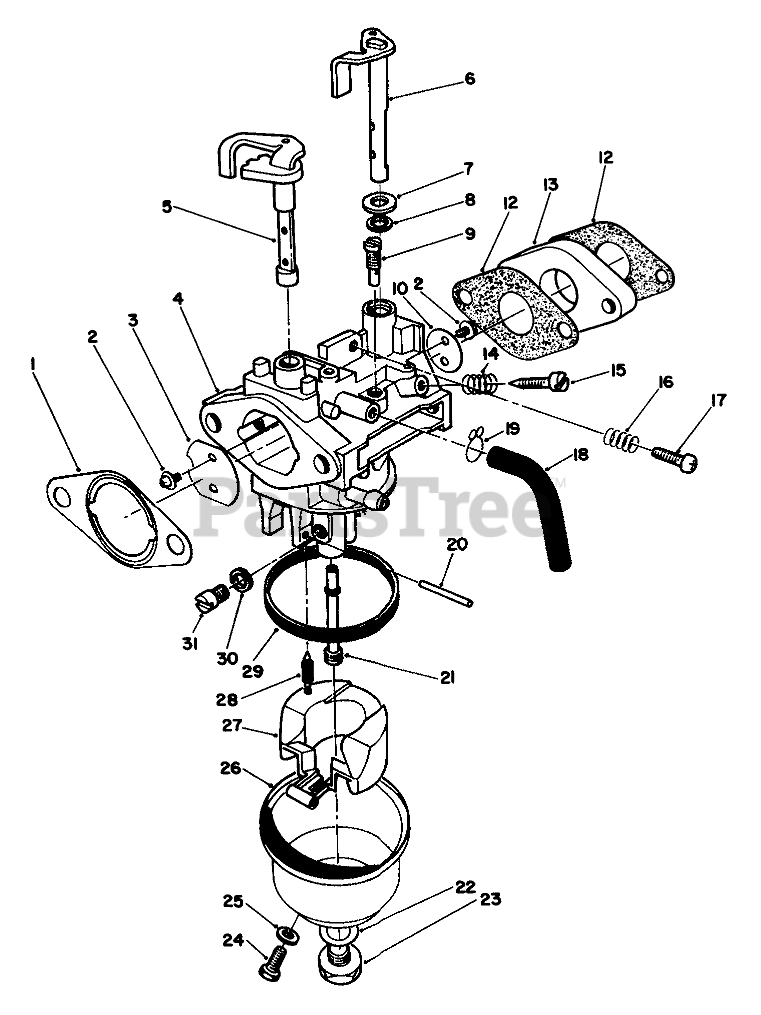

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-4250

GASKET F/W ENGINE

$10.99

$

Usually ships in 3-6 days

0

2

Toro 81-2710

Screw
(Superseded to 81-2160)

$3.99

$

Usually ships in 3-6 days

0

3

Toro 81-2720

VALVE

$38.99

$

Usually ships in 3-6 days

0

4

Body-Carburetor

$

$

Not available

5

Toro 81-4270

SHAFT

$

$

Not available

6

Toro 81-2920

SHAFT

$

$

Not available

7

Toro 81-4280

WASHER

$

$

Not available

8

Toro 81-4290

Seal-Throttle Shaft
(Superseded to 81-2530)

$8.49

$

Usually ships in 3-6 days

0

9

Toro 81-1030

PILOT JET

$26.99

$

Usually ships in 3-6 days

0

10

Toro 81-2940

VALVE

$37.99

$

Usually ships in 3-6 days

0

12

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$5.49

$

In Stock, Qty 11

0

13

Toro 81-0460

CARB INSULATOR

$24.99

$

Usually ships in 3-6 days

0

14

Toro 81-2580

SPRING-PILOT SCREW

$9.99

$

Usually ships in 3-6 days

0

15

Toro 50-2360

ADJUSTER

$16.99

$

Usually ships in 3-6 days

0

16

Toro 81-4320

Spring-Idle Stop
(Superseded to 81-2580)

$9.99

$

Usually ships in 3-6 days

0

17

Toro 50-0250

SCREW

$

$

Not available

18

Toro 81-4310

TUBE

$

$

Not available

19

Toro 81-4300

CLAMP

$

$

Not available

20

Toro 81-0980

Pin
(Superseded to 81-2600)

$6.99

$

Usually ships in 3-6 days

0

21

Toro 81-4330

NOZZLE

$

$

Not available

22

Toro 81-2650

GASKET

$5.49

$

Usually ships in 3-6 days

0

23

Toro 81-2660

SCREW

$23.99

$

In Stock, only 2 left!

0

24

Toro 81-2670

SCREW

$9.99

$

Usually ships in 3-6 days

0

25

Toro 81-2680

GASKET

$4.99

$

In Stock, Qty 6

0

26

Toro 81-4340

BOWL

$100.99

$

In Stock, only 1 left!

0

27

Toro 81-2620

Float
(Superseded to 81-4920)

$43.99

$

Usually ships in 3-6 days

0

28

Toro 81-2690

NEEDLE

$80.99

$

In Stock, only 2 left!

0

29

Toro 81-2630

FLOAT BOWL GASKET

$10.99

$

In Stock, only 4 left!

0

30

Toro 81-4350

SPACER

$

$

Not available

31

Toro 50-4760

MAIN JET

$23.99

$

Usually ships in 3-6 days

0

Toro 81-1040

MAIN JET

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0

Toro 81-4360

Carburetor Kit (Incl. Ref. #1, 12, 22, 25, 28, & 29)

Note: Not illustrated

$120.99

$

Usually ships in 3-6 days

0

Toro 81-4370

Carburetor Assembly (Incl. Ref. #2-31)
(Superseded to 81-4750)

Note: Not illustrated

$625.99

$

Usually ships in 3-6 days

0
