20532 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE AND TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

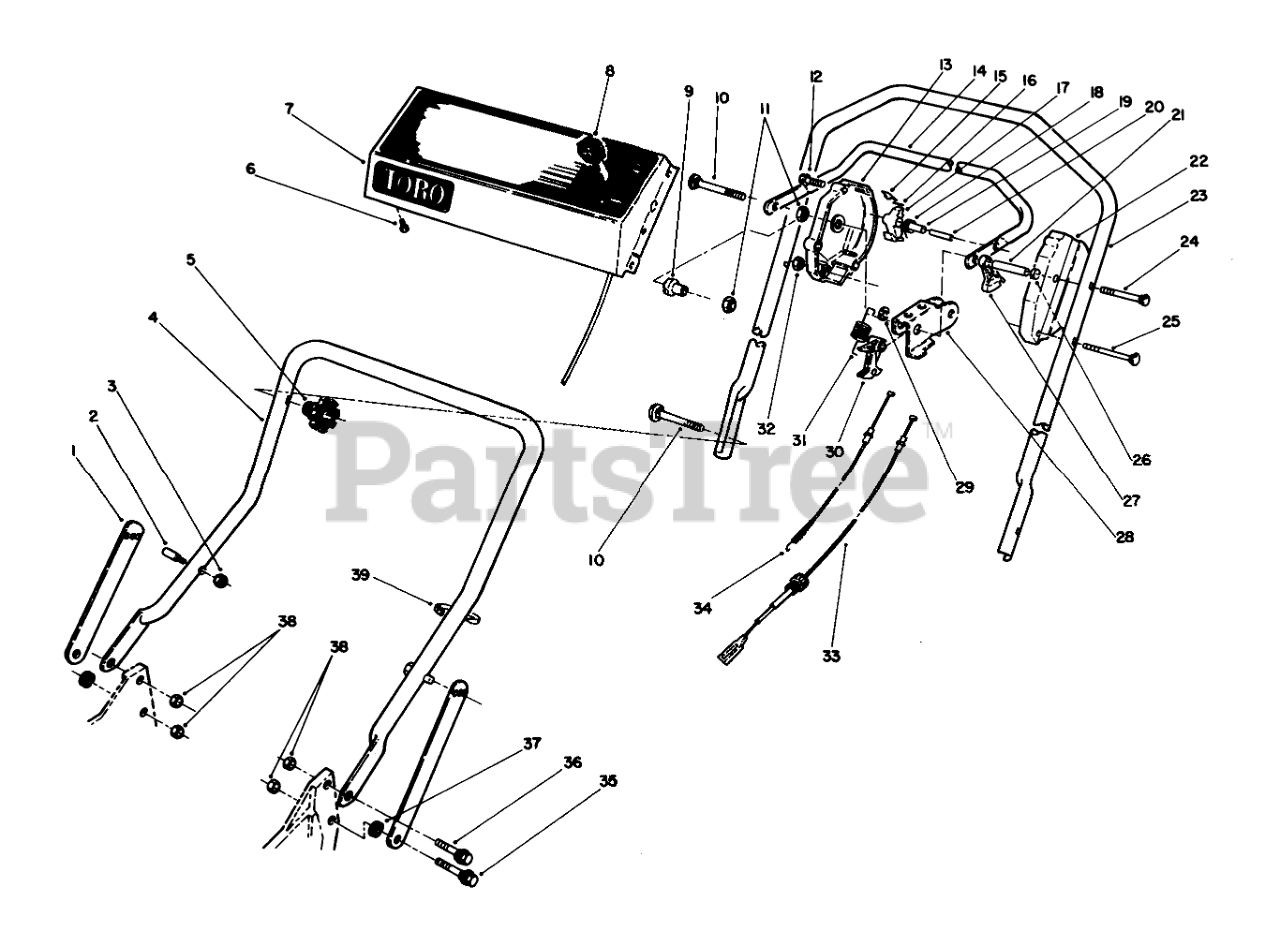

HANDLE AND TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

2

Toro 49-2750

HANDLE PIN

$32.99

$

Usually ships in 3-6 days

0

3

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

4

Toro 43-1361

Lower Handle Assembly (Incl. Ref. #2 & 3)

$

$

Not available

5

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

6

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 70-1460

Panel-Control

$

$

Not available

8

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

9

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

12

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 66-0160

Housing-Control
(Superseded to 12-3429)

$

$

Not available

14

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

15

Toro 52-7410

SPRING-LEAF

$

$

Not available

16

Toro 57-6290

PIN-INSERT

$3.49

$

Usually ships in 3-6 days

0

17

Toro 46-5530

HOOK-CONTROL

$

$

Not available

18

Toro 46-5510

SPRING-TORSION

$5.49

$

Usually ships in 3-6 days

0

19

Toro 46-5550

SPACER

$17.99

$

Usually ships in 3-6 days

0

20

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

21

Toro 46-5590

TUBING-SPACER

$17.99

$

Usually ships in 3-6 days

0

22

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

23

Toro 49-4234

UPPER HANDLE

$

$

Not available

24

Toro 17-9422

5/16-18 X 3 HNDLE SCREW

$

$

Not available

25

Toro 46-6431

HANDLE SCREW

$

$

Not available

26

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

27

Toro 46-5520

LEVER-TRACTION

$

$

Not available

28

Toro 66-0180

ROCKER

$

$

Not available

29

Toro 66-0170

WASHER-NYLON

$4.99

$

In Stock, Qty 6

0

30

Toro 46-5540

LEVER-CABLE

$17.99

$

In Stock, only 1 left!

0

31

Toro 66-0190

SPRING-DETENT

$30.99

$

Usually ships in 3-6 days

0

32

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

33

Toro 46-5480

TRACTION CABLE

$87.99

$

Usually ships in 3-6 days

0

34

Toro 62-3771

Cable-Clutch
(Superseded to 83-6600)

$

$

Not available

35

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

36

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

37

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

39

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0
