20570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE TECUMSEH MODEL TNT100-10085E Parts Diagram

Walk-Behind Mower

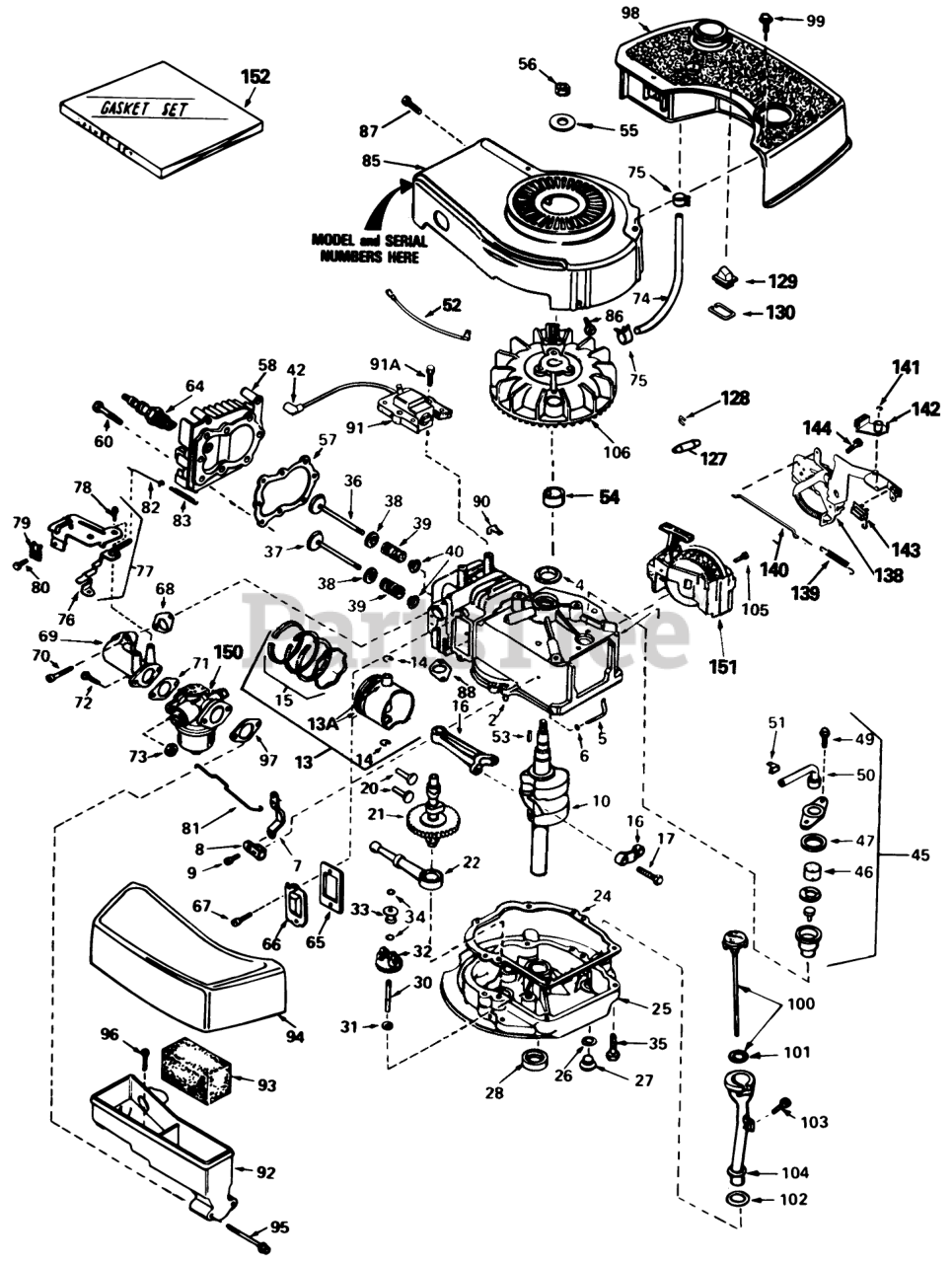

ENGINE TECUMSEH MODEL TNT100-10085E Parts Diagram

  • Title
1

Tecumseh Part# 34429A

Cylinder Assy. (Inc. #2 & 4)
Usually ships same day

Currently unavailable

$

$

2
Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$6.72

0

5

Tecumseh Part# 30589

Rod, Governor (Incl. #6)
Usually ships in 1 day

$

$5.44

0

6

Tecumseh Part# 28277

Washer-Flat
Usually ships in 1 day

$

$1.76

0

7

Tecumseh Part# 32651

Governor Lever
Usually ships in 8 to 14 days

$

$1.76

0

8

Tecumseh Part# 31335

Clamp-Lever, Governor
Usually ships in 1 day

$

$1.76

0

9

Tecumseh Part# 650548

Screw
(Superseded to 651018)
Usually ships in 1 day

$

$1.66

0

10

Tecumseh Part# 34440

Crankshaft
(Superseded to 37333)
Usually ships same day

Discontinued

$

$

13

Tecumseh Part# 34851

Piston, Pin & Ring Assy.(Std.) (Incl. #13A, 14 8 15)
(Superseded to 35544A)
Usually ships in 8 to 14 days

$

$60.34

0

13

Tecumseh Part# 34852

Piston, Pin 8 Ring Assy.(.010 oversize)(Incl. #13A, 14 8 15)
(Superseded to 35545A)
Usually ships in 8 to 14 days

$

$76.46

0

13

Tecumseh Part# 34853

Piston, Pin 8 Ring Assy.(.020 oversize)(Incl. #13A, 14 8 15)
(Superseded to 35546)
Usually ships in 8 to 14 days

$

$73.44

0

13A

Tecumseh Part# 32603B

Piston & Pin Assy. (Std.) (Inc. #14)
(Superseded to 35544A)
Usually ships in 8 to 14 days

$

$60.34

0

13A

Tecumseh Part# 32604B

Piston & Pin Assy. (.010 oversize) (Incl. #14)
(Superseded to 35545A)
Usually ships in 8 to 14 days

$

$76.46

0

13A

Tecumseh Part# 32605B

Piston & Pin Assy. (.020 oversize) (Inc. #14)
(Superseded to 35546)
Usually ships in 8 to 14 days

$

$73.44

0

14

Tecumseh Part# 20381

Ring-Retaining, Piston Pin
Usually ships in 1 day

$

$1.76

0

15

Tecumseh Part# 34854

Ring Set (Std.)
Usually ships in 8 to 14 days

$

$23.30

0

15

Tecumseh Part# 34855

Ring Set (.020" OS)
Usually ships in 8 to 14 days

$

$35.98

0

15

Tecumseh Part# 34856

Ring Set (.010" OS)
Usually ships in 8 to 14 days

$

$40.86

0

16

Tecumseh Part# 30963B

Rod Assy., Connecting (Incl. #17)
Usually ships in 1 day

$

$29.26

0

17

Tecumseh Part# 32610A

Bolt-Rod, Connecting
Usually ships in 1 day

$

$1.76

0

20

Tecumseh Part# 27241

Lifter-Valve
Usually ships in 1 day

$

$5.44

0

21

Tecumseh Part# 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)
Usually ships in 8 to 14 days

$

$72.26

0

22

Tecumseh Part# 29914

Oil Pump ASM
Usually ships in 1 day

$

$9.16

0

24

Tecumseh Part# 26750A

Gasket, Mounting
(Superseded to 37609)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$2.81

0

25

Tecumseh Part# 30594B

Flange Assy., Mounting (Incl. #26 thru 30)
(Superseded to 37644)
Usually ships in 8 to 14 days

$

$81.86

0

26

Tecumseh Part# 28833

Gasket-Oil Drain

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$1.76

0

27

Tecumseh Part# 27244

Plug Oil Drain
(Superseded to 36083)
Usually ships in 1 day

$

$0.86

0

28
Usually ships in 1 day

$

$5.80

0

30

Tecumseh Part# 30574

Shaft-Governor
(Superseded to 30574A)
Usually ships in 1 day

$

$7.00

0

31

Tecumseh Part# 30590A

Washer-Flat
Usually ships in 1 day

$

$4.04

0

32

Tecumseh Part# 30591

Gear Assy., Governor (Incl. #31)
Usually ships in 1 day

$

$13.90

0

33

Tecumseh Part# 30588A

Spool-Governor
Usually ships in 1 day

$

$1.76

0

34

Tecumseh Part# 29193

Ring-Retaining
Usually ships in 1 day

$

$1.76

0

35

Tecumseh Part# 650488

Screw (1/4-20 x 1-1/4)
Usually ships in 1 day

$

$1.76

0

36

Tecumseh Part# 29314B

Valve, Intake (Std.) (Incl. #40)
(Superseded to 29314C)
Usually ships in 1 day

$

$5.68

0

36

Tecumseh Part# 29315C

Valve, Intake (1/32" oversize) (Incl. #40)
Usually ships in 8 to 14 days

$

$42.92

0

37

Tecumseh Part# 29313C

Valve, Exhaust (Std.) (Incl. #40)
Usually ships in 1 day

$

$8.72

0

37

Tecumseh Part# 29315C

Valve, Exhaust (1/32" oversize (Incl. #40)
Usually ships in 8 to 14 days

$

$42.92

0

38

Tecumseh Part# 31671

Cap-Upper Valve Spring
Usually ships in 8 to 14 days

$

$1.40

0

39

Tecumseh Part# 31672

Spring-Valve
Usually ships in 1 day

$

$1.76

0

40

Tecumseh Part# 31673

Cap-Valve, Spring
Usually ships in 1 day

$

$1.72

0

42

Tecumseh Part# 610118

Cover-Spark Plug
Usually ships in 1 day

$

$3.74

0

45

Tecumseh Part# 34214A

Breather Assy. (Incl.#46 thru 51)
(Superseded to 34214B)
Usually ships in 1 day

$

$15.56

0

46

Tecumseh Part# 33734

Element-Breather
Usually ships in 1 day

$

$1.70

0

47

Tecumseh Part# 33735

Gasket-Breather

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$1.70

0

49

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

50

Tecumseh Part# 33886

Tube, Breaker
Usually ships in 1 day

$

$7.02

0

51

Tecumseh Part# 33887

Clip, Breather
Usually ships in 1 day

$

$3.78

0

52

Tecumseh Part# 34961

Ground Wire
(Superseded to 37047)
Usually ships in 1 day

$

$1.76

0

53

Tecumseh Part# 611004

Key-Flywheel
Usually ships in 1 day

$

$1.54

0

Usually ships in 1 day

$

$1.76

0

55

Tecumseh Part# 650815

Washer-Belleville
Usually ships in 1 day

$

$1.76

0

56

Tecumseh Part# 650816

Nut-Flywheel
Usually ships in 1 day

$

$1.76

0

57

Tecumseh Part# 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$11.04

0

58

Tecumseh Part# 34342

Head-Cylinder
(Superseded to 36476)
Usually ships in 8 to 14 days

$

$32.28

0

60

Tecumseh Part# 6021A

Screw (5/16-18x1-1/2)
Usually ships in 1 day

$

$1.76

0

64

Tecumseh Part# 33636

Plug, Spark (J17LM or equiv.)
Usually ships in 1 day

$

$5.17

0

64

Tecumseh Part# 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)
Usually ships in 1 day

$

$5.17

0

65

Tecumseh Part# 27234

Gasket-Breather
(Superseded to 27234A)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$2.46

0

66

Tecumseh Part# 32755

Cover-Valve
Usually ships in 8 to 14 days

$

$5.30

0

Usually ships in 1 day

$

$5.04

0

68

Tecumseh Part# 34690

Gasket-Intake
(Superseded to 34690A)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$4.20

0

69

Tecumseh Part# 33004A

Pipe, Intake (Incl. #68)
Usually ships in 8 to 14 days

$

$23.64

0

70

Tecumseh Part# 650451

Screw (1/4-20 x 1)
Usually ships in 1 day

$

$1.76

0

71

Tecumseh Part# 31688

Gasket-Carburetor
(Superseded to 31688A)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$2.13

0

72

Tecumseh Part# 6201

Screw (1/4-28 x 7/8)
Usually ships in 1 day

$

$1.76

0

73

Tecumseh Part# 29752

Nut and Lock Washer (1/4-28)
Usually ships in 1 day

$

$1.76

0

74

Tecumseh Part# 34682

Line-Fuel
(Superseded to 30705)
Usually ships in 1 day

$

$7.30

0

75

Tecumseh Part# 26460

Clamp-Line, Fuel
Usually ships in 1 day

$

$1.49

0

76

Tecumseh Part# 34310

Lever Control
Usually ships in 8 to 14 days

$

$5.26

0

77

Tecumseh Part# 33889A

Control Assy., Speed (Incl. #76&78)
Usually ships in 8 to 14 days

$

$13.66

0

78

Tecumseh Part# 650804

Screw, Hex Washer Hd Shoulder Self-Tap
Usually ships in 8 to 14 days

$

$3.44

0

Usually ships in 1 day

$

$1.76

0

80

Tecumseh Part# 28942

Screw (10-32 x 3/8)
Usually ships in 1 day

$

$1.24

0

81

Tecumseh Part# 34336

Link-Throttle
(Superseded to 34336A)
Usually ships in 1 day

$

$1.72

0

82

Tecumseh Part# 33151

Link Governor Spring
Usually ships in 1 day

$

$1.76

0

83

Tecumseh Part# 33890

Spring Governor
Usually ships in 1 day

$

$1.70

0

85

Tecumseh Part# 33891B

Housing-Blower
Usually ships in 8 to 14 days

$

$52.48

0

86

Tecumseh Part# 650561

Screw (1/4-20x19/32)
Usually ships in 1 day

$

$1.76

0

87

Tecumseh Part# 30200

Screw (10-24 x 9/16)
Usually ships in 1 day

$

$1.24

0

88

Tecumseh Part# 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$1.40

0

90
Usually ships in 8 to 14 days

$

$1.76

0

91

Tecumseh Part# 34443A

Lamination & Coil Assy. (Solid State)(Incl. #42)
(Superseded to 34443D)
Usually ships in 1 day

$

$44.94

0

91A

Tecumseh Part# 650814

Screw
(Superseded to 651007)
Usually ships in 1 day

$

$1.64

0

92

Tecumseh Part# 33895

Body Air Cleaner
Usually ships in 8 to 14 days

$

$10.78

0

93
Usually ships in 1 day

$

$4.46

0

94

Tecumseh Part# 33897

Cove, Air Cleaner
Usually ships same day

Currently unavailable

$

$

95

Tecumseh Part# 650762

Screw Fil Hd.
Usually ships in 8 to 14 days

$

$5.40

0

96

Tecumseh Part# 650784

Screw, Hex Hd.
Usually ships in 1 day

$

$1.68

0

97

Tecumseh Part# 33051

Gasket-Air Cleaner

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 1 day

$

$1.38

0

98
Usually ships same day

Currently unavailable

$

$

99

Tecumseh Part# 28763

Screw (10-32 x 35/64)
Usually ships in 1 day

$

$1.62

0

100

Tecumseh Part# 33894A

Dipstick, Oil (Incl. #101)
(Superseded to 36879)
Usually ships in 8 to 14 days

$

$9.74

0

Usually ships in 1 day

$

$1.76

0

Usually ships in 1 day

$

$2.10

0

103

Tecumseh Part# 650562

Screw (10-32 x 1/2)
Usually ships in 1 day

$

$1.68

0

104

Tecumseh Part# 34380

Tube-Oil Fill
Usually ships in 8 to 14 days

$

$9.16

0

105

Tecumseh Part# 650802

Screw (1/2-20x5/8)
Usually ships in 1 day

$

$1.76

0

106

Tecumseh Part# 611046

Flywheel
(Superseded to 611046A)
Usually ships in 8 to 14 days

$

$94.44

0

127

Tecumseh Part# 35026

Coupling, Starter Rope
(Superseded to 36412)
Usually ships in 8 to 14 days

$

$1.24

0

128

Tecumseh Part# 35025

Staple, Rope Retainer (Strip of 25 Pieces)
(Superseded to 36412)
Usually ships in 8 to 14 days

$

$1.24

0

129

Tecumseh Part# 34983

Pulley Assy., Starter
Usually ships in 8 to 14 days

$

$7.30

0

130

Tecumseh Part# 34984

Retainer, Pulley
Usually ships same day

Currently unavailable

$

$

138

Tecumseh Part# 35015

Bracket Assy.
(Superseded to 35015B)
Usually ships in 8 to 14 days

$

$31.62

0

139

Tecumseh Part# 34965

Spring-Extension
Usually ships in 1 day

$

$3.66

0

140

Tecumseh Part# 34966

Link-Control
Usually ships in 1 day

$

$1.70

0

141

Tecumseh Part# 32309

Ring-Retaining
Usually ships in 1 day

$

$1.72

0

142

Tecumseh Part# 34968

Lever-Brake
(Superseded to 35831)
Usually ships in 8 to 14 days

$

$12.26

0

143
Usually ships in 8 to 14 days

$

$3.64

0

144

Tecumseh Part# 650837

Screw-Hex. Hd.
Usually ships in 1 day

$

$1.68

0

150

Tecumseh Part# 632050A

Carburetor (Incl. #71)
(Superseded to 632795A)
Usually ships in 1 day

$

$109.20

0

151

Tecumseh Part# 590532

Starter, Sidemount rewind
Usually ships in 1 day

$

$87.70

0

152

Tecumseh Part# 33906A

Gasket Set (Incl. Items Marked )
(Superseded to 33906D)

Note: Indicates parts included in Gasket Set, Ref. No. 152.

Usually ships in 8 to 14 days

$

$23.40

0
