20574 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) CONTROL PANEL ASSEMBLY Parts Diagram

Walk-Behind Mower

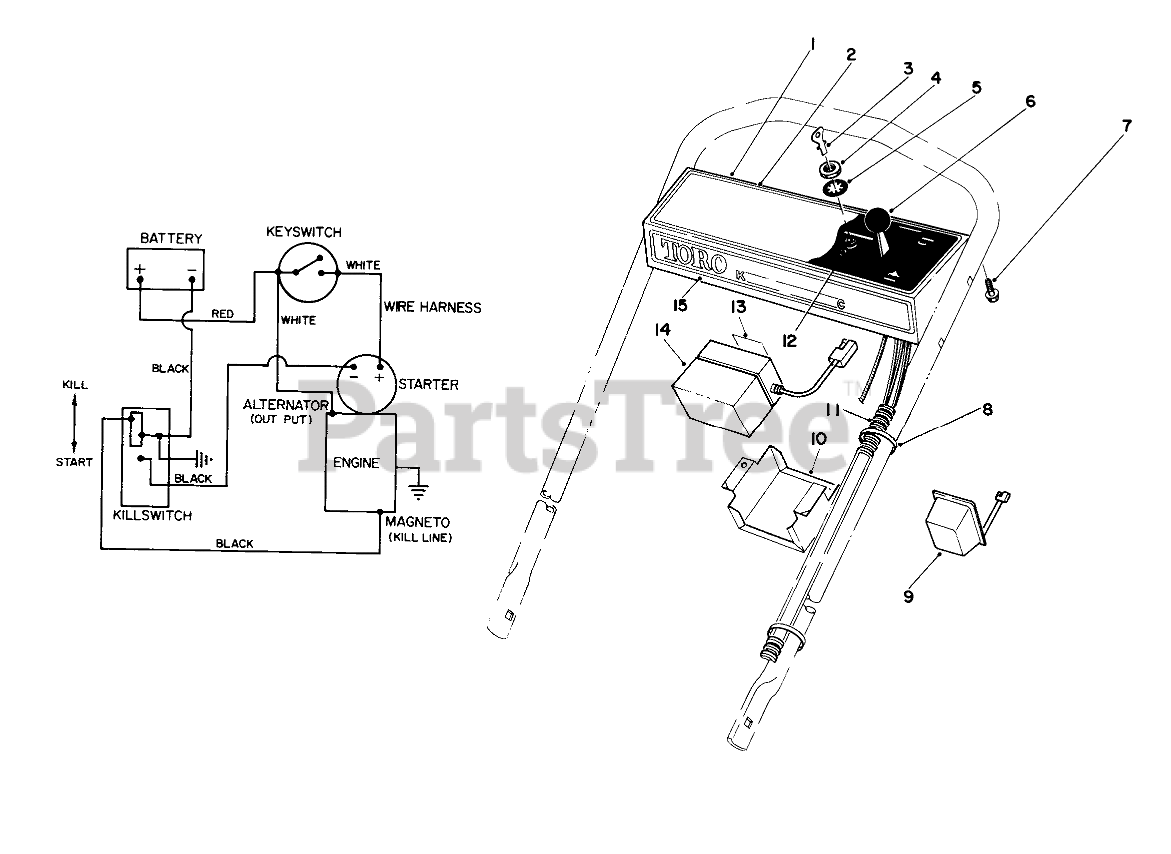

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6919

Control Panel (Incl. Ref. #2)

$

$

Not available

2

Toro 46-7440

Decal-Instructions

$

$

Not available

3

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

6

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

9

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

10

Toro 60-9000

Retainer-Battery

$

$

Currently unavailable

11

Toro 46-5810

WIRE HARNESS

$164.99

$

Usually ships in 3-6 days

0

12

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, Qty 15

0

13

Toro 60-9250

Decal

$

$

Currently unavailable

14

Toro 60-9190

Battery Assembly
(Superseded to 99-5262)

$

$

Not available

15

Toro 47-4600

Decal-Toro

$

$

Not available
