20574 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

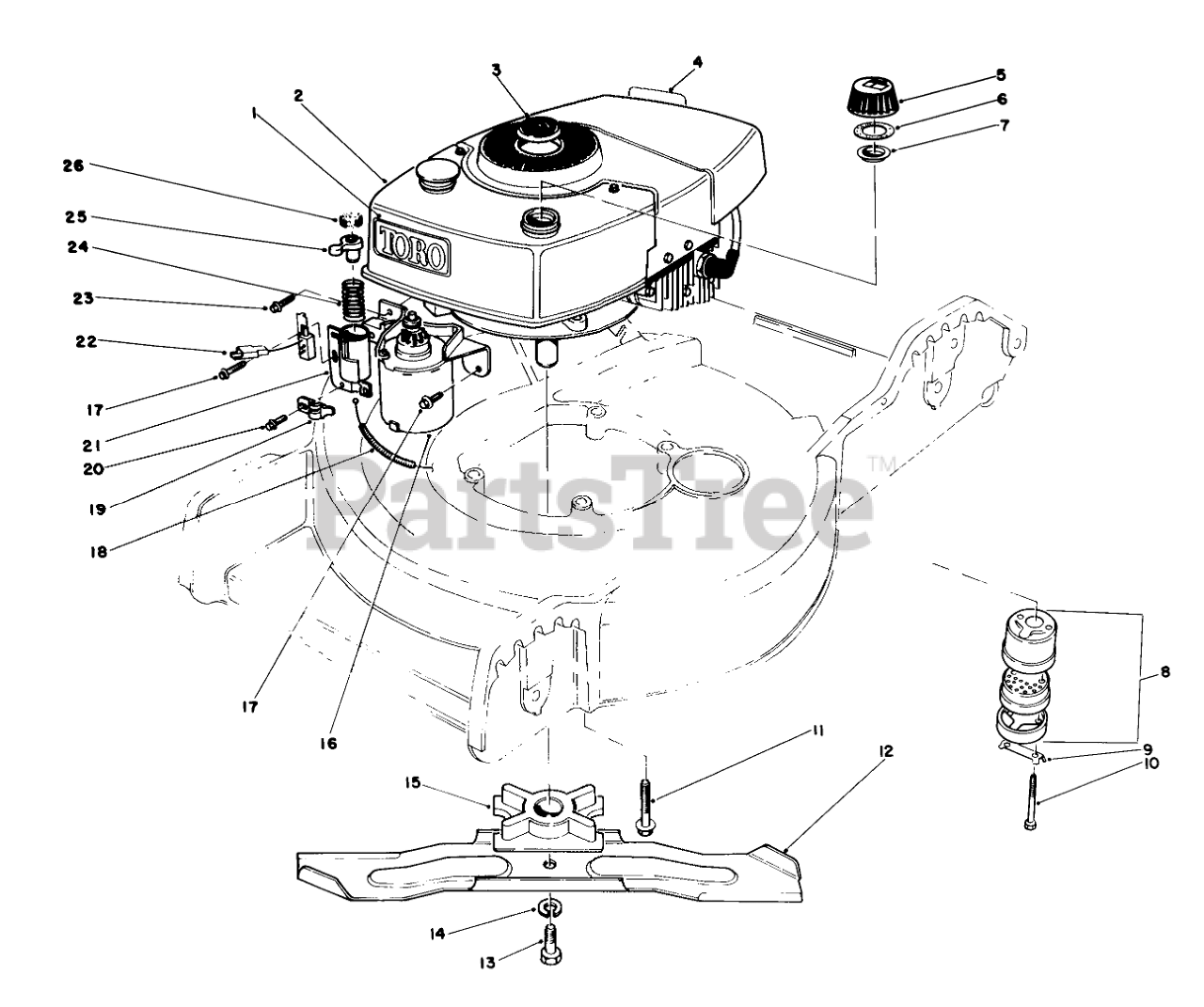

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 38-1480

PLUG BUTTON

$16.99

$

In Stock, only 1 left!

0

4

Toro 37-1580

Decal-Maintenan

$

$

Not available

5

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #6 & 7)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #9 & 10)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

12

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

13

Toro 3-5246

SPECIAL SCREW

$

$

Not available

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

15

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

16

Toro 49-4210

STARTER MOTOR ASM

$

$

Not available

17

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

18

Toro 43-4531

BRAKE CABLE-SUZUKI

$

$

Not available

19

Toro 46-6530

CABLE CLAMP

$

$

Not available

20

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

21

Toro 46-5840

TUBE W A

$

$

Not available

22

Toro 47-6530

PUSH BUTTON SWITCH

$

$

Not available

23

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

24

Toro 47-2180

COMPRESSION SPRING

$

$

Not available

25

Toro 46-5820

Plunger
(Superseded to 47-7350)

$

$

Not available

26

Toro 56-8000

Pad-Friction
(Superseded to 66-5380)

$67.99

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrestor Muffler (Optional)(Incl. Ref. #9 & 10)

$

$

Not available
