20575 - Toro Walk-Behind Mower (SN: 008000001 - 008007500) (1978) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

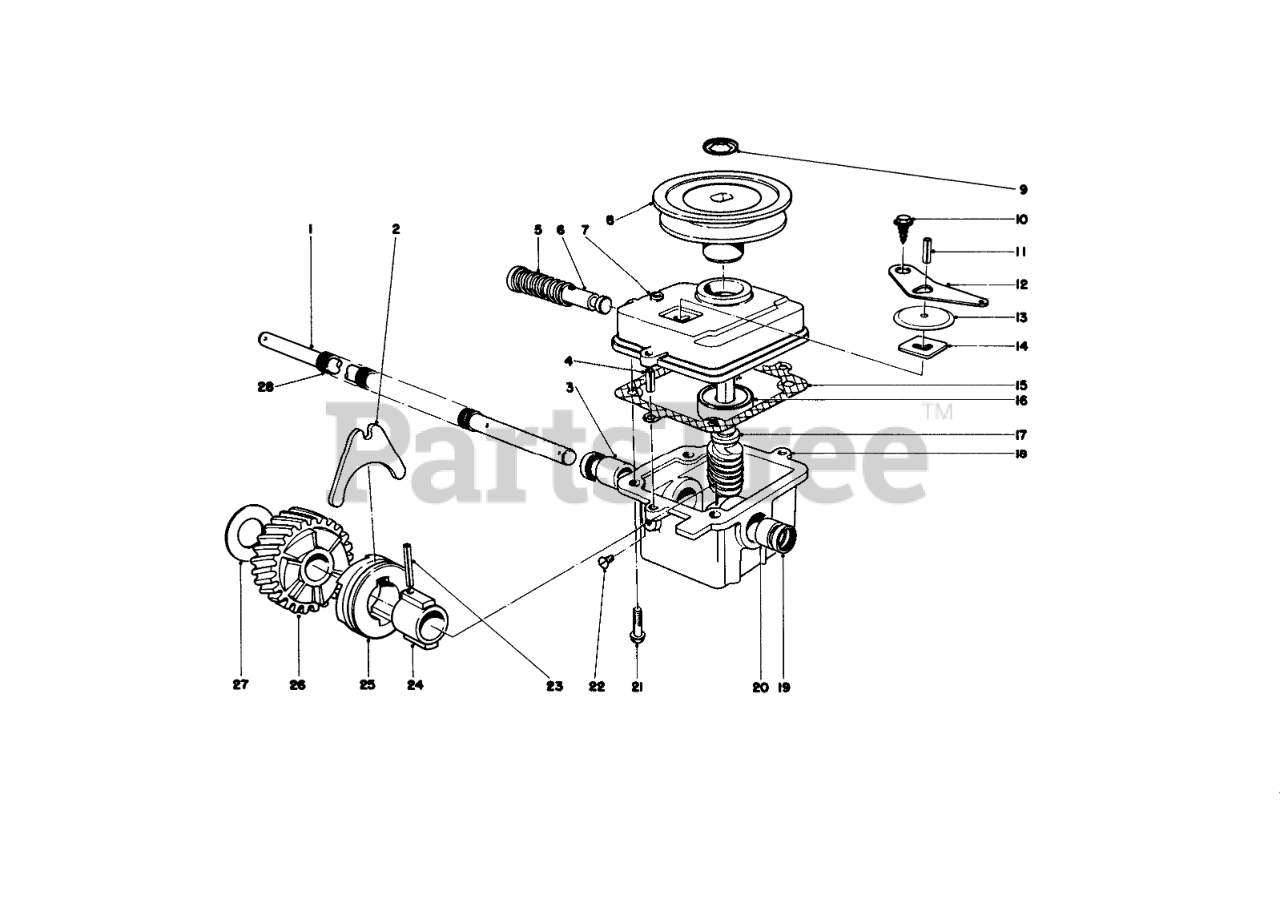

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-4630

Drive Shaft
(Superseded to 37-9440)

$155.99

$

Usually ships in 3-6 days

0

2

Toro 5-3247

SHIFTER FORK

$17.99

$

Usually ships in 3-6 days

0

3

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

4

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0

5

Toro 3-0731

SPRING

$9.99

$

Usually ships in 3-6 days

0

6

Toro 5-3248

Shift Rod
(Superseded to 46-8240)

$40.99

$

Usually ships in 3-6 days

0

7

Toro 5-3283

GEAR CASE COVER

$

$

Not available

8

Toro 20-2780

PULLEY

$

$

Not available

9

Toro 3290-346

PUSH-ON 93-3236

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32140-64

Screw
(Superseded to 32144-112)

$1.49

$

In Stock, Qty 20+

0

11

Toro 32121-23

PIN-ROLL

$

$

Not available

12

Toro 5-3252

SHIFTER ARM

$38.99

$

In Stock, only 1 left!

0

13

Toro 3-2615

TRANS DUST COVER

$

$

Not available

14

Toro 3-0681

LATCH PLATE

$

$

Not available

15

Toro 3-0734

GASKET

$8.99

$

Usually ships in 3-6 days

0

16

Toro 251-144

Bearing
(Superseded to 47-7460)

$72.99

$

In Stock, only 1 left!

0

17

Toro 18-9700

WORM SHAFT

$407.99

$

Usually ships in 3-6 days

0

18

Toro 5-4459

Gear Case (Incl. Ref. #3,19-20)

$

$

Not available

19

Toro 253-140

Seal
(Superseded to 47-6730)

$12.99

$

In Stock, Qty 20+

0

20

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

21

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

22

Toro 28-1550

NYLON SCREW

$6.99

$

Usually ships in 3-6 days

0

23

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

24

Toro 3-0721

SLEEVE

$

$

Not available

25

Toro 19-5660

CLUTCH JAW

$39.99

$

Usually ships in 3-6 days

0

26

Toro 18-9740

Nut

$

$

Not available

27

Toro 3-0724

THRUST WASHER

$

$

Not available

28

Toro 24-8690

DRIVE SHAFT COVER

$

$

Not available

Toro 26-0650

Gear Case Assembly
(Superseded to 8-6879)

Note: Not illustrated

$1097.99

$

Usually ships in 3-6 days

0
