20581 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

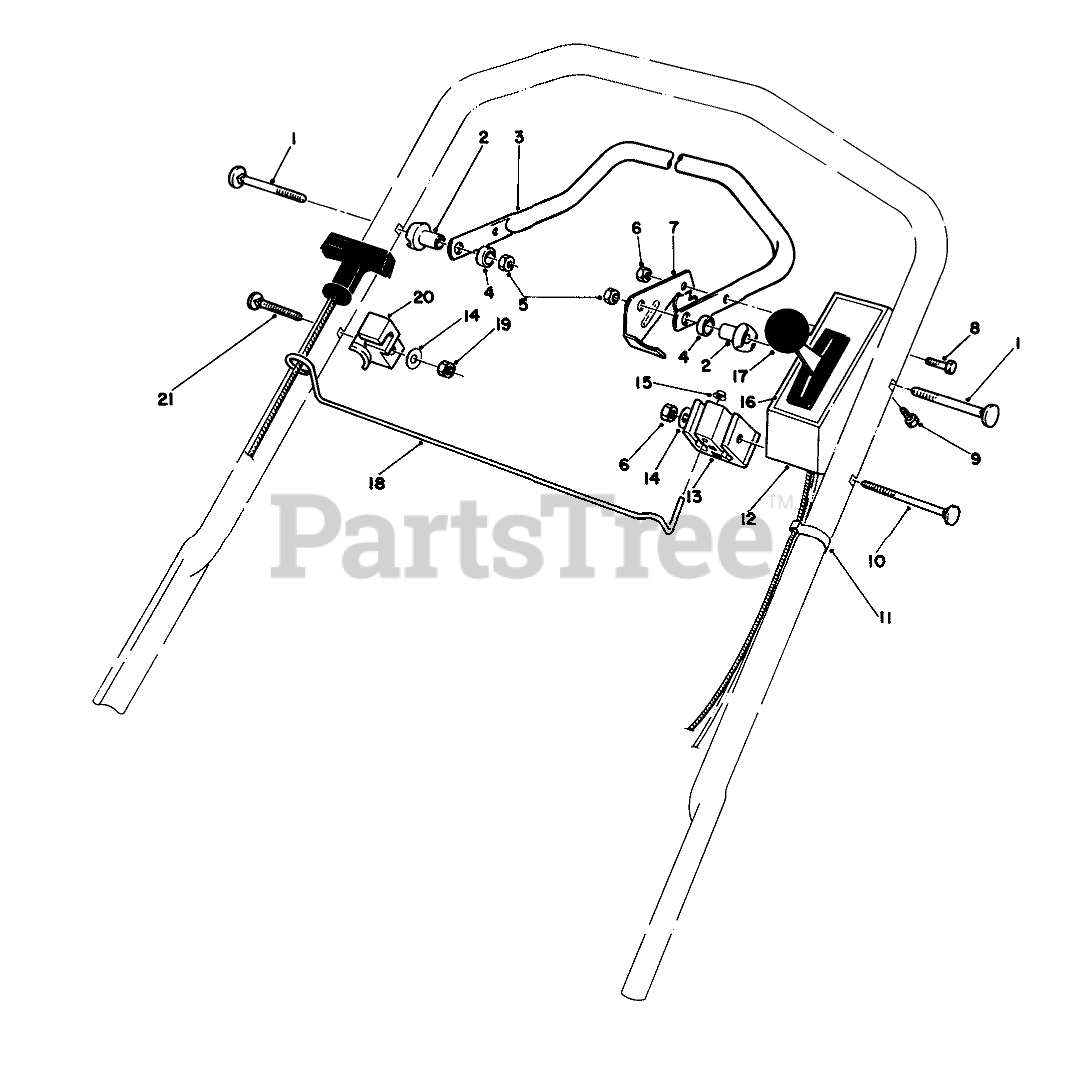

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

2

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

3

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

9

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

11

Toro 218-465

BOWDEN CLIP

$

$

Not available

12

Toro 11-6749

Cover-Control (Incl. Ref. #16)

$

$

Not available

13

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

16

Toro 49-7790

Decal-Control Cover

$

$

Not available

17

Toro 49-4193

THROTTLE CONT-SERVICE

$67.99

$

Usually ships in 3-6 days

0

18

Toro 46-7970

ROPE ROD PLATED

$

$

Not available

19

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

20

Toro 46-7960

ROD CATCH

$19.99

$

Usually ships in 3-6 days

0

21

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0
