20610 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

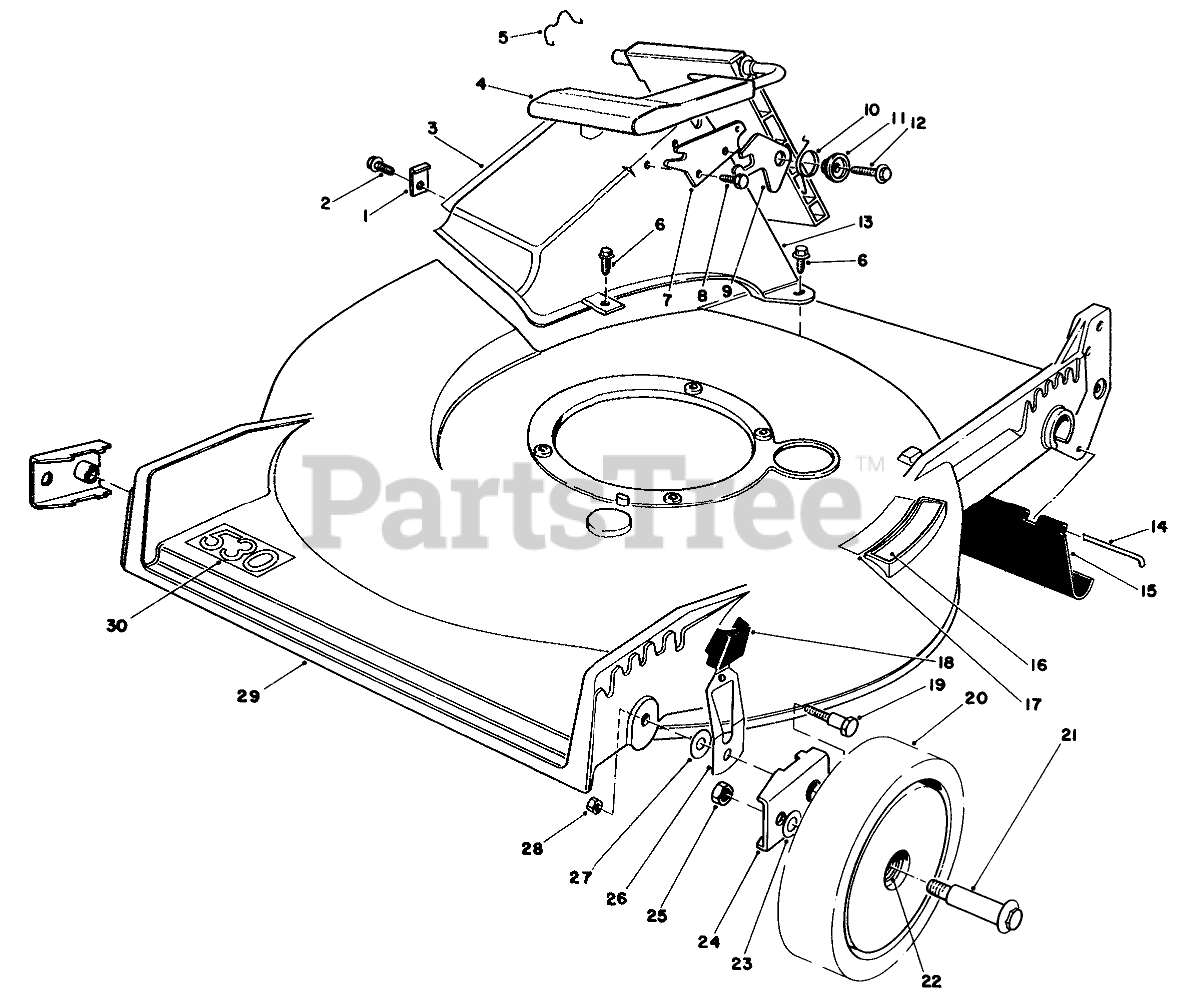

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 47-6540

TUNNEL CLIP

$

$

Not available

2

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

3

Toro 40-3051

Decal-Attention

$

$

Not available

4

Toro 51-0200

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

5

Toro 47-5840

DOOR RET SPRING

$

$

Not available

6

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

7

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

8

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

9

Toro 42-4010

SAFETY LATCH

$

$

Not available

10

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

11

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

12

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

13

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$164.99

$

Usually ships in 3-6 days

0

14

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

15

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

16

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

17

Toro 40-2720

Decal-Place Foot Here

$

$

Not available

18

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

19

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 13

0

20

Toro 11-6349

Wheel & Tire Assembly (Incl. Ref. #22)

$

$

Not available

21

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

22

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

23

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

24

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

25

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$47.99

$

Usually ships in 3-6 days

0

27

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

28

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 11-4069

21HP RB-SUZ HSG/DECAL

$1081.99

$

Usually ships in 3-6 days

0

30

Toro 46-9410

Decal-530

$

$

Not available
