20652 - Toro 51cm Recycler Walk-Behind Mower (SN: 210000435 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

51cm Recycler Walk-Behind Mower

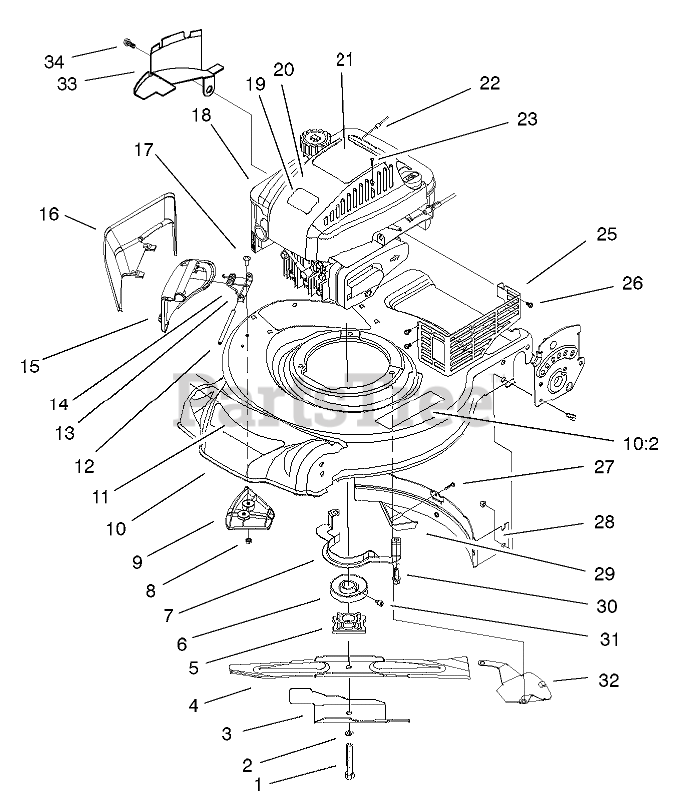

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

2

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

3

Toro 93-0219-03

ACCELERATOR

$22.99

$

Usually ships in 3-6 days

0

4

Toro 93-0241-03

BLADE-STEEL DECK

$39.99

$

In Stock, only 4 left!

0

5

Toro 104-7609

RETAINER-BLADE, CE

$39.99

$

Usually ships in 3-6 days

0

6

Toro 95-1878

PULLEY

$55.99

$

Usually ships in 3-6 days

0

7

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

8

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 16

0

9

Toro 99-6349

BAFFLE

$21.99

$

Usually ships in 3-6 days

0

10

Toro 104-0228

HOUSING

$

$

Not available

10:2

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

11

Toro 100-5954

DECAL-DECK

$

$

Not available

12

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

13

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$10.99

$

In Stock, Qty 6

0

14

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 20+

0

15

Toro 99-5294

COVER-SIDE

$19.99

$

Usually ships in 3-6 days

0

16

Toro 99-5295

CHUTE-SIDE

$13.99

$

In Stock, only 3 left!

0

17

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Engine-Quantum 6.0,Zs Briggs & Stratton Model 12h802-1776-B1

Note: Not serviced

$

$

Not available

19

Toro 98-3206

Decal

$1.99

$

In Stock, only 3 left!

0

20

Toro 93-0243

SHROUD-ENGINE

$50.99

$

Usually ships in 3-6 days

0

21

Toro 100-5952

DECAL-ENGINE

$

$

Not available

22

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

23

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.49

$

In Stock, only 4 left!

0

25

Toro 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

26

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

27

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

28

Toro 93-0223-03

BAFFLE-REAR

$25.99

$

Usually ships in 3-6 days

0

29

Toro 93-0217

KICKER-REAR

$14.99

$

Usually ships in 3-6 days

0

30

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

31

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

32

Toro 93-4196-03

SHIELD-GRASS

$13.99

$

In Stock, only 3 left!

0

33

Toro 99-0905

GUARD-FLYWHEEL

$

$

Not available

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
