20654 - Toro 50cm Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE AND BLADE ASSEMBLY Parts Diagram

50cm Recycler Walk-Behind Mower

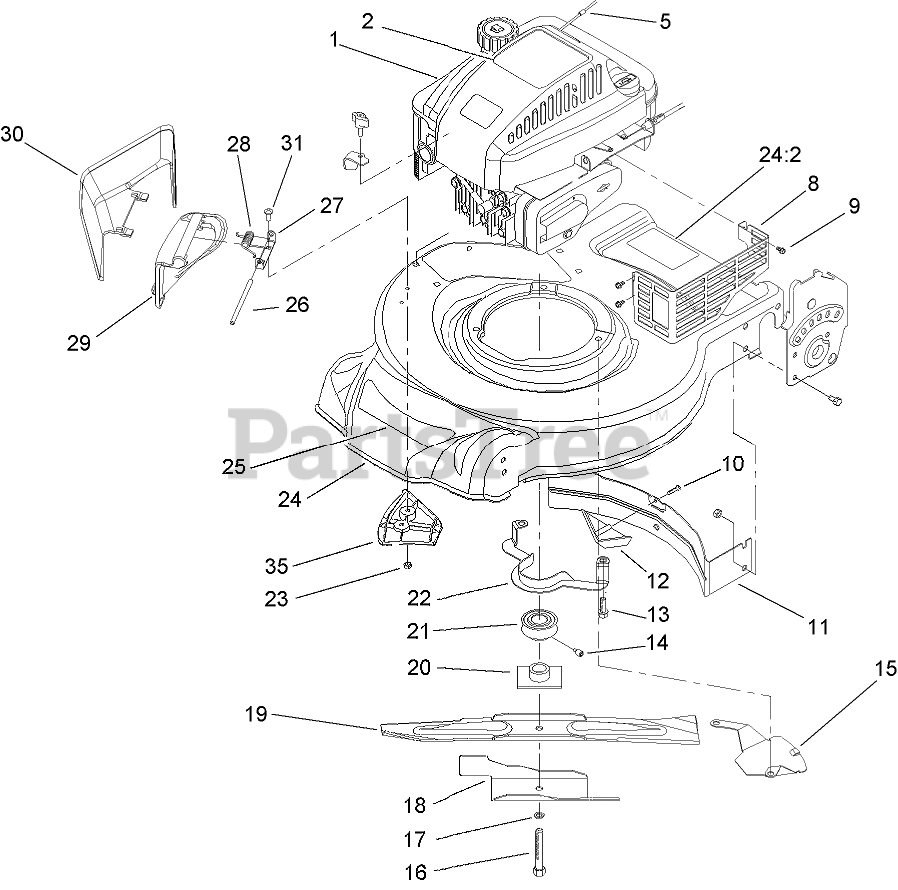

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-Briggs and Stratton, 122K02-0172-E1

Note: Not serviced separately

$

$

Not available

1

ENGINE-Briggs and Stratton, 122K02-0172-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 107-3748

DECAL-RECOIL

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

8

Toro 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

9

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

10

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

11

Toro 93-0223-03

BAFFLE-REAR

$25.99

$

Usually ships in 3-6 days

0

12

Toro 93-0217

KICKER-REAR

$14.99

$

Usually ships in 3-6 days

0

13

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-8875

Screw-Set, Cone Point

$10.99

$

In Stock, only 1 left!

0

15

Toro 93-4196-03

SHIELD-GRASS

$13.99

$

In Stock, only 3 left!

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Toro 93-0219-03

ACCELERATOR

$22.99

$

Usually ships in 3-6 days

0

19

Toro 93-0241-03

BLADE-STEEL DECK

$39.99

$

In Stock, only 3 left!

0

20

Toro 104-7609

RETAINER-BLADE, CE

$39.99

$

Usually ships in 3-6 days

0

21

Toro 95-1878

PULLEY

$55.99

$

Usually ships in 3-6 days

0

22

Toro 92-1024-03

GUIDE-BELT

$

$

Not available

23

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

24

Toro 104-0228

HOUSING

$

$

Not available

24:2

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

25

Toro 108-8116

DECAL-HOUSING

$

$

Not available

26

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

27

Toro 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$10.99

$

In Stock, Qty 5

0

28

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 19

0

29

Toro 99-5294

COVER-SIDE

$19.99

$

Usually ships in 3-6 days

0

30

Toro 99-5295

CHUTE-SIDE

$13.99

$

In Stock, only 3 left!

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

35

Toro 99-6349

BAFFLE

$21.99

$

Usually ships in 3-6 days

0
