20657 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) MAGNETO NO. 610900A (MODEL NO. 20644 AND 20657) Parts Diagram

Walk-Behind Mower

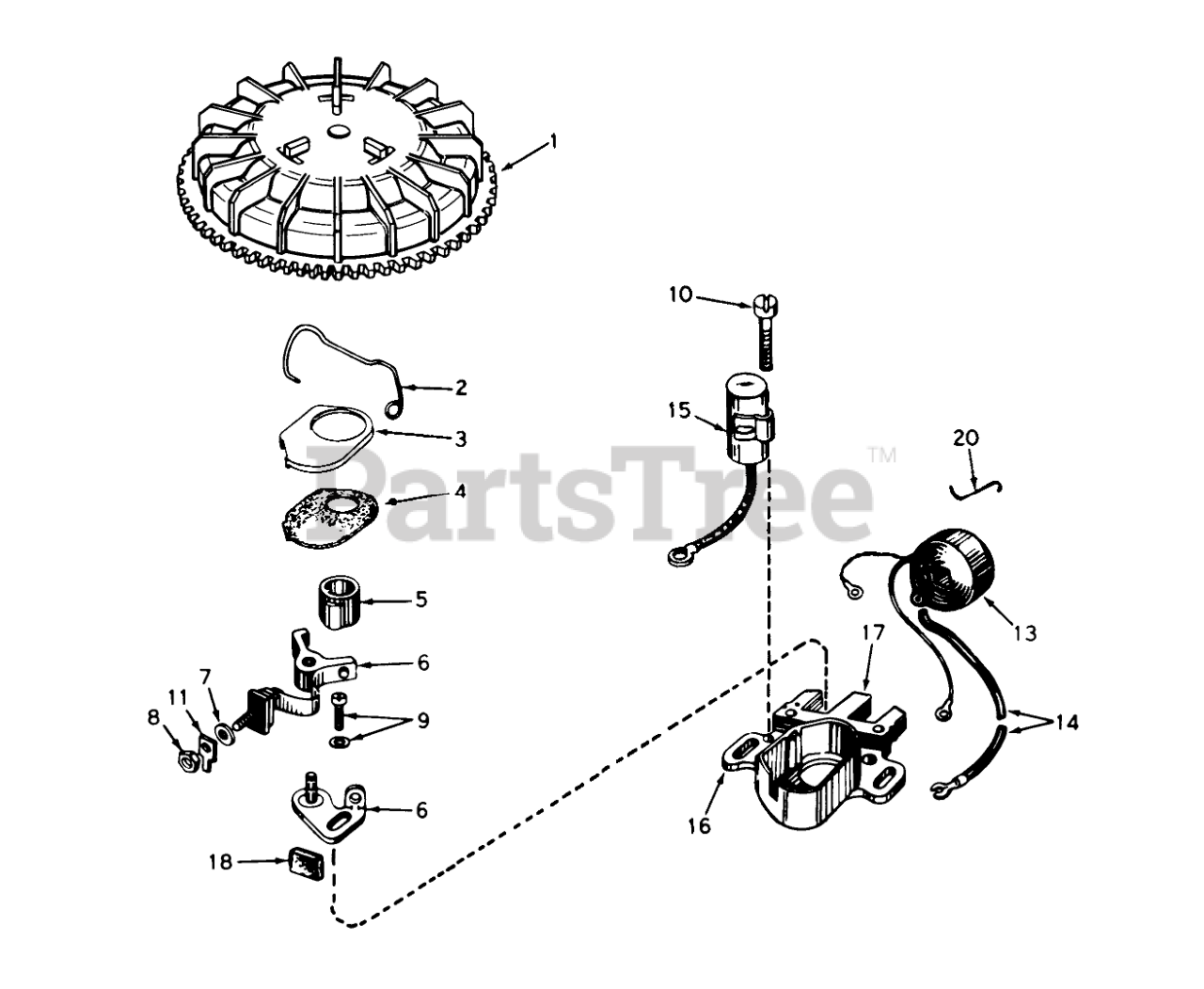

MAGNETO NO. 610900A (MODEL NO. 20644 AND 20657) Parts Diagram

  • Title

1

Tecumseh 610899A

Flywheel (Incl. Ref #3 & 4)

$

$

Currently unavailable

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 610947

Cover-Dust

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 610950

Gasket, Dust Cover

$

$

Currently unavailable

5

Tecumseh 30992

Cam-Breaker

$

$

Not available

6

Tecumseh 30547A

Breaker Assy.

$18.99

$

In Stock, Qty 7

0

7

Tecumseh 610385

Washer

$

$

Not available

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33356

Terminal, Ground

$1.99

$

In Stock, Qty 5

0

13

Tecumseh 30560A

Coil Assembly (Incl. Ref. #14)

$48.99

$

In Stock, only 4 left!

0

14

Tecumseh 30554

Wire, Lead

$

$

Not available

15

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 20+

0

16

Tecumseh 30545

Core & Plate

$

$

Not available

17

Tecumseh 30561B

Stator Assembly (Incl. Ref. #2, 3, 4, 6 thru 16, 18 & 20)

$

$

Not available

18

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 4 left!

0

20

Tecumseh 31311

Clip, Coil

$

$

Not available
