20690 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

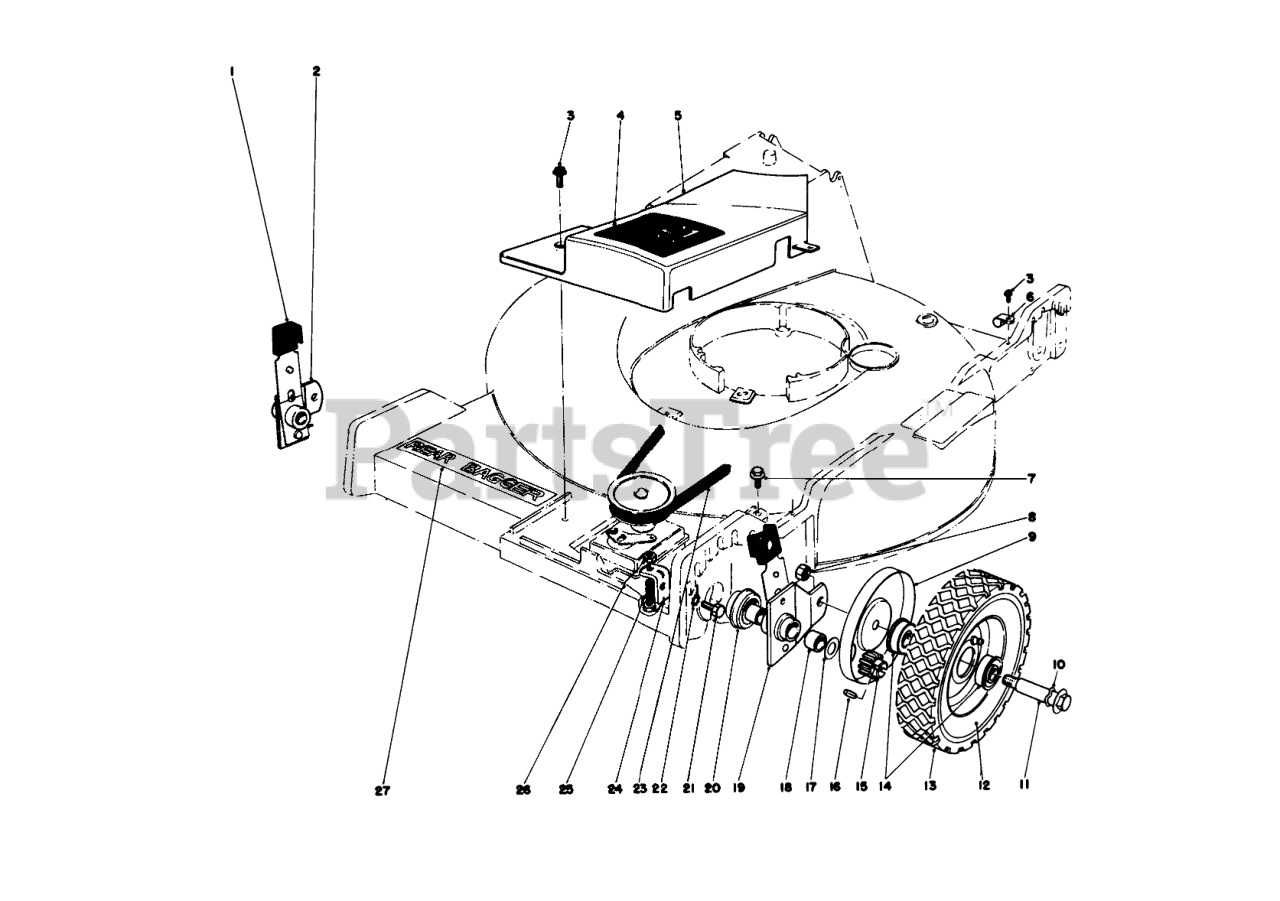

FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

2

Toro 25-8190

Pivot Arm Assembly (Incl. Ref. #18)

$

$

Not available

3

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

4

Toro 33-2940

Decal Belt Cover
(Superseded to 28-4750)

$

$

Not available

5

Toro 33-2950

BELT COVER

$

$

Not available

6

Toro 2412-52

CLAMP-NYLON

$

$

Not available

7

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

8

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

9

Toro 23-0280

WHEEL COVER

$

$

Not available

10

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

11

Toro 26-4430

WHEEL BOLT

$54.99

$

Usually ships in 3-6 days

0

12

Toro 26-3010

Wheel & Tire Assembly (Incl. Ref. #13 & 14)
(Superseded to 11-1389)

$

$

Not available

13

Toro 5-3543

TIRE

$

$

Not available

14

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

15

Toro 18-9690

Pinion
(Superseded to 99-2532)

$13.99

$

Usually ships in 3-6 days

0

16

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

17

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

18

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

19

Toro 25-8180

Pivot Arm Assembly (Incl. Ref. #18)

$126.99

$

Usually ships in 3-6 days

0

20

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

21

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

23

Toro 24-9730

V-BELT

$20.99

$

Usually ships in 3-6 days

0

24

Toro 25-7560

Bracket-Gear Box

$

$

Not available

25

Toro 3-7281

SCREW

$

$

Not available

26

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

27

Toro 33-2320

DECK DECAL

$

$

Not available
