20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

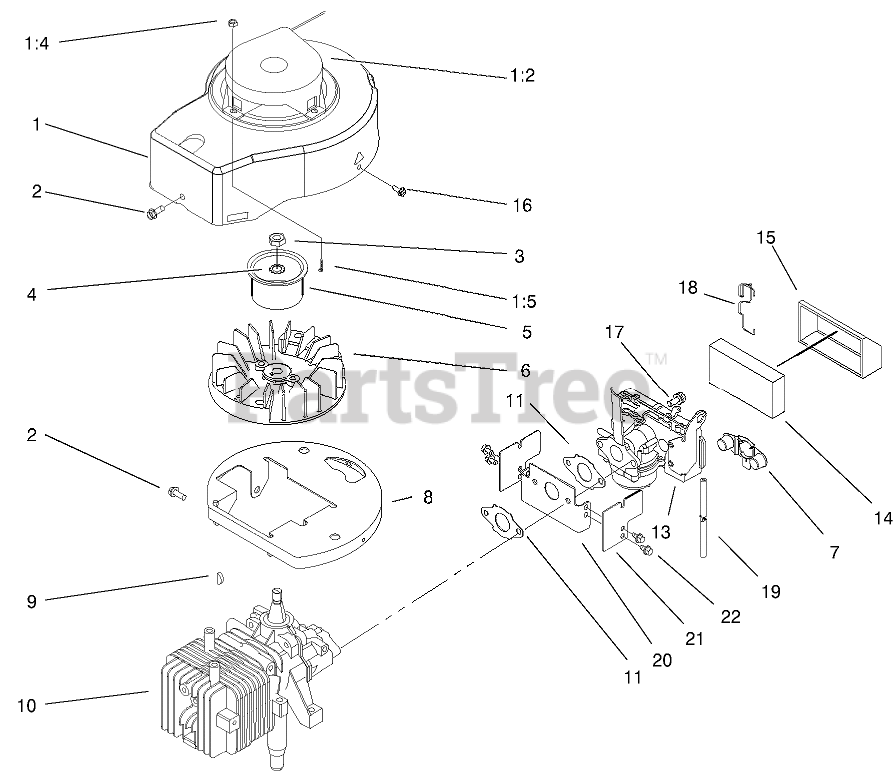

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4304

SHROUD
(Superseded to 107-4605)

$

$

Not available

1:2

Toro 93-1236

RECOIL-STARTER V

$150.99

$

Usually ships in 3-6 days

0

1:4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

1:5

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

2

Toro 614702

SCREW
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

3

Toro 130743

NUT

$2.99

$

In Stock, Qty 7

0

4

Toro 316959

WASHER-LOCK
(Superseded to 325-36)

$8.49

$

In Stock, Qty 20+

0

5

Toro 614640

HUB-STARTER V

$34.99

$

Usually ships in 3-6 days

0

6

Toro 684743

FLYWHEEL(MACH) V

$

$

Not available

7

Toro 93-4320

SHIELD-FUEL V

$

$

Not available

8

Toro 93-1216-03

BASE-SHROUD

$

$

Not available

9

Toro 607199

KEY

$4.99

$

In Stock, Qty 12

0

10

Toro 93-4349

Short Block ASM
(Superseded to 94-5737)

$

$

Not available

11

Toro 92-4948

GASKET-CARB VF

$1.99

$

In Stock, Qty 20+

0

13

Toro 93-4331

CARBURETOR ASM

$242.99

$

Usually ships in 3-6 days

0

14

Toro 609493

ELEMENT-AIR FIL VF
(Superseded to 107-4621)

$4.99

$

In Stock, Qty 20+

0

15

Toro 93-1231

COVER-AIR FIL. V

$

$

Not available

16

Toro 614699

SCREW VF

$1.99

$

In Stock, Qty 11

0

17

Toro 609482

SCREW

$2.49

$

In Stock, Qty 8

0

18

Toro 610383

RETAINER-COVER, FILTER

$7.99

$

In Stock, Qty 20+

0

19

Toro 44-3174

HOSE-PRIMER

$4.99

$

In Stock, Qty 20+

0

20

Toro 93-4315

SHIELD-CARB V INTL

$

$

Not available

21

Toro 93-4316

SHIELD- GOV. V INTL

$

$

Not available

22

Toro 613269

SCREW V

$1.99

$

Usually ships in 3-6 days

0
