20711 - Toro 53cm Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower

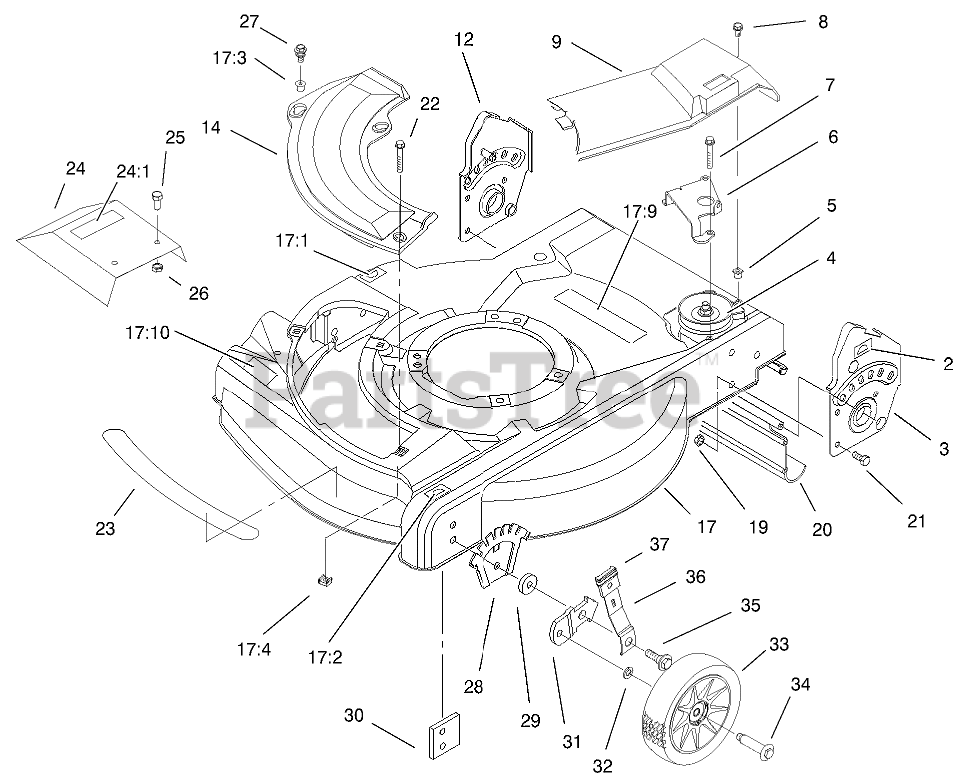

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 93-6671

DECAL-HOC, RH

Note: Not illustrated

$

$

Not available

2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

3

Toro 92-7724

HANDLE BRACKET ASM-LH
(Superseded to 105-8604)

$47.99

$

Usually ships in 3-6 days

0

5

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 16

0

4

Toro 92-7735

Gear Case
(Superseded to 104-7671)

$

$

Not available

6

Toro 92-7728-03

GUIDE-TRANSMISSION

$7.99

$

In Stock, only 1 left!

0

7

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, Qty 11

0

9

Toro 95-7068

COVER-DRIVE

$25.99

$

In Stock, only 1 left!

0

12

Toro 92-7723

HANDLE BRACKET ASM-RH
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

14

Toro 95-7052

PLATE-OPENING, CHUTE

$30.99

$

In Stock, only 1 left!

0

17

Toro 95-7088

HOUSING

$422.99

$

Usually ships in 3-6 days

0

17:1

Toro 93-6671

DECAL-HOC, RH

$

$

Not available

17:2

Toro 93-6670

DECAL-HOC, LH

$

$

Not available

17:3

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

17:4

Toro 613765

NUT-CAGE

$8.49

$

In Stock, Qty 11

0

17:9

Toro 93-6657

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

17:10

Toro 93-6667

DECAL - WARNING

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 92-8647

SHIELD-TRAILING

$35.99

$

In Stock, Qty 9

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

23

Toro 95-7055

DECAL - DECK

$

$

Not available

24

Toro 94-1697

GUARD PLATE ASM

$233.99

$

Usually ships in 3-6 days

0

24:1

Toro 93-6667

DECAL - WARNING

$

$

Not available

25

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

28

Toro 92-4881-03

PLATE-HEIGHT, ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

29

Toro 92-4890

WASHER

$8.99

$

Usually ships in 3-6 days

0

30

Toro 92-7731

PLATE-BAFFLE

$8.99

$

Usually ships in 3-6 days

0

31

Toro 95-7403-03

BRACKET-HEIGHT ADJUSTMENT, WHEEL

$

$

Not available

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

33

Toro 684776

WHEEL AND TIRE ASM

$33.99

$

In Stock, Qty 20+

0

34

Toro 92-1099

BOLT-SHOULDER

$7.49

$

In Stock, Qty 10

0

35

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 9

0

36

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

37

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!
