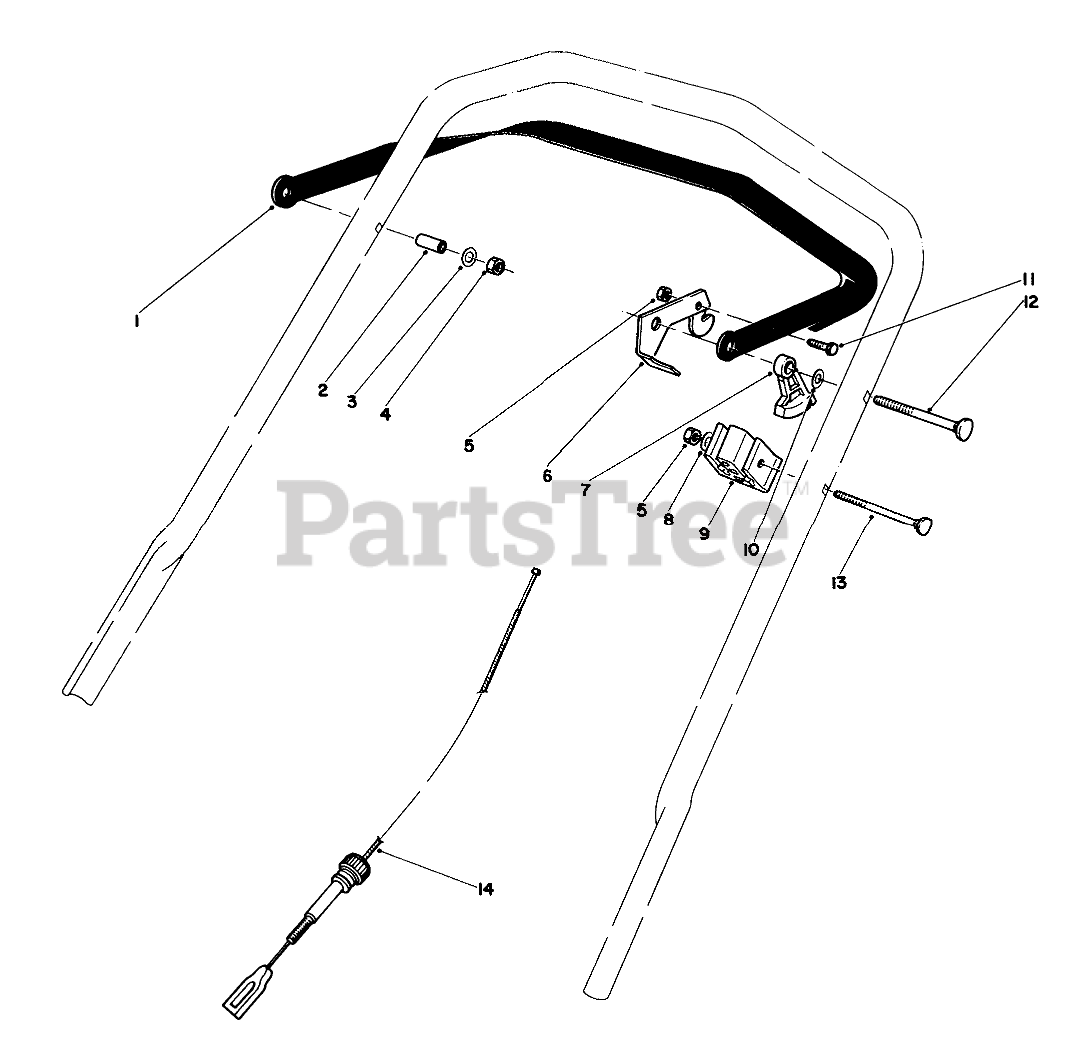

20715 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

2

Toro 46-5580

Spacer

$

$

Not available

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 46-8800

CONTROL LEVER

$

$

Not available

7

Toro 46-5520

LEVER-TRACTION

$

$

Not available

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

10

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

11

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

13

Toro 46-6432

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

14

Toro 46-5481

CABLE-TRACTION

$56.99

$

Usually ships in 3-6 days

0
