20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

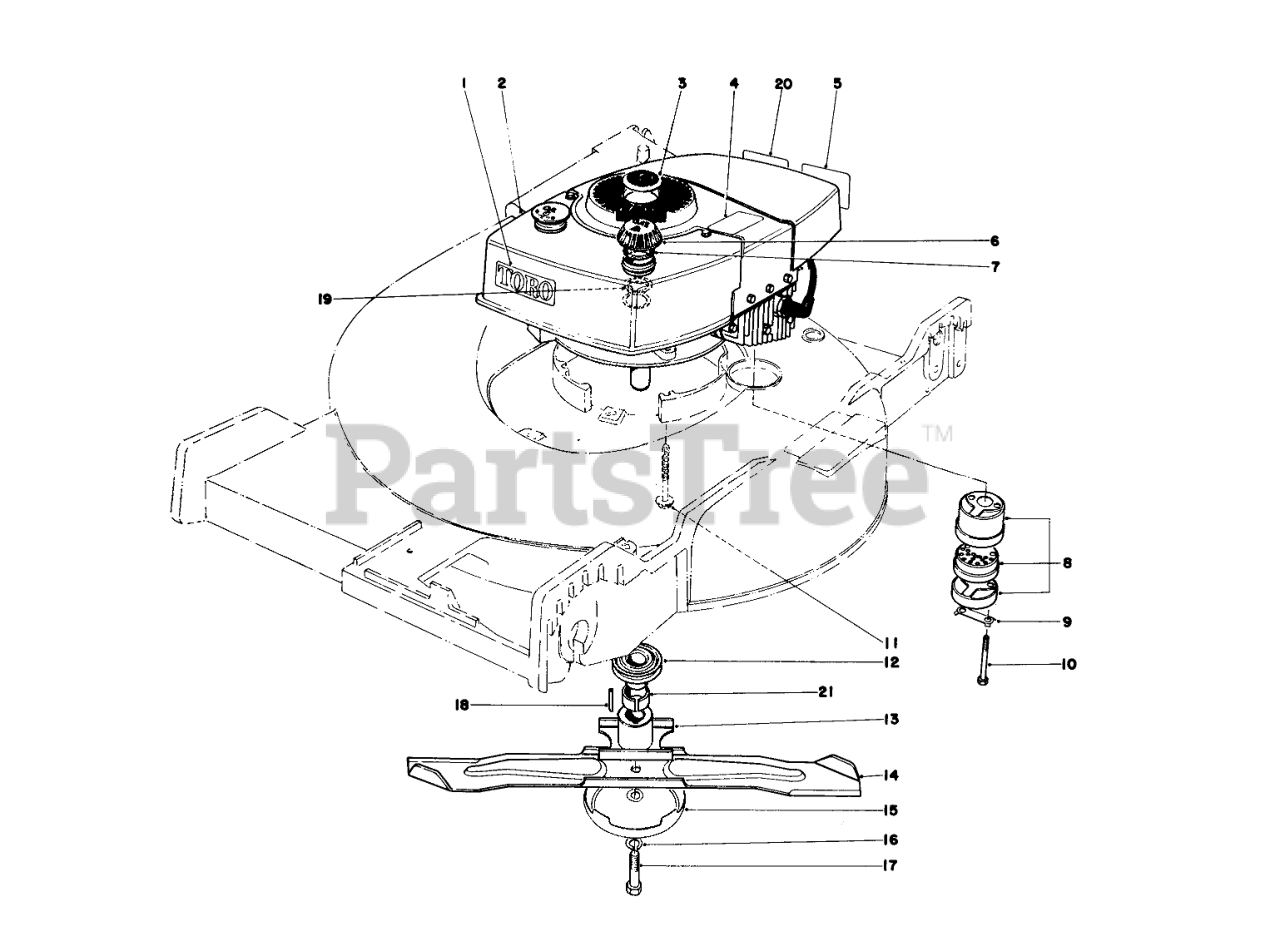

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 18-8960

Decal Toro

$

$

Currently unavailable

2

Toro 221-543

Engine

$

$

Currently unavailable

3

Toro 23-0600

Plug Button
(Superseded to 38-1480)

$16.99

$

In Stock, only 1 left!

0

4

Toro 36-7820

Decal Lockout

$

$

Not available

5

Toro 20-2710

Decal Maintenance

$

$

Not available

6

Toro 27-7870

Gas Cap Assembly (Incl. Ref. #7 & 19)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #9 & 10)

$54.99

$

Usually ships in 3-6 days

0

Toro 36-3200

Muffler (Spark Arrestor-Optional)
(Superseded to 39-5930)

Note: Not illustrated

$

$

Not available

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

12

Toro 24-6580

PULLEY DRIVER

$

$

Not available

13

Toro 24-6560

BLADE RETAINER WA

$127.99

$

Usually ships in 3-6 days

0

14

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, Qty 7

0

15

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

17

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

18

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

19

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

20

Toro 36-7840

Decal-Maintenance

$

$

Currently unavailable

21

Toro 24-8880

Pulley Spacer

$

$

Not available
