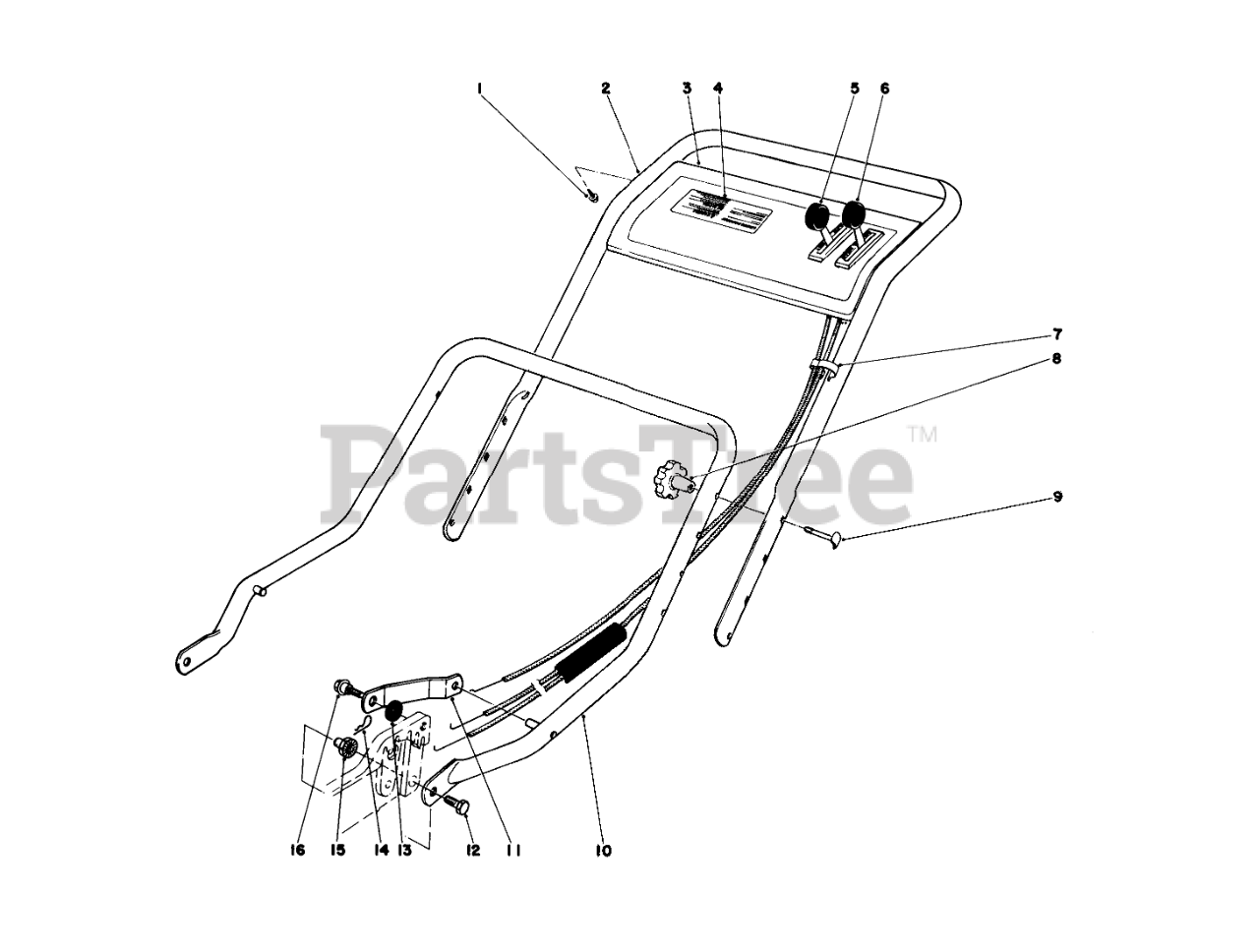

20730 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1978) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 28-5430

Upper Handle

$

$

Not available

3

Toro 26-0680

Control Plate

$

$

Currently unavailable

4

Toro 37-1130

Decal Control Plate

$

$

Not available

5

Toro 33-2544

Throttle Control
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

6

Toro 33-2551

Traction Control
(Superseded to 46-6050)

$

$

Not available

7

Toro 218-465

BOWDEN CLIP

$

$

Not available

8

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

9

Toro 6-6330

HANDLE SCREW

$

$

Not available

10

Toro 26-0740

Lower Handle

$

$

Currently unavailable

11

Toro 26-0760

HANDLE LATCH

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

14

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

15

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

16

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0
