20747 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

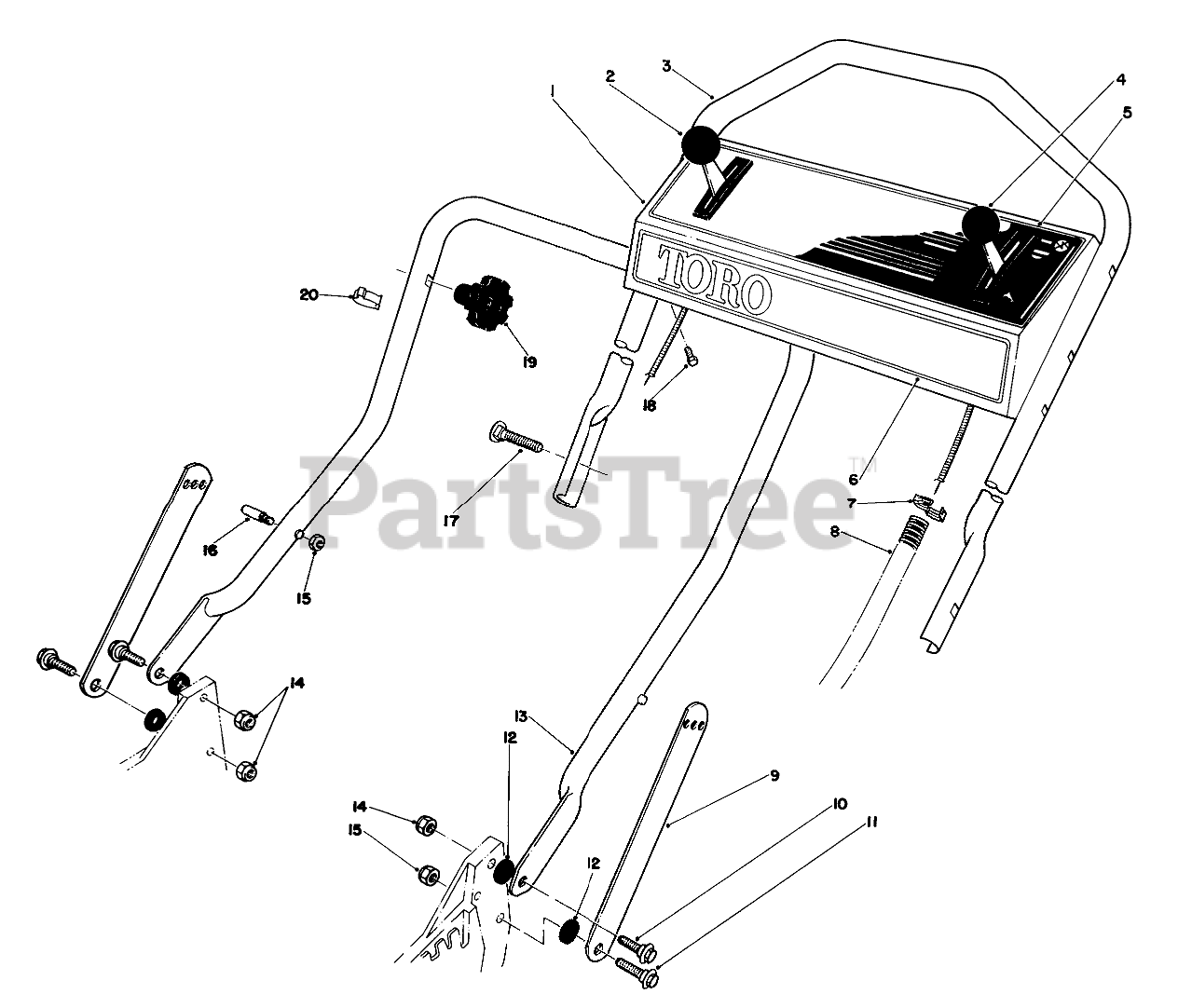

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-9579

Panel-Control (Incl. Ref. #5)

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$80.99

$

Usually ships in 3-6 days

0

3

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

4

Toro 494183

Control-Throttle (Bend #5)(Sheath 4. 55-7/8 inches)(Wire 4. 2-1/2 inches)
(Superseded to 49-4183)

$65.99

$

Usually ships in 3-6 days

0

5

Toro 52-1600

Decal-Instruction Panel

$

$

Not available

6

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

7

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

8

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

9

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

10

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

11

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

12

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

13

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$32.99

$

Usually ships in 3-6 days

0

17

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

18

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

20

Toro 218-465

BOWDEN CLIP

$

$

Not available
