20755 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

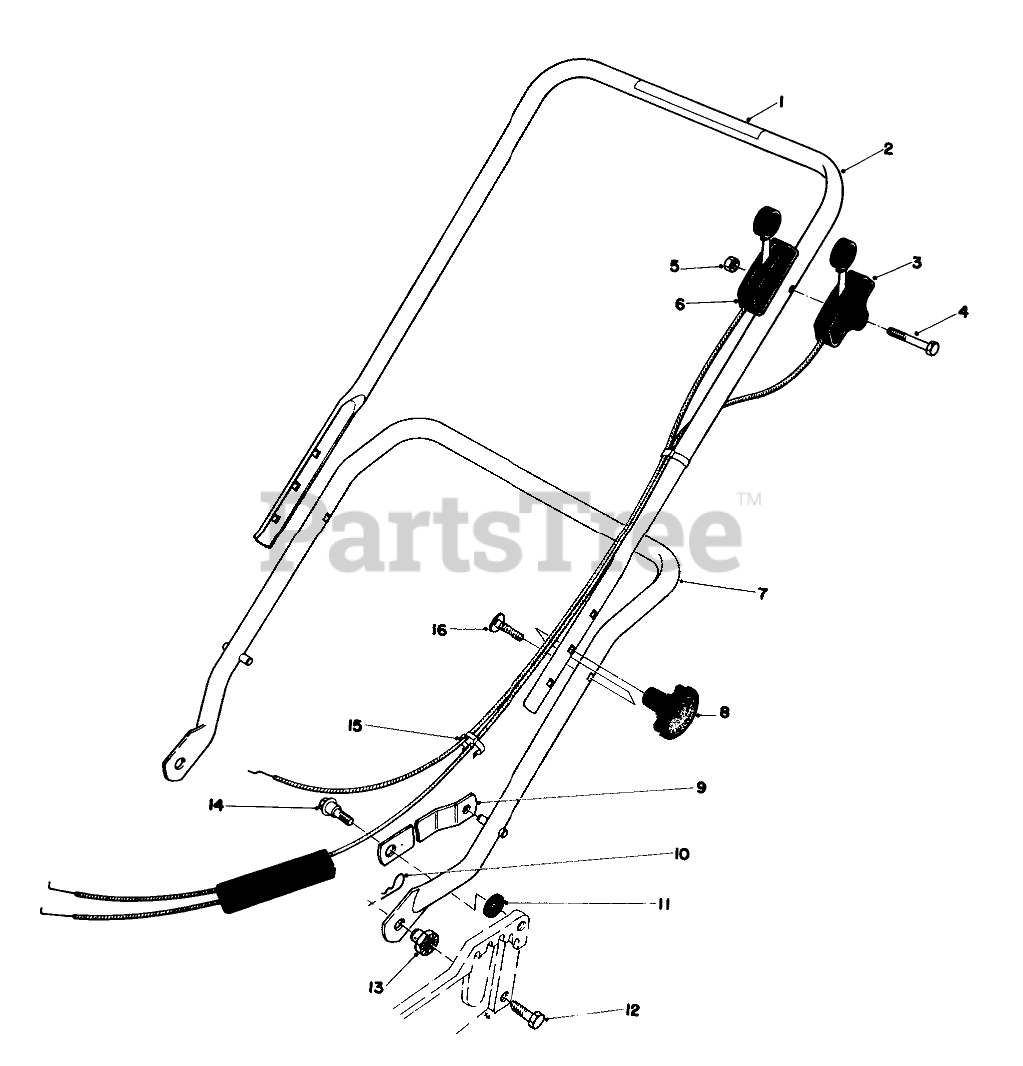

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-6290

Decal

$

$

Not available

2

Toro 33-4293

Upper Handle

$

$

Not available

3

Toro 33-2525

Traction Control
(Superseded to 46-6030)

$

$

Not available

4

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 8

0

5

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

6

Toro 33-2534

Throttle Control
(Superseded to 46-6000)

$42.99

$

Usually ships in 3-6 days

0

7

Toro 33-4340

LOWER HANDLE ASM

$

$

Not available

8

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

9

Toro 26-0760

HANDLE LATCH

$

$

Not available

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-2080

HANDLE PIVOT NUT

$22.99

$

Usually ships in 3-6 days

0

14

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

15

Toro 218-465

BOWDEN CLIP

$

$

Not available

16

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0
