20766 BC - Toro 53cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) TRACTION CONTROL ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

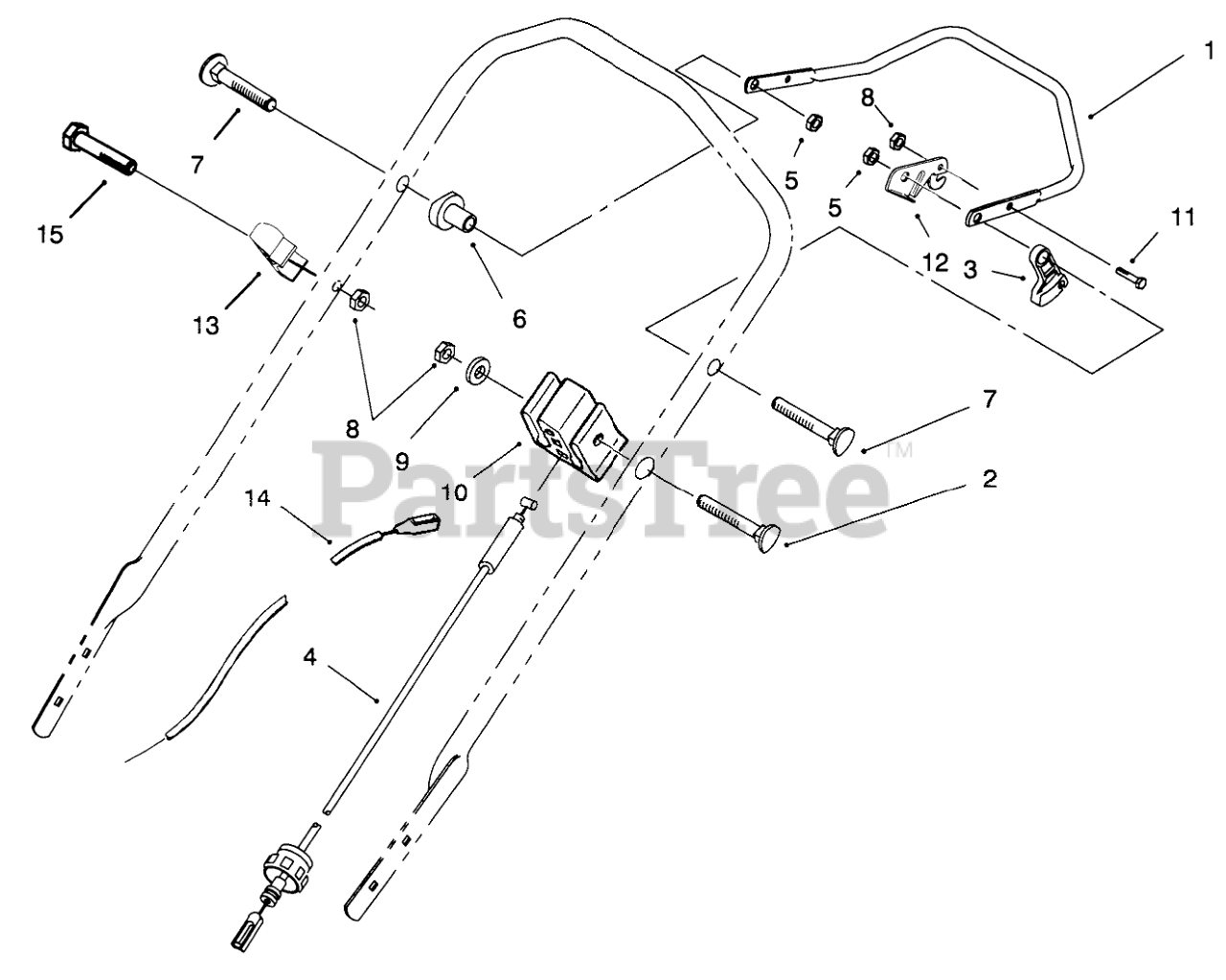

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

2

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

3

Toro 46-5520

LEVER-TRACTION

$

$

Not available

4

Toro 46-5481

CABLE-TRACTION

$56.99

$

Usually ships in 3-6 days

0

5

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 2 left!

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 13

0

12

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

13

Toro 92-7720

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 19

0

14

Toro 76-4331

BRAKE CONTROL

$79.99

$

Usually ships in 3-6 days

0

15

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available
