20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

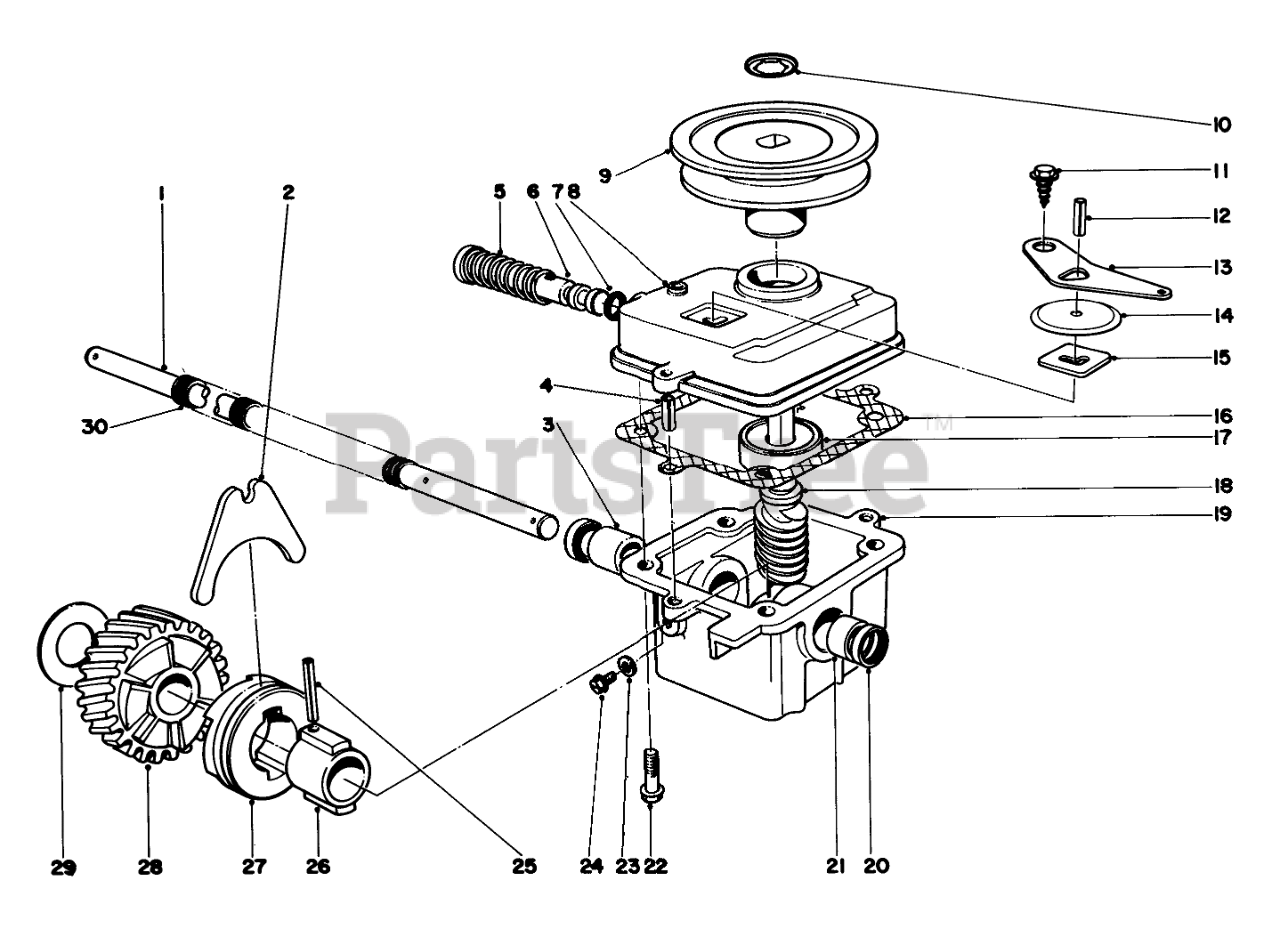

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 37-9440

DRIVE SHAFT (SERVCE)
Usually ships in 5 to 8 days

$

$126.83

0

2

Toro Part# 5-3247

SHIFTER FORK
Usually ships in 1 day

$

$14.61

0

3

Toro Part# 256-263

Bushing
(Superseded to 47-2900)
Usually ships in 1 day

$

$4.94

0

4

Toro Part# 32121-1

3/16 X 1/2 ROLL PIN
Usually ships in 5 to 8 days

$

$3.05

0

Usually ships in 5 to 8 days

$

$8.01

0

6

Toro Part# 46-8240

SHIFTER ROD
Usually ships in 5 to 8 days

$

$33.09

0

Usually ships in 5 to 8 days

$

$10.39

0

8

Toro Part# 39-1100

Case-Upper
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$54.26

0

10

Toro Part# 3290-346

PUSH-ON 93-3236
Usually ships in 5 to 8 days

$

$6.36

0

11

Toro Part# 32140-64

Screw
(Superseded to 32144-112)
Usually ships in 1 day

$

$0.94

0

12
Usually ships same day

Not available

$

$

13

Toro Part# 5-3252

SHIFTER ARM
Usually ships in 1 day

$

$29.94

0

14

Toro Part# 3-2615

TRANS DUST COVER
Usually ships same day

Not available

$

$

15

Toro Part# 3-0681

LATCH PLATE
Usually ships in 5 to 8 days

$

$49.89

0

16
Usually ships in 1 day

$

$7.01

0

17

Toro Part# 251-284

Bearing
(Superseded to 47-7250)
Usually ships in 5 to 8 days

$

$50.90

0

18

Toro Part# 8-5679

Worm Shaft/Gear (Incl. Ref. #28)
Usually ships in 1 day

$

$117.92

0

19

Toro Part# 8-0479

Gear Case (Incl . Ref. #3, 20 & 21)
Usually ships in 5 to 8 days

$

$181.69

0

20

Toro Part# 253-140

Seal
(Superseded to 47-6730)
Usually ships in 1 day

$

$8.93

0

21

Toro Part# 256-110

Bushing
(Superseded to 47-2890)
Usually ships in 1 day

$

$3.34

0

22

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

23

Toro Part# 46-9640

FILL PLUG GASKET
Usually ships in 5 to 8 days

$

$4.29

0

24

Toro Part# 28-1550

NYLON SCREW
Usually ships in 5 to 8 days

$

$5.37

0

25
Usually ships in 1 day

$

$6.81

0

26
Usually ships in 5 to 8 days

$

$38.65

0

27

Toro Part# 19-5660

CLUTCH JAW
Usually ships in 5 to 8 days

$

$32.30

0

28

Part#

Helical Gear
Usually ships same day

Not available

$

$

29

Toro Part# 3-0724

THRUST WASHER
Usually ships in 5 to 8 days

$

$6.93

0

30

Toro Part# 24-8690

DRIVE SHAFT COVER
Usually ships same day

Not available

$

$

Toro Part# 11-4719

Gear Case Assembly Complete

Note: Not illustrated

Usually ships same day

Not available

$

$
