20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230002004 - 230999999) (2003) GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

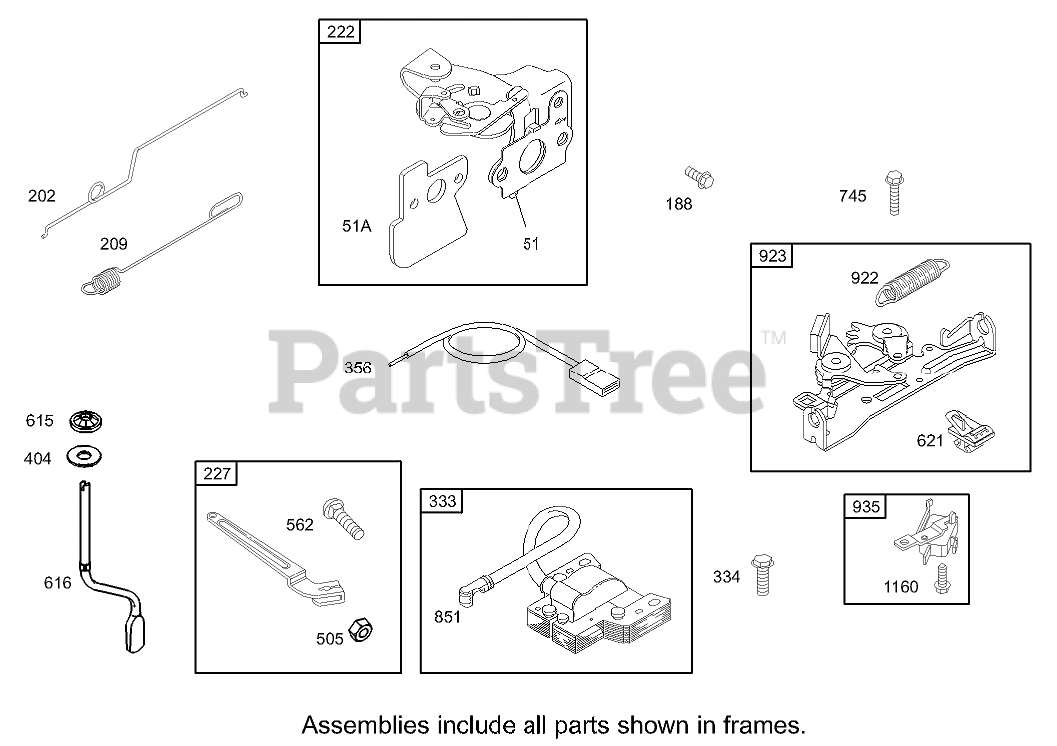

GOVERNOR ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

In Stock, only 3 left!

0

188

Briggs & Stratton 693168

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691303

Link?Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 691292

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 16

0

222

Briggs & Stratton 692723

Bracket?Control
(Superseded to 697614)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691467

Lever?Governor Control

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

Note: Obtain parts from www.briggsandstratton.com

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690272

Washer

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 94852

Screw (Governor Control Lever)
(Superseded to 691119)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 19

0

615

Briggs & Stratton 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 691308

Crank?Governor
(Superseded to 698801)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

745

Briggs & Stratton 691648

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

922

Briggs & Stratton 691831

Spring-Brake

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

923

Briggs & Stratton 691994

Brake ASM
(Superseded to 796387)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

935

Briggs & Stratton 499421

Switch-Interlock

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, only 1 left!

0

1160

Briggs & Stratton 691627

Screw
(Superseded to 690345)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0
