20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 122602-0120-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

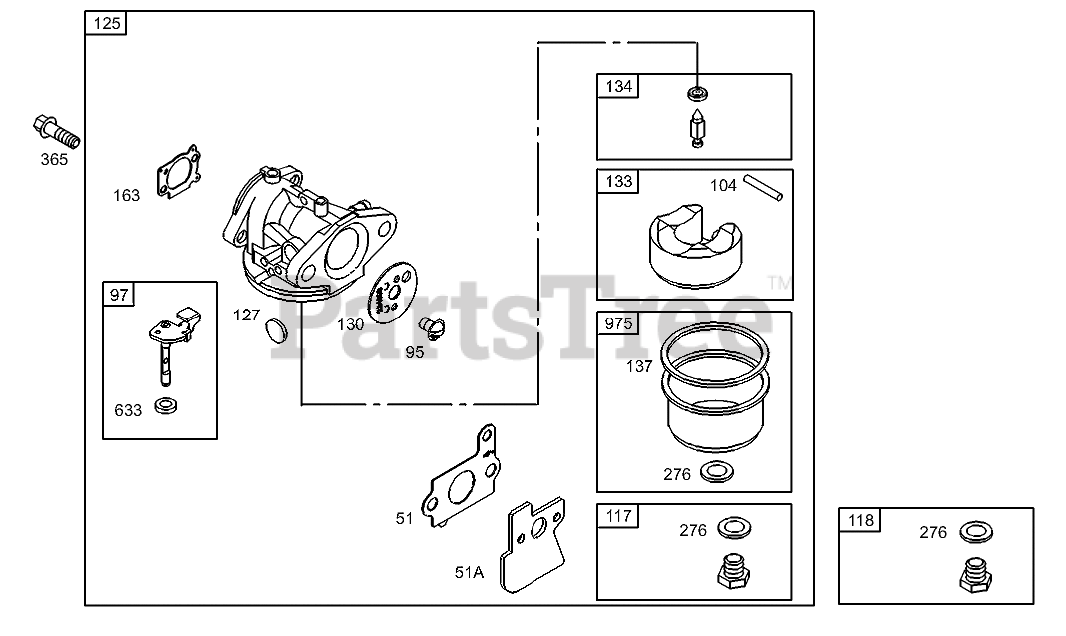

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 122602-0120-E1 Parts Diagram

  • Title
51

Briggs & Stratton 692668

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 6

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 6

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 6

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 6

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, Qty 6

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$14.99

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$14.99

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$14.99

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 4 left!

0

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 499682

Shaft?Throttle

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 5

0

117

Briggs & Stratton 498978

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 498975

Jet?Main
(Superseded to 798660)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 5

0

125

Briggs & Stratton 694202

Carburetor
(Superseded to 790120)

Note: Obtain parts from www.briggsandstratton.com

$59.99

$

In Stock, Qty 13

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 7

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 7

0

130

Briggs & Stratton 691203

Valve?Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 7

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Valve Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 691136

Screw
(Superseded to 691148)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0
