20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 122602-0120-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

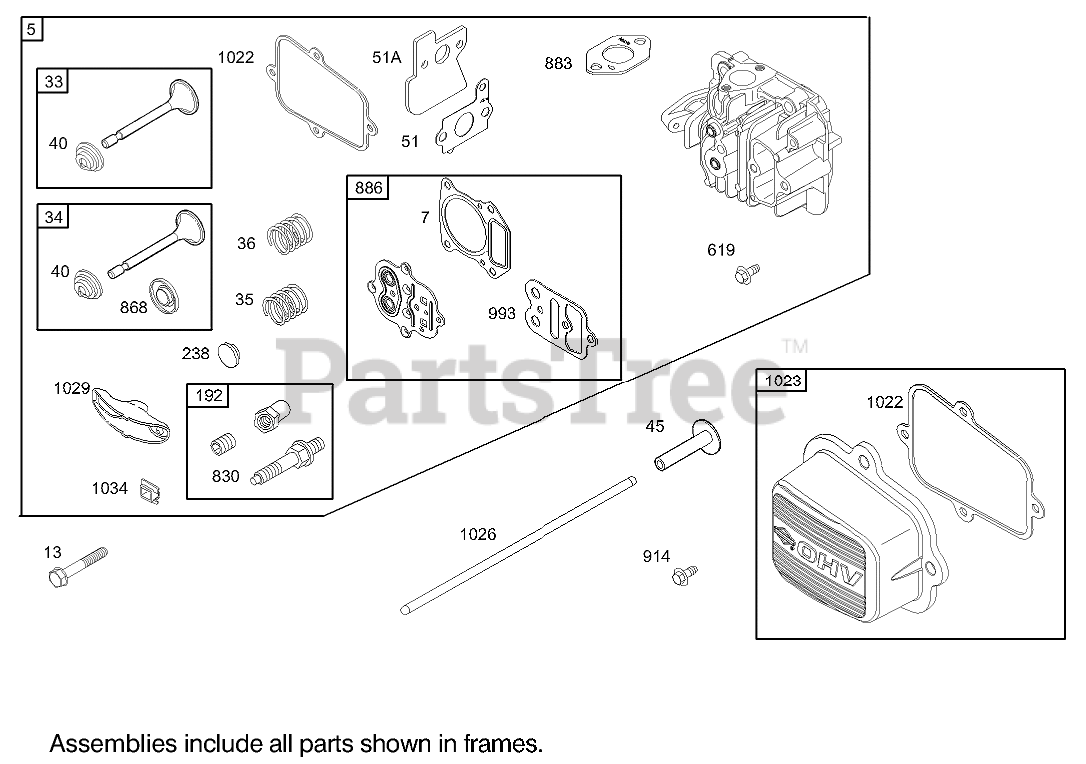

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 122602-0120-E1 Parts Diagram

  • Title

5

Briggs & Stratton 695276

Head?Cylinder
(Superseded to 799072)

Note: Obtain parts from www.briggsandstratton.com

$142.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 10

0

13

Briggs & Stratton 691137

Screw
(Superseded to 592244)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 16

0

33

Briggs & Stratton 499642

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 691304

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 691304

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 3 left!

0

192

Briggs & Stratton 694543

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

238

Briggs & Stratton 691300

Cap-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 11

0

619

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 694544

Stud-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 3 left!

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 11

0

886

Briggs & Stratton 696268

Cylinder Head Plate Gasket Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

914

Briggs & Stratton 691127

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 11

0

1023

Briggs & Stratton 692694

Cover?Rocker

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 692045

Rod?Push
(Superseded to 795444)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Rod, Push

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0
