20785 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

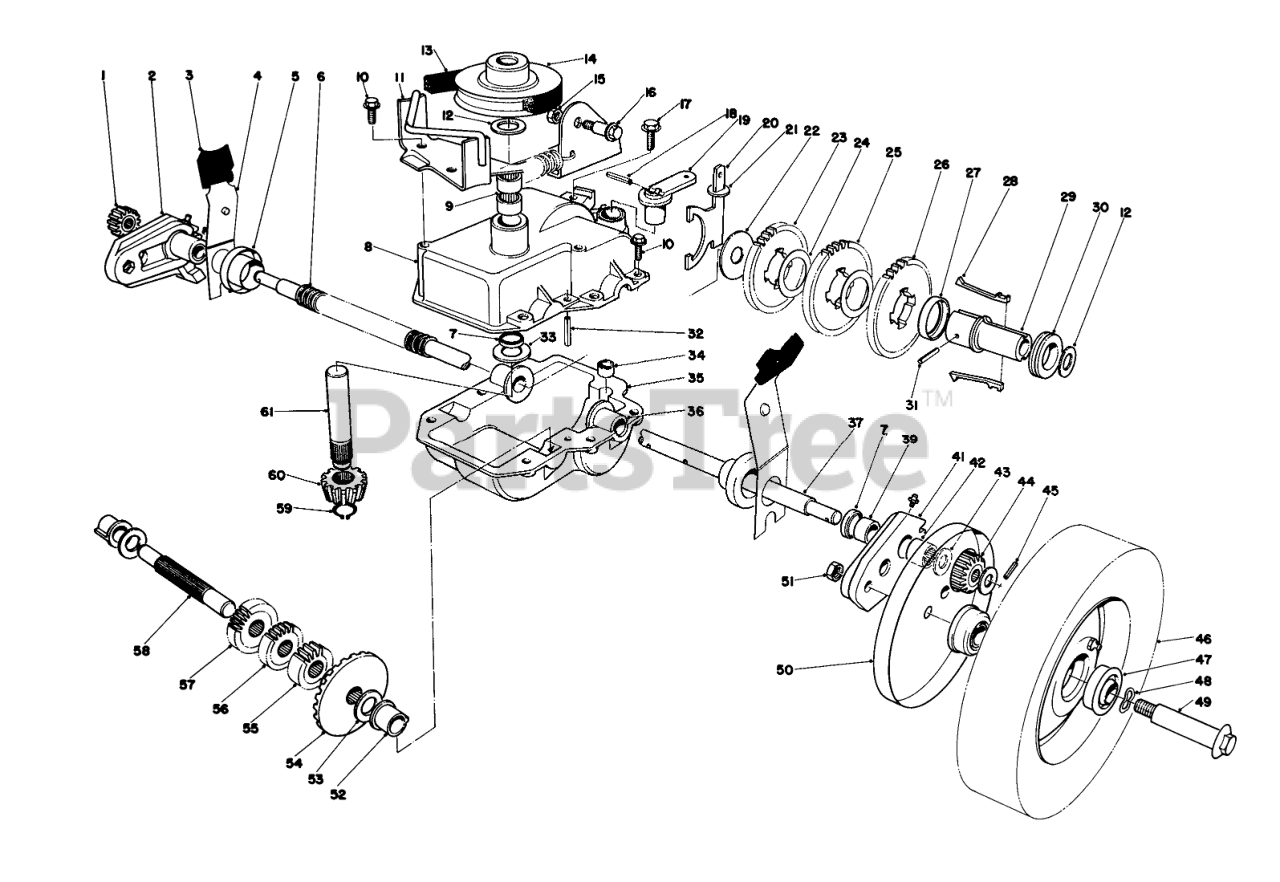

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 38-31

20 Clutch & Pinion Assembly

$

$

Currently unavailable

2

Toro 29-9590

Pivot Arm R.H. (Incl. Ref. #7, 39 & 42)
(Superseded to 49-7720)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 13

0

4

Toro 29-9540

Spring Arm
(Superseded to 44-1010)

$38.99

$

Usually ships in 3-6 days

0

5

Toro 3-2646

End Cap

$

$

Currently unavailable

6

Toro 247922

Cover-Drive Shaft

$

$

Currently unavailable

7

Toro 253-140

Seal
(Superseded to 47-6730)

$12.99

$

In Stock, Qty 20+

0

8

Toro 29-9360

Case Upper

$

$

Not available

9

Toro 252-97

Bearing
(Superseded to 47-7270)

$29.99

$

In Stock, Qty 7

0

10

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

11

Toro 38-7210

Belt Guide Bracket

$

$

Not available

12

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 17

0

13

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 20+

0

14

Pulley

$

$

Not available

15

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

16

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$16.99

$

Usually ships in 3-6 days

0

17

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

18

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 3 left!

0

19

Toro 29-9560

LEVER-SHIFT

$15.99

$

Usually ships in 3-6 days

0

20

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 3 left!

0

21

Toro 29-9380

Yoke Washer

$

$

Not available

22

Toro 29-9690

WASHER

$12.99

$

Usually ships in 3-6 days

0

23

Toro 29-9250

Gear 38T
(Superseded to 42-4740)

$82.99

$

In Stock, only 2 left!

0

24

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

25

Toro 29-9260

Gear
(Superseded to 14-2009)

$

$

Not available

26

Toro 29-9270

Gear
(Superseded to 29-9271)

$86.99

$

Usually ships in 3-6 days

0

27

Toro 29-9490

Key Retainer

$

$

Not available

28

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, Qty 8

0

29

Toro 29-9320

Sleeve

$

$

Not available

30

Toro 29-9340

COLLAR-SHIFT

$38.99

$

Usually ships in 3-6 days

0

31

Toro 32121-95

COIL PIN
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

32

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

33

Toro 256-196

Thrust Washer
(Superseded to 47-2910)

$13.99

$

In Stock, only 1 left!

0

34

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

35

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

36

Toro 29-9310

Bushing
(Superseded to 47-5220)

$

$

Not available

37

Toro 29-9390

OUTPUT SHAFT

$136.99

$

Usually ships in 3-6 days

0

39

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

41

Toro 29-9640

Pivot Arm L.H. (Incl. Ref. #7, 39 & 42)
(Superseded to 49-7710)

$

$

Not available

42

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 20+

0

43

Toro 29-9700

WASHER

$8.99

$

Usually ships in 3-6 days

0

44

Toro 36-8100

Pinion Gear
(Superseded to 39-7730)

$

$

Not available

45

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

46

Toro 38-2930

WHEEL ASM

$

$

Not available

47

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

48

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

49

Toro 26-4430

WHEEL BOLT

$54.99

$

Usually ships in 3-6 days

0

50

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$31.99

$

Usually ships in 3-6 days

0

51

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

52

Toro 29-9350

Botching Shaft
(Superseded to 52-5410)

$

$

Not available

53

Toro 36-4790

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

54

Toro 29-9210

Bevel Gear

$

$

Not available

55

Toro 29-9220

Gear

$

$

Currently unavailable

56

Toro 29-9230

Gear

$

$

Not available

57

Toro 29-9240

Gear 18T

$

$

Currently unavailable

58

Toro 29-9290

Short Shaft

$

$

Not available

59

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

60

Toro 29-9200

Pinion Bevel

$

$

Not available

61

Toro 8-5659

Input Shaft & Pulley Assy. (Incl. Ref. #14)

$

$

Not available

Toro 29-9400

Gear Case Assembly Complete

Note: Not illustrated

$

$

Not available
