20795 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

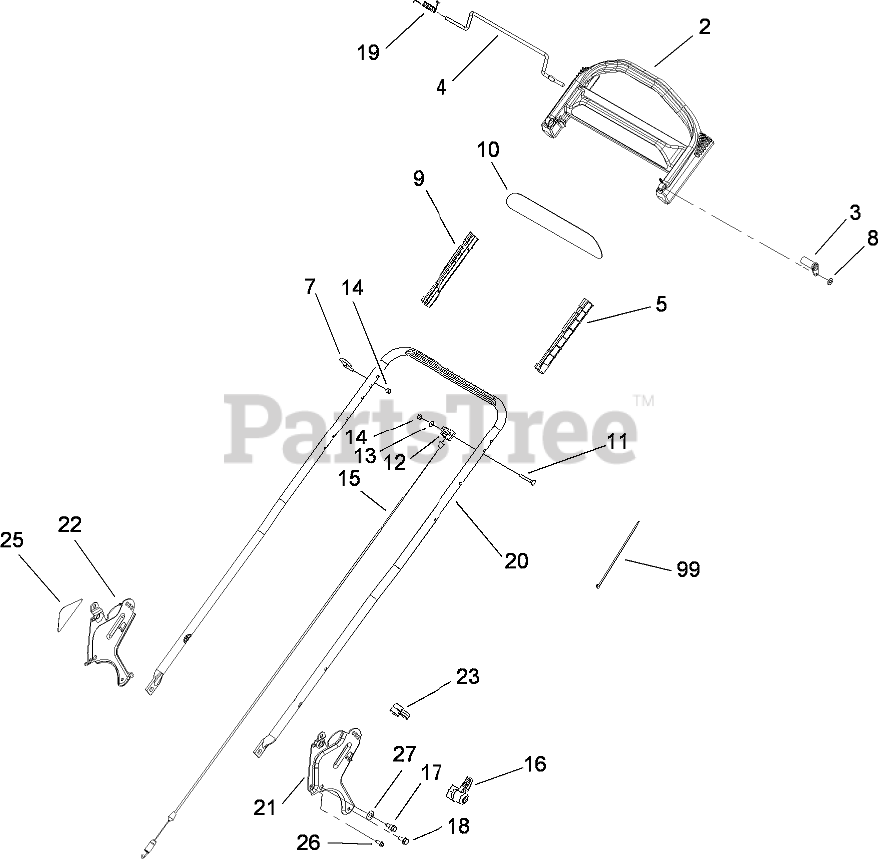

HANDLE ASSEMBLY Parts Diagram

  • Title

2

Toro 104-8678

HANDLE-CONTROL

$81.99

$

In Stock, only 1 left!

0

3

Toro 99-1589

LEVER-TRACTION

$7.49

$

In Stock, Qty 17

0

4

Toro 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$16.99

$

In Stock, Qty 7

0

5

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 1 left!

0

7

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 18

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, Qty 8

0

10

Toro 110-7056

DECAL-HANDLE

$19.99

$

Usually ships in 3-6 days

0

11

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 5

0

12

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 20+

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

15

Toro 108-8158

CABLE-TRACTION

$41.99

$

In Stock, Qty 16

0

16

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$10.99

$

In Stock, only 1 left!

0

17

Toro 115-1958

BOLT-SHOULDER

$5.49

$

In Stock, Qty 10

0

18

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

19

Toro 104-8690

Spring-Torsion
(Superseded to 136-7166)

$2.99

$

In Stock, Qty 20+

0

20

Toro 115-1300-05

HANDLE
(Superseded to 121-9167-05)

$95.99

$

Usually ships in 3-6 days

0

21

Toro 114-2671-03

BRACKET-HANDLE, LH

$26.99

$

Usually ships in 3-6 days

0

22

Toro 114-2672-03

BRACKET-HANDLE, RH

$26.99

$

Usually ships in 3-6 days

0

23

Toro 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 20+

0

25

Toro 115-2884

DECAL-INSTRUCTION

$5.49

$

Usually ships in 3-6 days

0

26

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

27

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, Qty 11

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
