20809 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

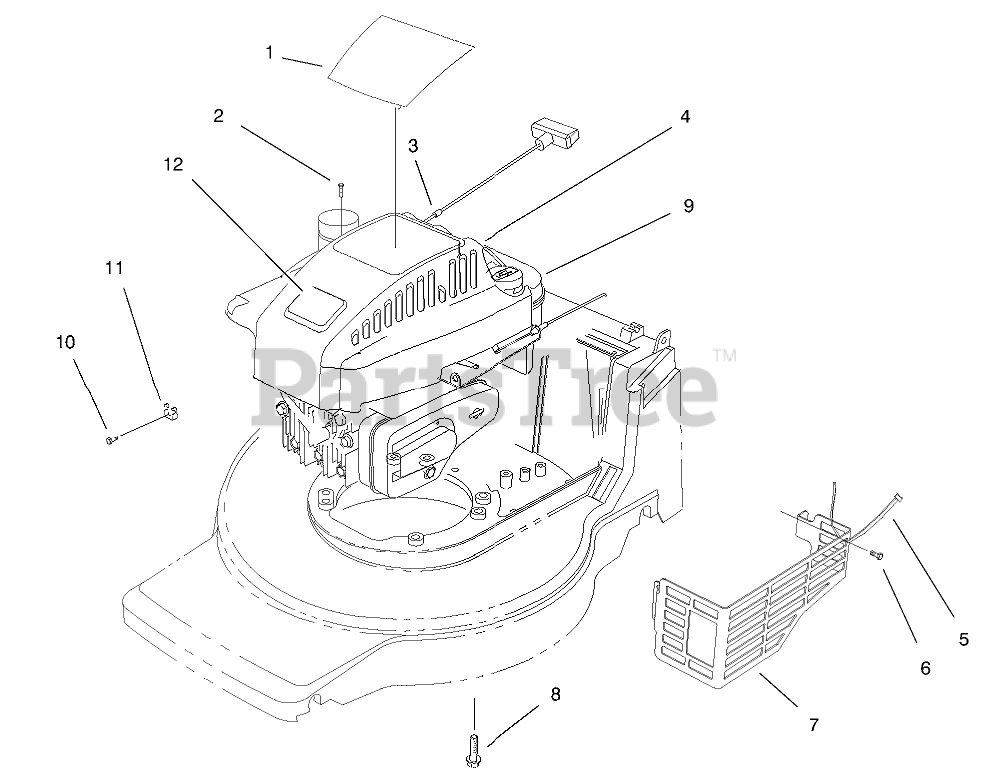

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 93-4354

DECAL - RECOIL
Usually ships same day

Not available

$

$

2

Toro Part# 32144-121

SCREW-PPH
(Superseded to 32144-88)
Usually ships in 1 day

$

$1.12

0

3
Usually ships in 5 to 8 days

$

$5.89

0

4

Toro Part# 93-0243

SHROUD-ENGINE
Usually ships in 5 to 8 days

$

$41.44

0

5
Usually ships in 1 day

$

$0.77

0

6

Toro Part# 32144-73

SCREW-HWH
(Superseded to 104-2065)
Usually ships in 1 day

$

$0.58

0

7

Toro Part# 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)
Usually ships in 5 to 8 days

$

$20.62

0

8
Usually ships in 1 day

$

$2.56

0

9

Part#

Engine-Briggs and Stratton 084232-0121-e1
Usually ships same day

Not available

$

$

10

Toro Part# 93-8470

SCREW-CLAMP
Usually ships in 5 to 8 days

$

$5.89

0

11

Toro Part# 2210-249

CLAMP-CASING
Usually ships in 5 to 8 days

$

$2.50

0

12

Toro Part# 92-2289

PLATE-LOGO
(Superseded to 98-3206)
Usually ships in 1 day

$

$1.59

0
