20821 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

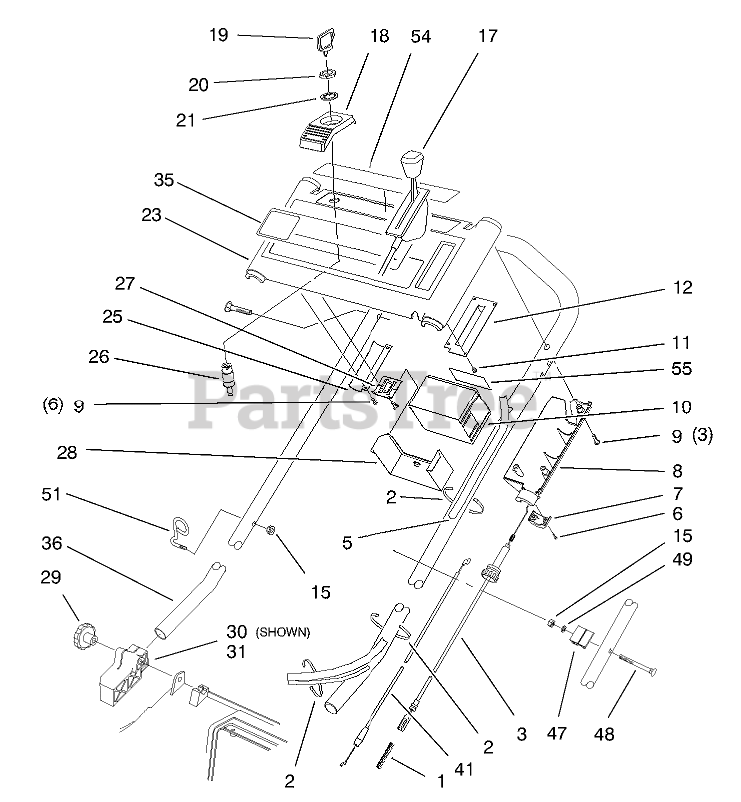

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

3

Toro 95-9649

CABLE - TRACTION

$

$

Not available

5

Toro 80-4797

WIRE HARNESS

$

$

Not available

6

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

7

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

8

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

9

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

10

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

In Stock, only 2 left!

0

11

Toro 32144-98

#6-19X.25 PLASK FORM SC

$1.99

$

Usually ships in 3-6 days

0

12

Toro 71-8040

THROTTLE PLATE

$

$

Not available

15

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

17

Toro 93-1115

CONTROL - THROTTLE

$

$

Not available

18

Toro 71-8200

IGNITION SWITCH BRACKET

$10.99

$

Usually ships in 3-6 days

0

19

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

20

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

21

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

23

Toro 94-9430

Panel Control (Incl. Ref. # 35, 54)

$

$

Not available

25

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

26

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 15

0

27

Toro 95-2739

BRACKET-BATTERY

$22.99

$

Usually ships in 3-6 days

0

28

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

29

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

30

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

31

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

35

Toro 93-7175

DECAL - PANEL KEY

$

$

Not available

36

Toro 94-4367

Handle
(Superseded to 94-4367-05)

$

$

Not available

41

Toro 93-1116

CABLE - BRAKE

$56.99

$

Usually ships in 3-6 days

0

47

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 20+

0

48

Toro 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

49

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 19

0

54

Toro 94-6028

DECAL - CONTROL PANEL

$

$

Not available

55

Toro 93-6668

DECAL-BATTERY

$18.99

$

Usually ships in 3-6 days

0

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 14

0

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days
