20827 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ELECTRIC START COMPONENTS ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

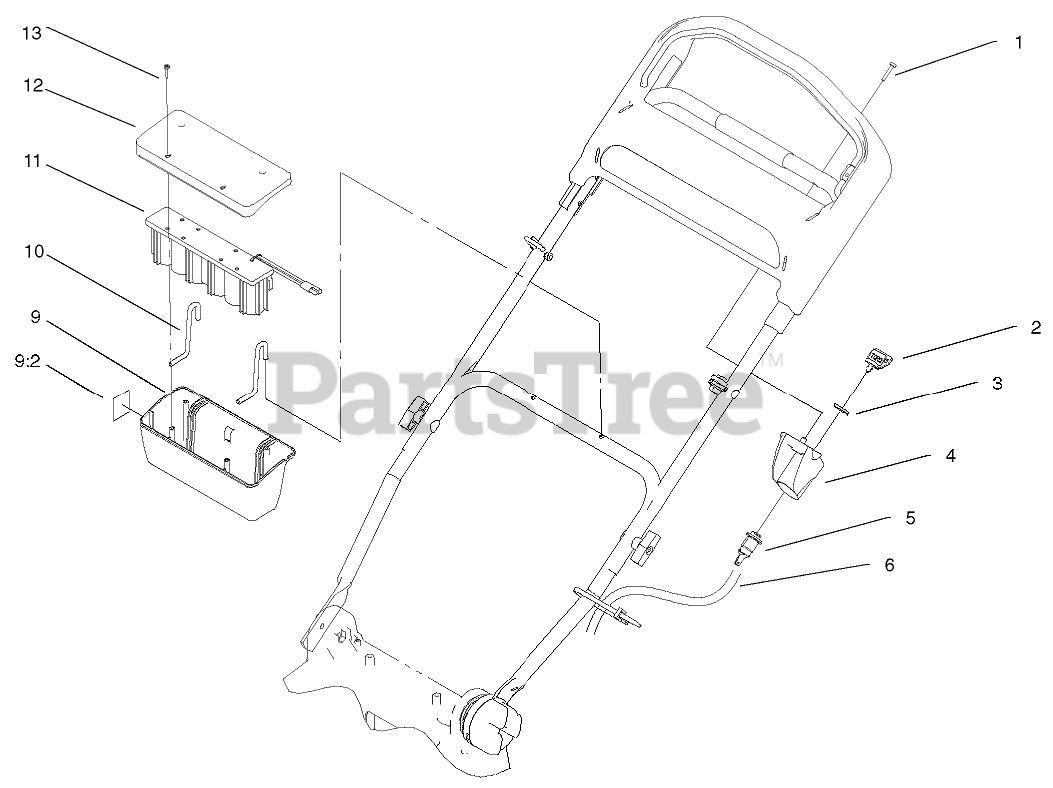

ELECTRIC START COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

2

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

3

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

4

Toro 99-6006

SWITCH-HOLDER

$60.99

$

Usually ships in 3-6 days

0

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 15

0

6

Toro 100-4356

WIRE-HARNESS

$

$

Not available

9

Toro 100-9117

BOX ASM

$

$

Not available

9:2

Toro 100-4369

DECAL-BOX, BATTERY

$

$

Not available

10

Toro 99-5299

ROD-BATTERY

$26.99

$

Usually ships in 3-6 days

0

11

Toro 99-5296

BATTERY

$

$

Not available

12

Toro 99-5298

COVER-BATTERY

$26.99

$

Usually ships in 3-6 days

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

20

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0
