20832 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

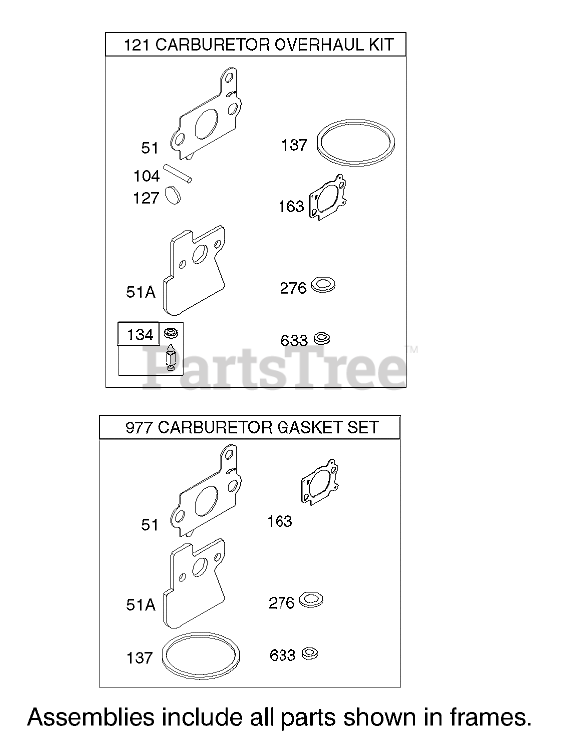

CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 5

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$14.99

$

In Stock, only 3 left!

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 5

0

121

Briggs & Stratton 692703

Carburetor Overhaul Kit
(Superseded to 792383)

$28.99

$

In Stock, Qty 10

0

127

Briggs & Stratton 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 7

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Valve Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 2 left!

0

977

Briggs & Stratton 692704

Gasket Set?Carburetor
(Superseded to 792383)

$28.99

$

In Stock, Qty 10

0
