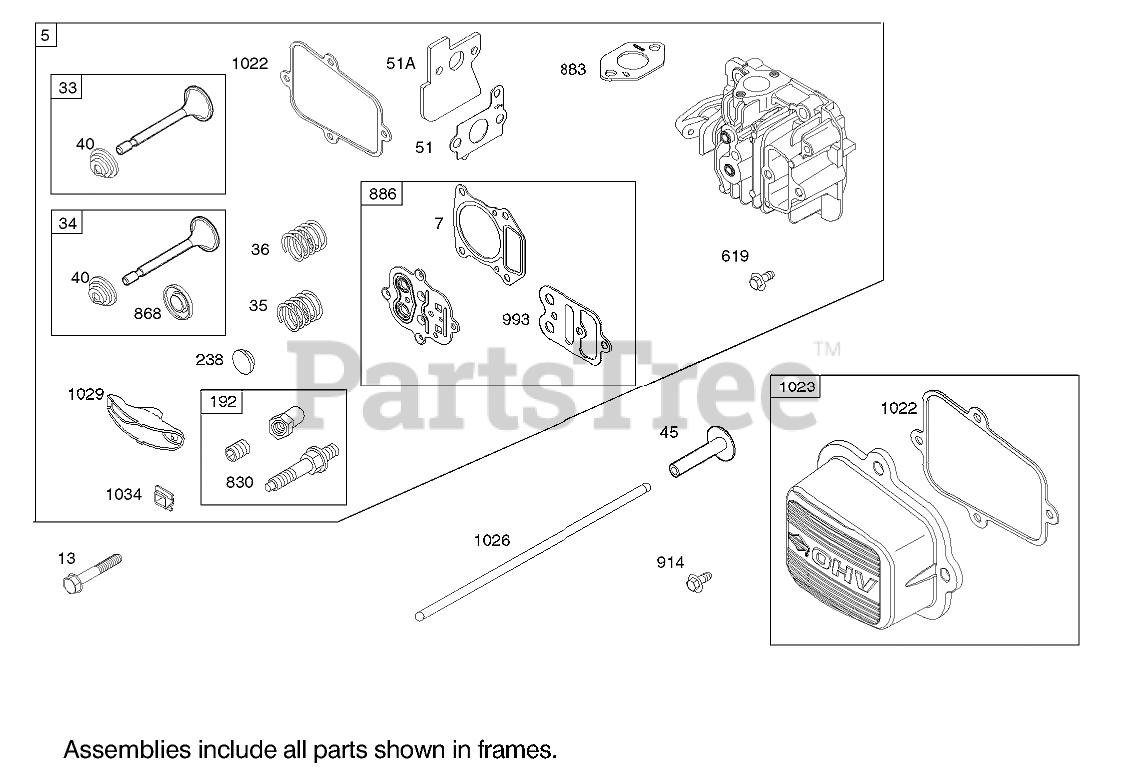

20832 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CYLINDER HEAD ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

CYLINDER HEAD ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title

5

Briggs & Stratton 695276

Head?Cylinder
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Engine Gasket Set-Ref. 358.

$9.99

$

In Stock, Qty 10

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

Note: Included in Valve Gasket Set-Ref. 1095.

$9.99

$

In Stock, Qty 10

0

13

Briggs & Stratton 691137

Screw
(Superseded to 592244)

$3.49

$

In Stock, Qty 14

0

33

Briggs & Stratton 499642

Valve-Exhaust

$35.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

$27.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 691304

Spring-Valve

$5.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 691304

Spring-Valve

$5.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

Tappet-Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, only 4 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, only 4 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, only 4 left!

0

51

Briggs & Stratton 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, only 4 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$14.99

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$14.99

$

In Stock, only 3 left!

0

192

Briggs & Stratton 694543

Adjuster-Arm, Rocker

$

$

Not available

238

Briggs & Stratton 691300

Cap-Valve

$9.49

$

In Stock, Qty 11

0

619

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 694544

Stud-Arm, Rocker

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Valve Gasket Set-Ref. 1095.

$13.99

$

In Stock, only 1 left!

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 11

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 11

0

886

Briggs & Stratton 696268

Cylinder Head Plate Gasket Kit

$

$

Not available

914

Briggs & Stratton 691127

Screw

$4.49

$

In Stock, Qty 9

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$8.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set-Ref. 1095.

$7.99

$

In Stock, Qty 10

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 10

0

1023

Briggs & Stratton 692694

Cover?Rocker

$35.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 692045

Rod?Push
(Superseded to 795444)

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Rod, Push

$9.99

$

Usually ships in 2-12 days

0
