20897 - Toro 53cm Super Bagger Walk-Behind Mower (SN: 312000001 - 312999999) (2012) SWITCH ASSEMBLY Parts Diagram

53cm Super Bagger Walk-Behind Mower

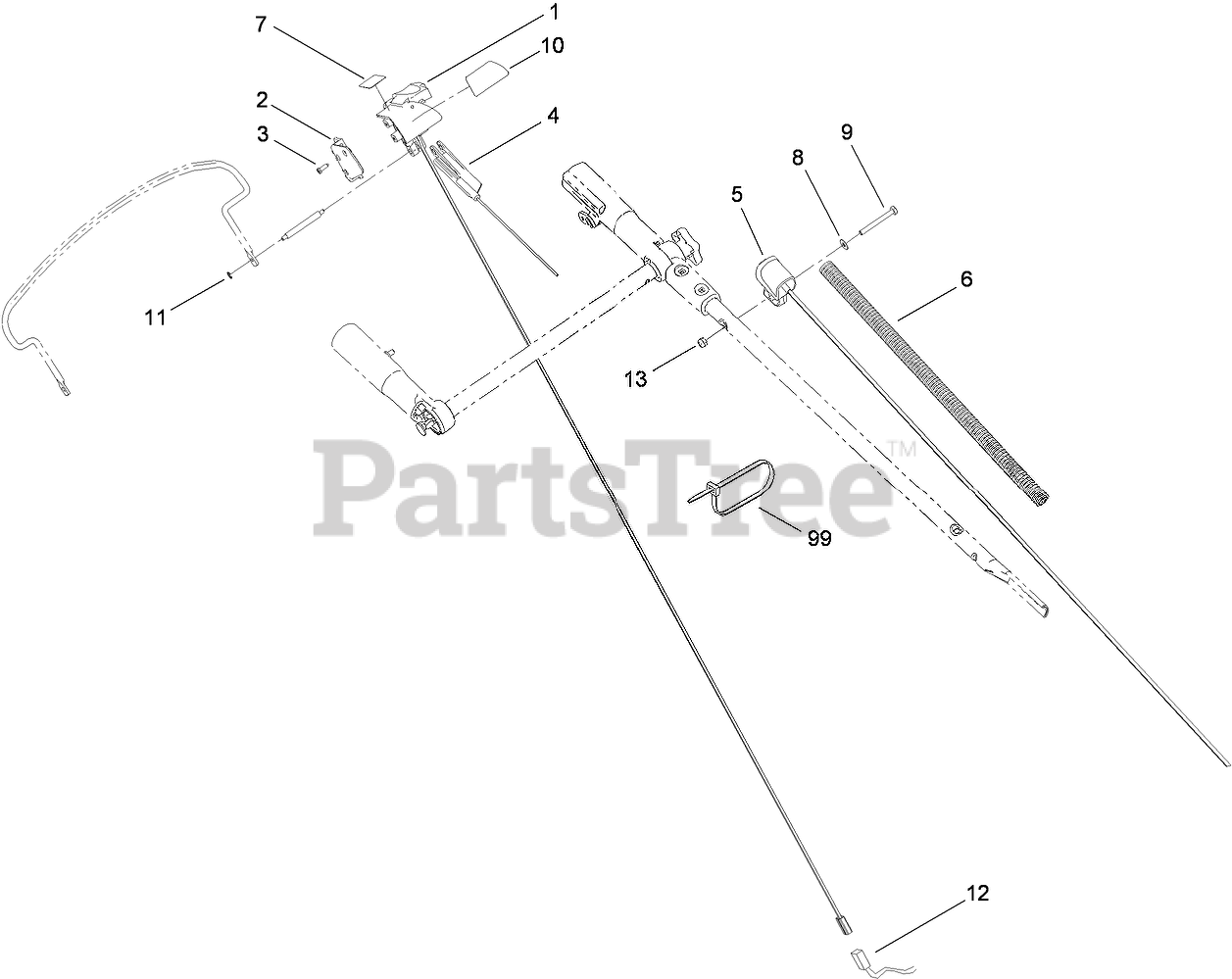

SWITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5908

SAFTEY SWITCH ASM

$46.99

$

Usually ships in 3-6 days

0

2

Toro 108-7532

COVER-SWITCH

$4.49

$

Usually ships in 3-6 days

0

3

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Toro 112-1536

CABLE-BCS

$43.99

$

In Stock, only 1 left!

0

5

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 17

0

6

Toro 119-3778

TUBE-LOOM, SPLIT

$7.99

$

Usually ships in 3-6 days

0

7

Toro 119-3796

DECAL-CONTROL, BLADE

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

10

Toro 119-3821

DECAL-BRAKE CONTROL, BLADE

$

$

Not available

11

Toro 110-1758

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

12

Toro 119-0288

HARNESS-WIRE

$13.99

$

Usually ships in 3-6 days

0

13

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

99

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
