20906 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE MODEL 122702-0182-01 Parts Diagram

48cm Rear Bagging Walk-Behind Mower

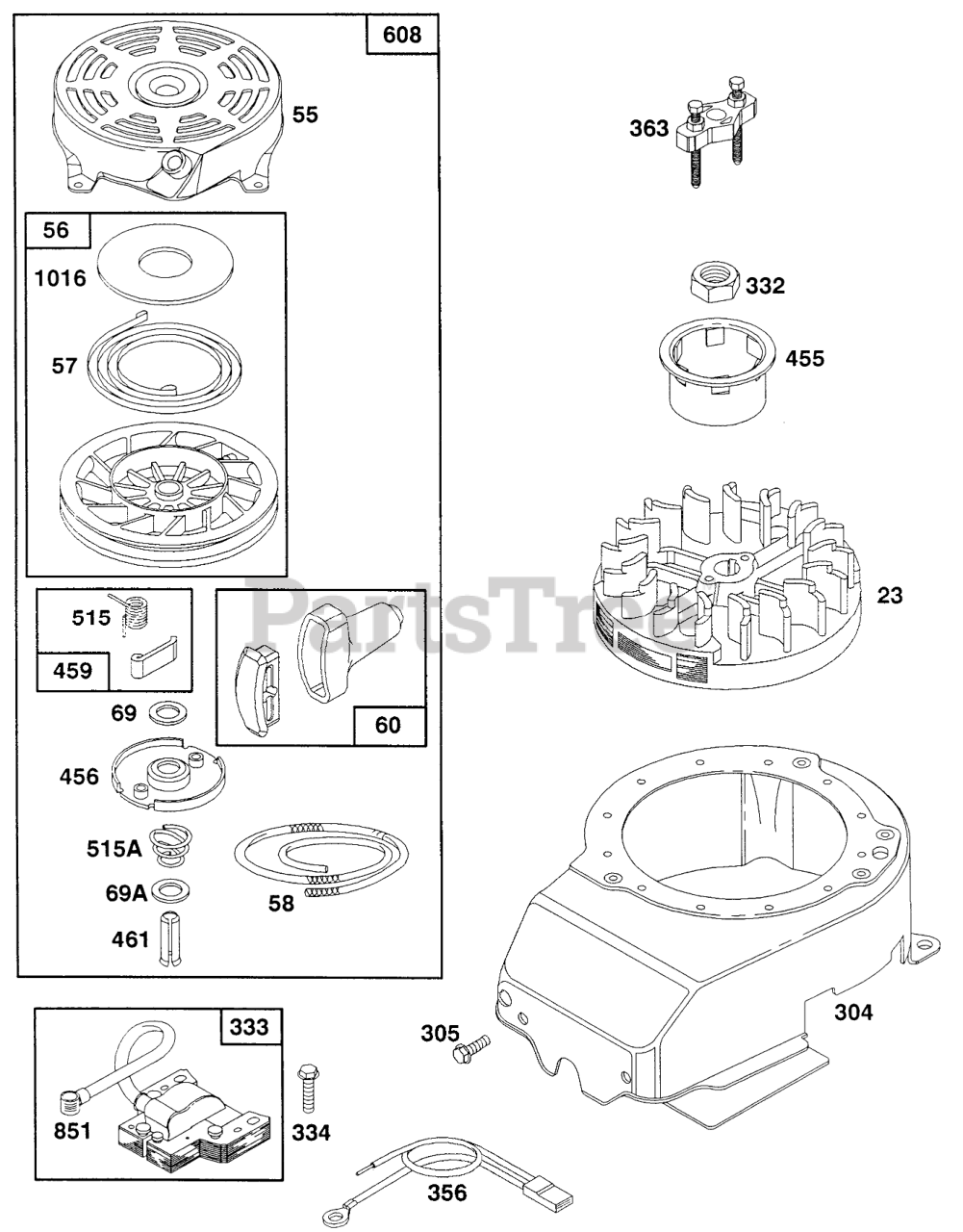

ENGINE MODEL 122702-0182-01 Parts Diagram

  • Title

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 492831

Housing-Starter

$74.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 492832

Pulley-Starter
(Superseded to 493824)

$27.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 262594

Spring-Starter
(Superseded to 491889)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 19

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

In Stock, only 3 left!

0

69

Briggs & Stratton 280973

Washer

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

Washer

$5.49

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493294

Housing-Blower

$102.99

$

In Stock, Qty 5

0

305

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 224250

Cup-Starter

$9.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

Retainer

$8.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 492833

PawI-Ratchet

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

Pin-Shaft

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262556

Spring-Pawl
(Superseded to 492833)

$4.99

$

Usually ships in 2-12 days

0

515A

Briggs & Stratton 262625

Spring

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 493295

Starter Assy.
(Superseded to 497598)

$75.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Toro 1224278

Cover-Rewind Starter

$

$

Currently unavailable
