20906 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY (MODEL NO. 20906B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

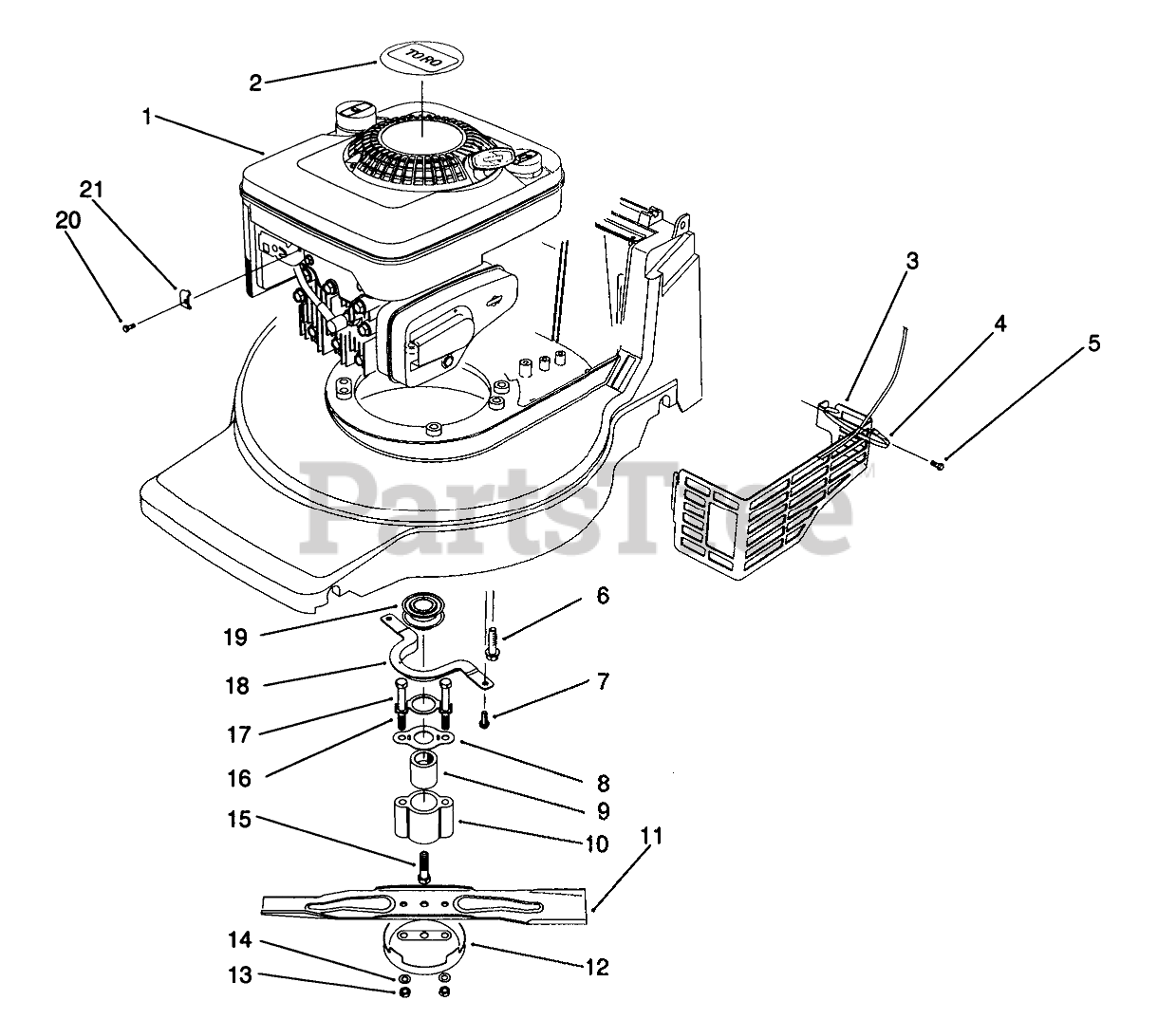

ENGINE ASSEMBLY (MODEL NO. 20906B) Parts Diagram

  • Title

1

Engine-B&S Quantum

$

$

Not available

2

Toro 71-8460

DECAL - RECOIL

$

$

Not available

3

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$25.99

$

Usually ships in 3-6 days

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

5

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

7

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 71-8840

SPRING FRICTION

$6.99

$

Usually ships in 3-6 days

0

9

Toro 71-8780

HUB

$36.99

$

Usually ships in 3-6 days

0

10

Toro 71-8790

RETAINER

$

$

Not available

11

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$79.99

$

Usually ships in 3-6 days

0

12

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 2 left!

0

13

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 71-8950

SCREW - CRANKSHAFT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 71-9220

BLADE RETAINER BRKT

$5.49

$

Usually ships in 3-6 days

0

17

Toro 71-8940

SCREW - BLADE

$6.99

$

Usually ships in 3-6 days

0

18

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

19

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

20

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

21

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0
