20911 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 010000001 - 019999999) (1991) RECOIL ASSEMBLY (MODEL NO. 47PL0-6) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

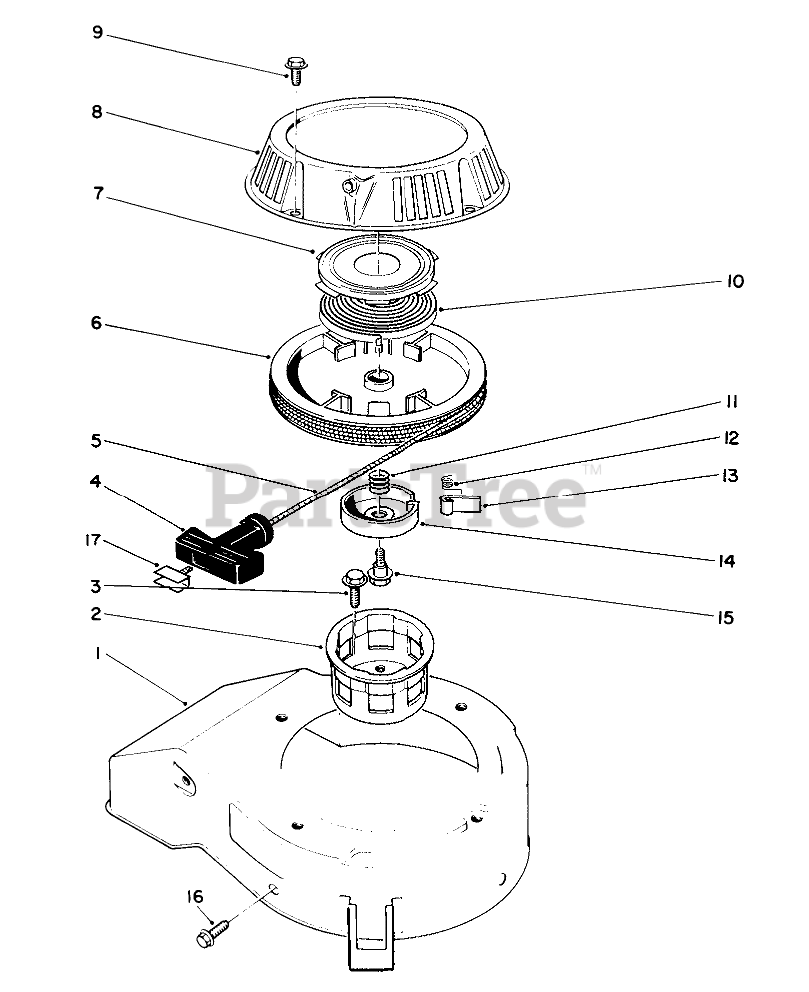

RECOIL ASSEMBLY (MODEL NO. 47PL0-6) Parts Diagram

  • Title

1

Toro 81-2070

COVER

$

$

Not available

2

Toro 81-1290

CUP - STARTER

$21.99

$

Usually ships in 3-6 days

0

3

Toro 81-1300

BOLT

$7.99

$

Usually ships in 3-6 days

0

4

Toro 81-1630

HANDLE-RECOIL

$18.99

$

In Stock, Qty 6

0

5

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$30.99

$

In Stock, only 4 left!

0

6

Toro 81-1210

REEL

$49.99

$

In Stock, only 3 left!

0

7

Retainer Cup-Recoil Spring

$

$

Not available

8

Toro 81-2090

CASE

$

$

Not available

9

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

10

Spring-Recoil

$

$

Not available

11

Toro 81-1240

SPRING

$8.99

$

In Stock, only 2 left!

0

12

Toro 81-1220

SPRING

$

$

Not available

13

Toro 81-1230

DOG

$

$

Not available

14

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

15

Toro 81-1260

BOLT

$

$

Not available

16

Toro 53-1340

BOLT

$

$

Not available

17

Toro 81-5760

Insert Handle

$

$

Not available

Toro 81-2300

Spring & Retainer (Incl. Ref. #7 & 10)

$39.99

$

Usually ships in 3-6 days

0

Toro 81-5480

Starter Assembly (Incl. Ref. #4-8, & 10-15)

$300.99

$

Usually ships in 3-6 days

0
