20913 - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 099000001 - 099999999) (1999) DECK ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

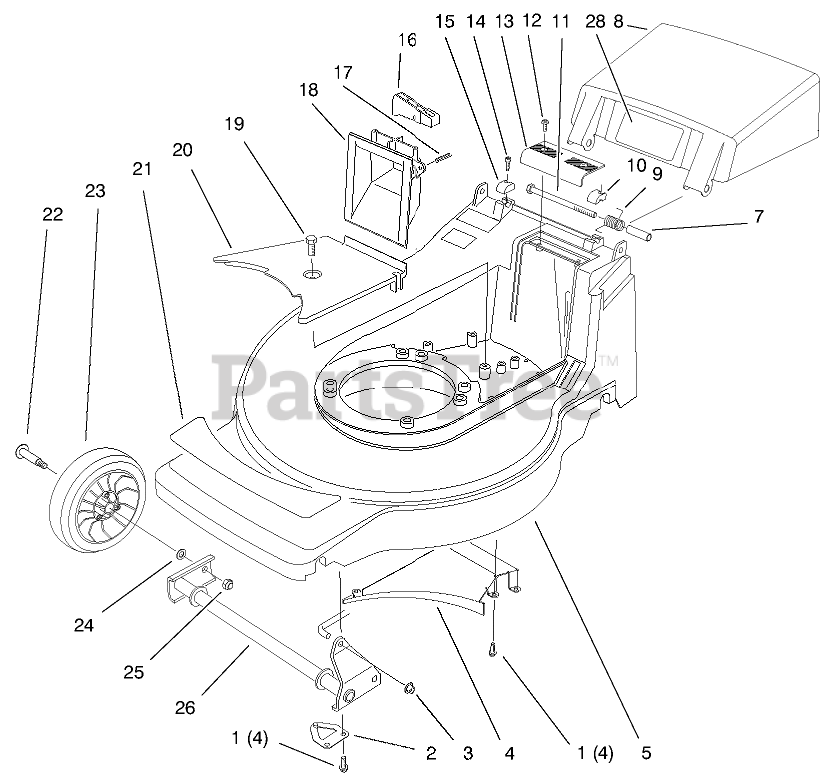

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Toro 71-8830

SHAFT RETAINER ASM

$7.49

$

Usually ships in 3-6 days

0

3

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, Qty 16

0

4

Toro 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)

$

$

Not available

5

Toro 16-5979

HOUSING W/DECAL RED

$388.99

$

Usually ships in 3-6 days

0

7

Toro 71-8580

SPACER-DOOR

$2.49

$

Usually ships in 3-6 days

0

8

Toro 17-1569

Door-Discharge (Incl. Ref# 28)

$102.99

$

Usually ships in 3-6 days

0

9

Toro 71-9840

SPRING-DOOR

$12.99

$

Usually ships in 3-6 days

0

10

Toro 71-7900

CAP-HINGE BOLT, LH

$4.99

$

Usually ships in 3-6 days

0

11

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

13

Toro 71-7860

GRIP-UPPER

$

$

Not available

14

Toro 65-5210

SCREW-HSH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 71-7910

CAP-HINGE BOLT, RH

$4.99

$

Usually ships in 3-6 days

0

16

Toro 71-7930

TRIGGER - HOC

$9.99

$

Usually ships in 3-6 days

0

17

Toro 3284-5

PIN-SPIRAL

$

$

Not available

18

Toro 71-7870

GRIP - LOWER

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 71-7920

BELT COVER

$

$

Not available

21

Toro 71-9860

DECAL - DECK 48 CM

$

$

Not available

22

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 6

0

23

Toro 92-9591

WHEEL ASM

$23.99

$

In Stock, only 2 left!

0

24

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 603773

NUT

$2.99

$

In Stock, Qty 20+

0

26

Toro 71-7820

FRONT PIVOT WA

$201.99

$

Usually ships in 3-6 days

0

28

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0
