20927 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

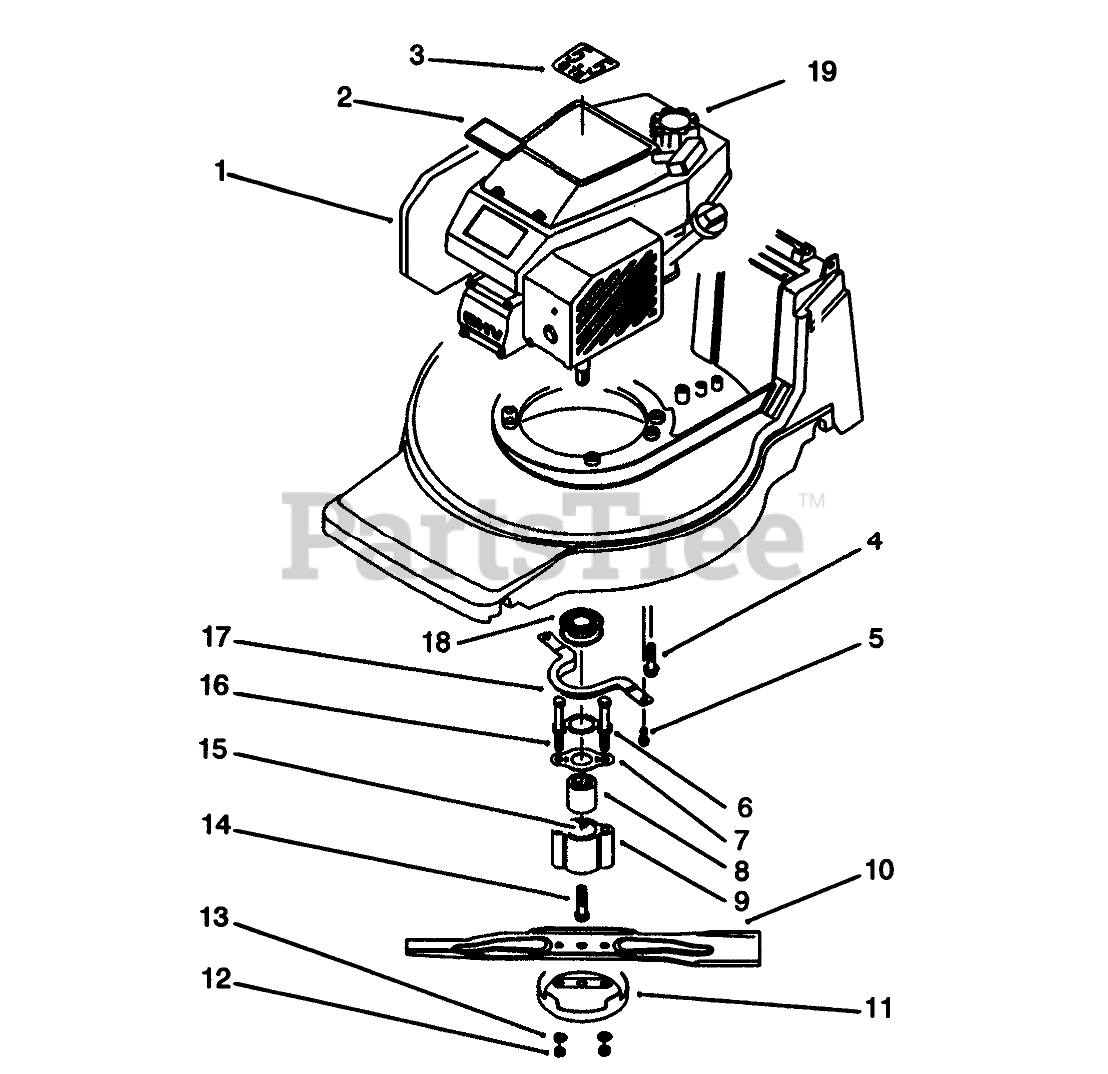

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-8950

ENG ASM-GTS150 KEY/NC

$

$

Not available

2

Toro 76-4710

TORO LOGO PLATE

$

$

Not available

3

Toro 80-4800

DECAL - ENGINE

$

$

Not available

4

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-9220

BLADE RETAINER BRKT

$5.49

$

Usually ships in 3-6 days

0

7

Toro 71-8840

SPRING FRICTION

$6.99

$

Usually ships in 3-6 days

0

8

Toro 71-8780

HUB

$36.99

$

Usually ships in 3-6 days

0

9

Toro 71-8790

RETAINER

$

$

Not available

10

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$79.99

$

Usually ships in 3-6 days

0

11

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

12

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

13

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Toro 71-8950

SCREW - CRANKSHAFT

$8.99

$

Usually ships in 3-6 days

0

15

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

16

Toro 71-8940

SCREW - BLADE

$6.99

$

Usually ships in 3-6 days

0

17

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

18

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

19

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0
