20928 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) S. P. HANDLE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

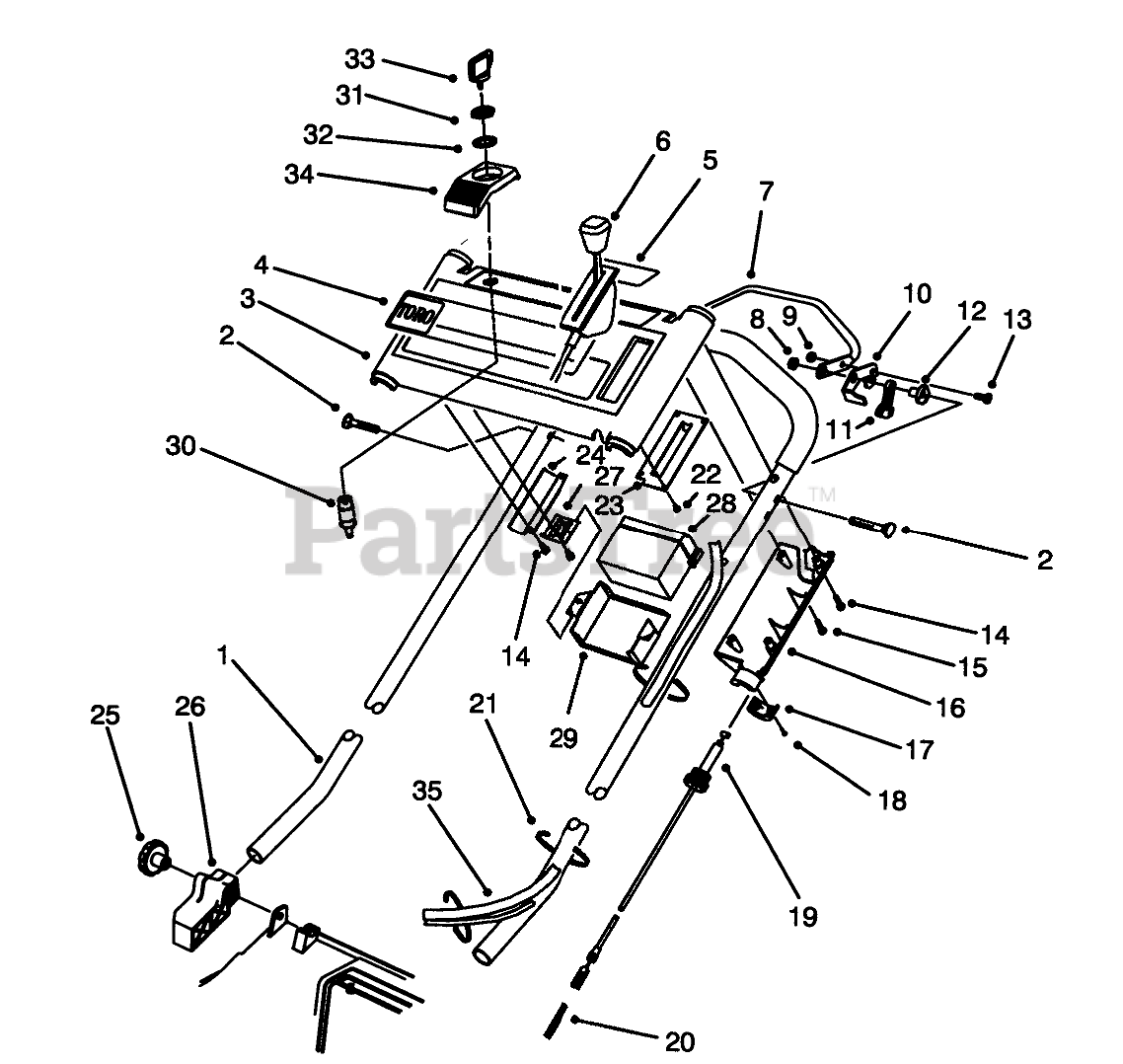

S. P. HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 71-9021

HANDLE (DIPPED)

$

$

Not available

2

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 8

0

3

Toro 16-6959

Panel-Control (Incl Ref. #4, & 5)

$

$

Not available

4

Toro 71-9864

DECAL - PANEL KEY

$

$

Not available

5

Toro 92-9088

DECAL - PANEL

$

$

Not available

6

Toro 71-8393

THROTTLE CONTROL

$

$

Not available

7

Toro 46-9900

CONTROL BAR

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

11

Toro 46-5520

LEVER-TRACTION

$

$

Not available

12

Toro 66-0330

SPACER-SUPPORT

$6.99

$

Usually ships in 3-6 days

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

14

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

15

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

16

Toro 71-7680

Cover-Throttle Lower
(Superseded to 93-0339)

$

$

Not available

17

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

18

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

19

Toro 71-8110

TRACTION CABLE

$55.99

$

Usually ships in 3-6 days

0

20

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

22

Toro 32144-98

#6-19X.25 PLASK FORM SC

$1.99

$

Usually ships in 3-6 days

0

23

Toro 71-8040

THROTTLE PLATE

$

$

Not available

24

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

25

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

26

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

27

Toro 71-8280

BATTERY BRACKET

$11.99

$

Usually ships in 3-6 days

0

28

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

In Stock, only 2 left!

0

29

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

30

Toro 46-5780

Switch-Starter (Incl.Ref.#31,&32)

$29.99

$

In Stock, Qty 15

0

31

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 19

0

32

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 14

0

33

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

34

Toro 71-8200

IGNITION SWITCH BRACKET

$10.99

$

Usually ships in 3-6 days

0

35

Toro 80-4791

Harness-Wire
(Superseded to 80-4794)

$

$

Not available

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0
