20977 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 313000001 - 313999999) (2013) SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

76cm TimeMaster Walk-Behind Mower

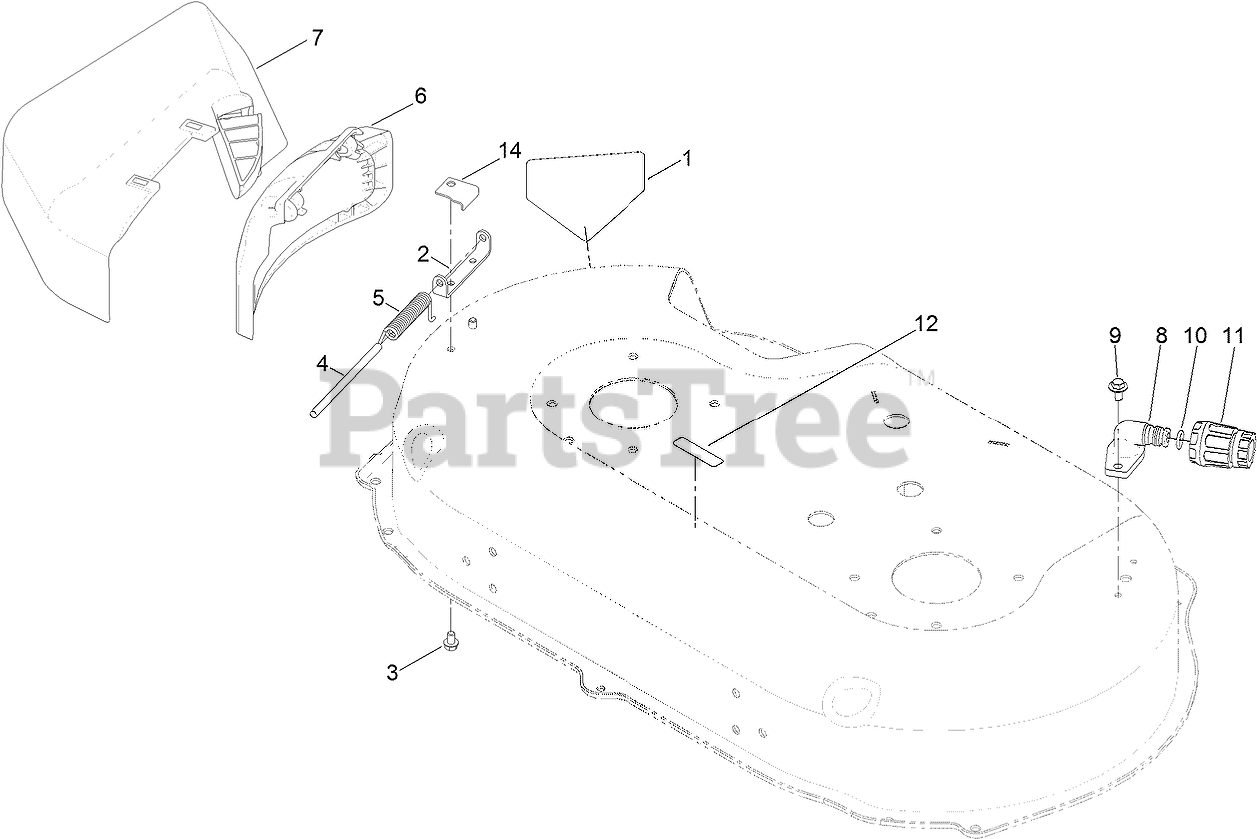

SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-8760

DECAL-DANGER

$10.99

$

In Stock, Qty 5

0

2

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 13

0

3

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

5

Toro 121-5843

SPRING-TORSION, COVER

$5.49

$

Usually ships in 3-6 days

0

6

Toro 121-9197

DEFLECTOR-SIDE
(Superseded to 125-5091)

$14.99

$

In Stock, only 2 left!

0

7

Toro 125-5084

SIDE DISCHARGE CHUTE ASM
(Superseded to 127-6874)

$30.99

$

Usually ships in 3-6 days

0

8

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 17

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 18

0

11

Toro 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 20+

0

12

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, Qty 5

0

14

Toro 121-5842

PLATE-SPRING

$5.99

$

Usually ships in 3-6 days

0
