20990 - Toro 53cm Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) MAIN FRAME ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

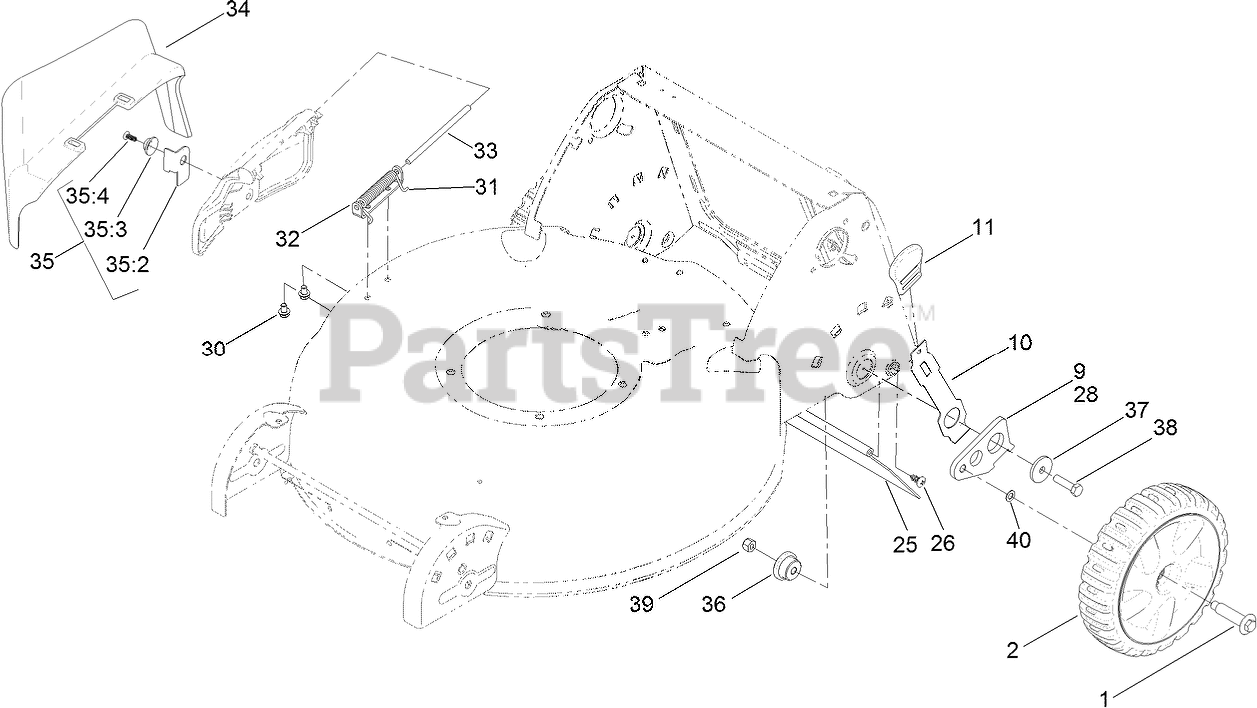

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 117-5995

8 INCH WHEEL AND TIRE ASM

$40.99

$

Usually ships in 3-6 days

0

9

Toro 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

10

Toro 110-9445

ARM-SPRING, REAR

$11.99

$

In Stock, only 3 left!

0

11

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

25

Toro 120-7010

SHIELD-TRAILING

$39.99

$

In Stock, Qty 16

0

26

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

28

Toro 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 4 left!

0

30

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

31

Toro 99-5293

SPRING-TORSION

$9.99

$

In Stock, Qty 20+

0

32

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, Qty 13

0

33

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 20+

0

34

Toro 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 17

0

35

Toro 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, Qty 5

0

35:2

Toro 107-0795

LATCH-DOOR

$1.18

$

In Stock, only 1 left!

0

35:3

Toro 107-7456

CAP-DOOR
(Superseded to 138-3242)

$1.99

$

In Stock, only 2 left!

0

35:4

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 3 left!

0

36

Toro 105-1818

Bushing-Mount, HOC

$4.99

$

In Stock, Qty 8

0

37

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0

38

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0
