20996 - Toro 53cm Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

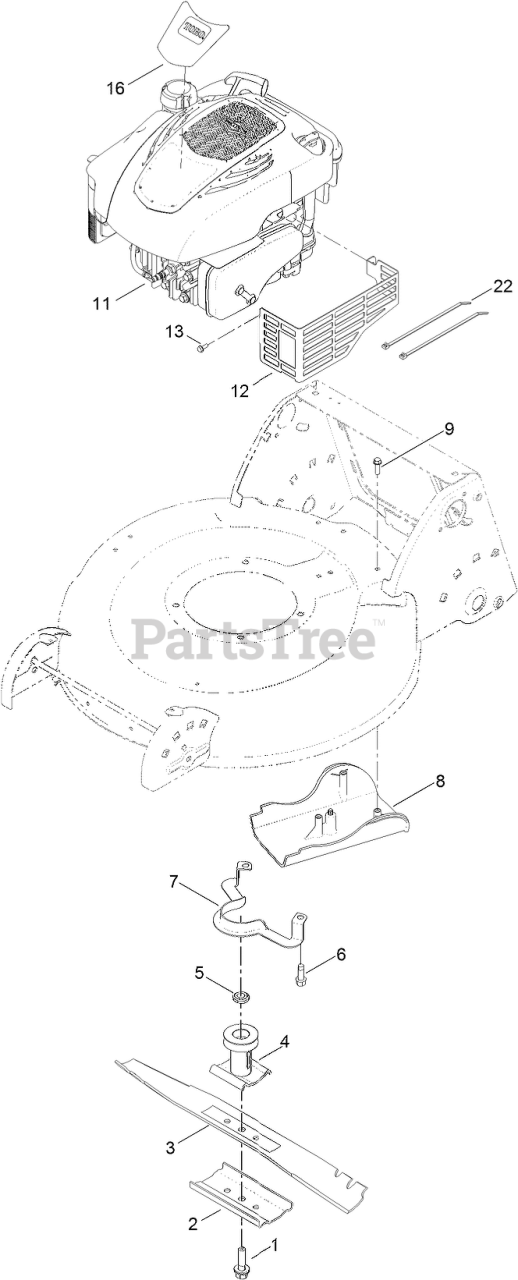

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Toro 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-S)

$20.99

$

In Stock, only 3 left!

0

4

Toro 106-3987

DRIVER-BLADE

$30.99

$

In Stock, Qty 20+

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, Qty 7

0

8

Toro 110-1832

COVER-BELT

$15.99

$

In Stock, Qty 6

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

11

ENGINE-BRIGGS 126M020119F1

Note: Not serviced separately

$

$

Not available

11

ENGINE-BRIGGS 126M020119F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Toro 104-7577-03

SHIELD-MUFFLER

$25.99

$

Usually ships in 3-6 days

0

13

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Toro 120-1935

DECAL-SHROUD

$7.49

$

Usually ships in 3-6 days

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
