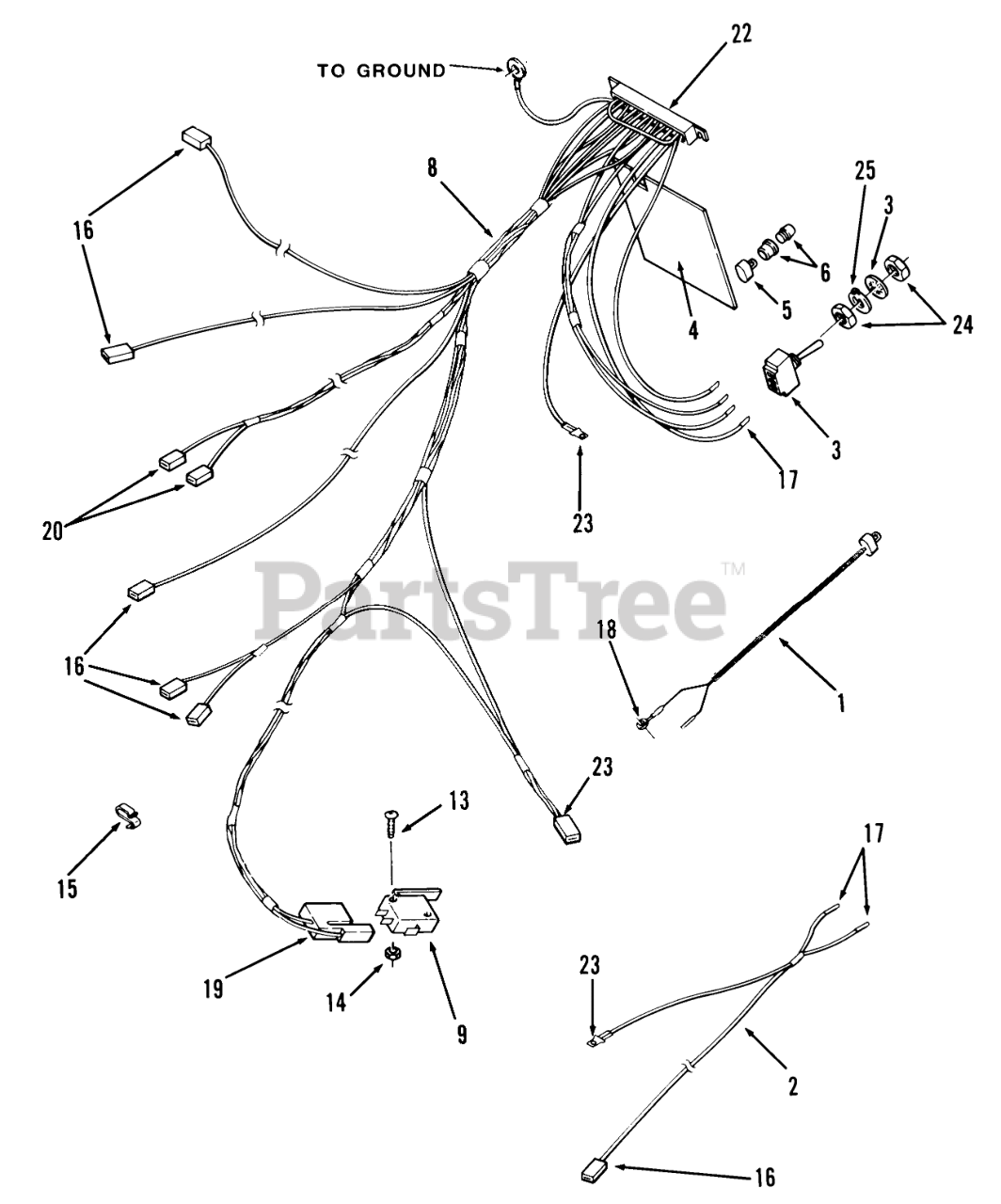

21-08K802 (308-8) - Toro Lawn Tractor (1986) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title

3

Toro 111353

SWITCH TOGGLE

$

$

Not available

4

Toro 110999

P.C. Board (includes item 2)
(Superseded to 115207)

$

$

Not available

Toro 111000

P.C. Board w/ lights 417-s, 420 Only
(Superseded to 115207)

$

$

Not available

5

Toro 111331

LIGHT INDICATOR

$8.49

$

Usually ships in 3-6 days

0

6

Toro 111343

ASSY LENS & BUSHING

$

$

Not available

8

Toro 111347

Wiring Harness 312-s, 414-8, 416-8 Only

$

$

Not available

Toro 111348

Wiring Harness 417-s Only

$

$

Not available

Toro 111835

WIRING HARNESS

$162.99

$

Usually ships in 3-6 days

0

9

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

13

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

14

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

15

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

16

Toro 520198

Piggy-Back Connector (Part of 6)

$

$

Currently unavailable

17

Toro 111485

062 X 031 TAB RECEPT

$

$

Not available

18

Toro 518021

Ring Terminal (Part of 1)

$

$

Not available

19

Toro 111498

CONNECTOR BODY

$4.99

$

In Stock, only 3 left!

0

20

Toro 520197

Piggy-Back Connector(Part of 6)

$

$

Not available

22

Toro 111374

Molex Connector (Part of 6)

$

$

Not available

23

Toro 105312

Connector Part of 5

$

$

Currently unavailable

24

Toro 111359

NUT F/W 116796

$3.99

$

Usually ships in 3-6 days

0

25

Toro 111360

RING LOCKING

$

$

Not available

1

Toro 111345

LIGHT INDICATOR

$

$

Not available

2

Toro 111351

ASSY WIRE INDICATOR

$

$

Not available

3

Toro 111346

SWITCH TOGGLE

$

$

Not available

Toro 111353

SWITCH TOGGLE

$

$

Not available
