21050 - Toro 43cm Electric Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) WHEEL AND AXLE ASSEMBLY Parts Diagram

43cm Electric Recycler Walk-Behind Mower

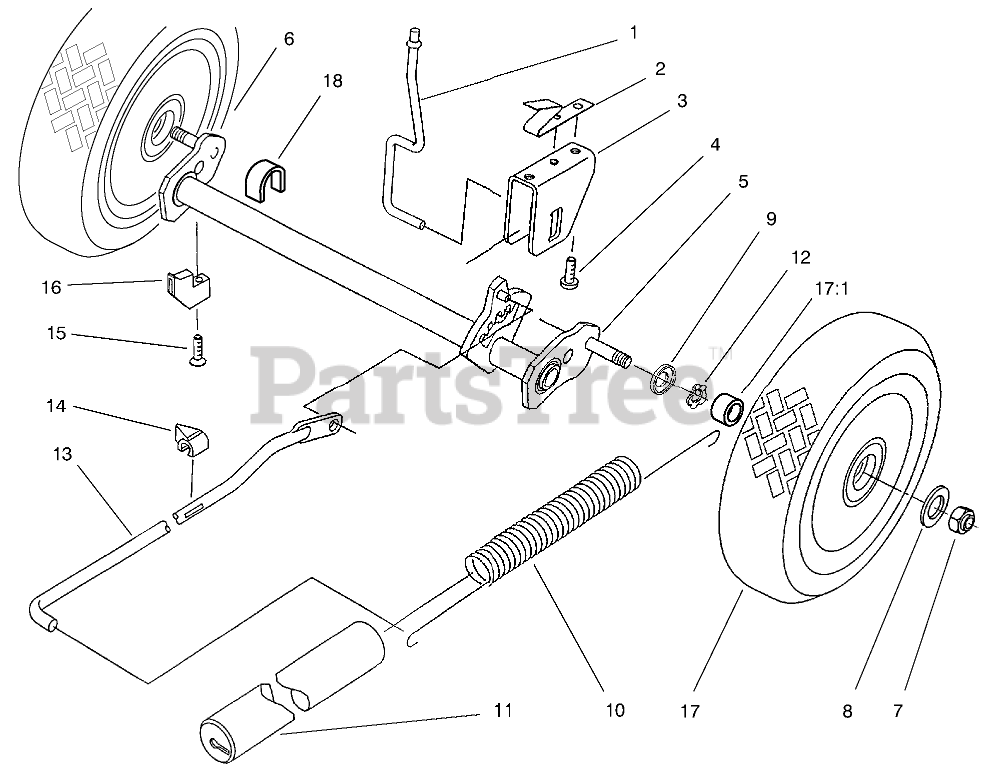

WHEEL AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3232

ROD-TRIGGER

$

$

Not available

2

Toro 93-4062

SPRING-RETURN, TRIGGER

$5.49

$

Usually ships in 3-6 days

0

3

Toro 93-4066

SADDLE-HEIGHT OF CUT

$

$

Not available

4

Toro 93-4095

SCREW-RH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 93-4079

AXLE-REAR

$93.99

$

Usually ships in 3-6 days

0

6

Toro 93-8492

WHEEL-REAR

$52.99

$

In Stock, only 1 left!

0

6:1

Toro 93-7023

BUSHING

Note: Not illustrated

$3.99

$

Usually ships in 3-6 days

0

7

Toro 93-4098

NUT-HH

$2.99

$

Usually ships in 3-6 days

0

8

Toro 93-4097

WASHER-WHEEL

$1.49

$

Usually ships in 3-6 days

0

9

Toro 94-6723

CAP-AXLE, REAR

$

$

Not available

10

Toro 71-7740

SPRING-COUNTERBALANCE

$41.99

$

Usually ships in 3-6 days

0

11

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

12

Toro 94-6722

WASHER-WAVE

$

$

Not available

13

Toro 93-4065

ROD-LINK

$

$

Not available

14

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$8.49

$

Usually ships in 3-6 days

0

15

Toro 93-3793

SCREW-RETAINER

$

$

Not available

16

Toro 98-3216

RETAINER-AXLE

$

$

Not available

17

Toro 94-3313

WHEEL-SMART, REAR

$

$

Not available

17:1

Toro 93-7023

BUSHING

$3.99

$

Usually ships in 3-6 days

0

18

Toro 98-3226

CAP-AXLE, REAR

$

$

Not available
